AirSep Eclipse 5 20631679 User Manual
Page 64
Personal Ambulatory Oxygen System Provider Technical Manual
64
PN 20631679 Rev C
5. Cut the cable ties to the braided tubes that connect into the ATF pressure and vacuum ports as shown
in Figure 32. Disconnect the braided tubes.
5a. Install port caps.
6. Unscrew the 3 screws (M4x16 Pan Head Machine Screw, P/N 6961-416-SEQ) and remove the screws and
washers (M4 Flat washer, P/N 6985-04-SEQ) as shown below.

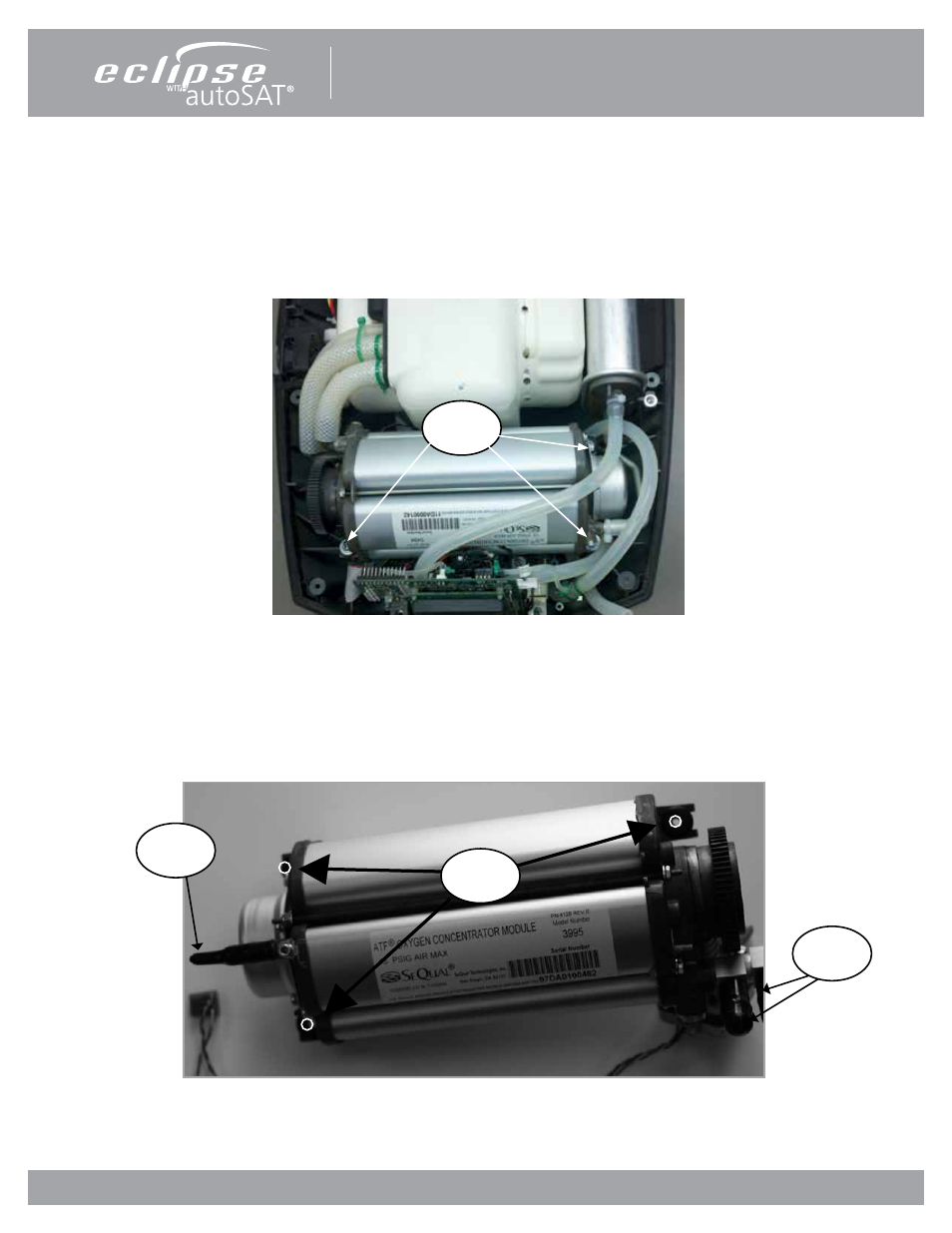

Figure 33: Remove ATF Module from Eclipse 5 Case.
7. Lift the ATF. Take off the 3 grommets. Disconnect the wire harness from the gearbox of the ATF.
8. Remove the ATF.
9. Install 3 grommets into the mounting slots on the ATF as shown below. Position the ATF into the
bottom cover but DO NOT install the mounting screws yet. Route the 16” Silicone Tube under the ATF as
shown on Figure 35 on next page.
Figure 34: ATF Module Grommet Installation
Grommet
Caps
Caps
Remove
Screws
