AirSep Eclipse 5 20631679 User Manual
Page 69
Personal Ambulatory Oxygen System Provider Technical Manual
69
PN 20631679 Rev C
3) Install the securing arm over the product tank, and locate the screw hole on the back case cover to secure the product tank.

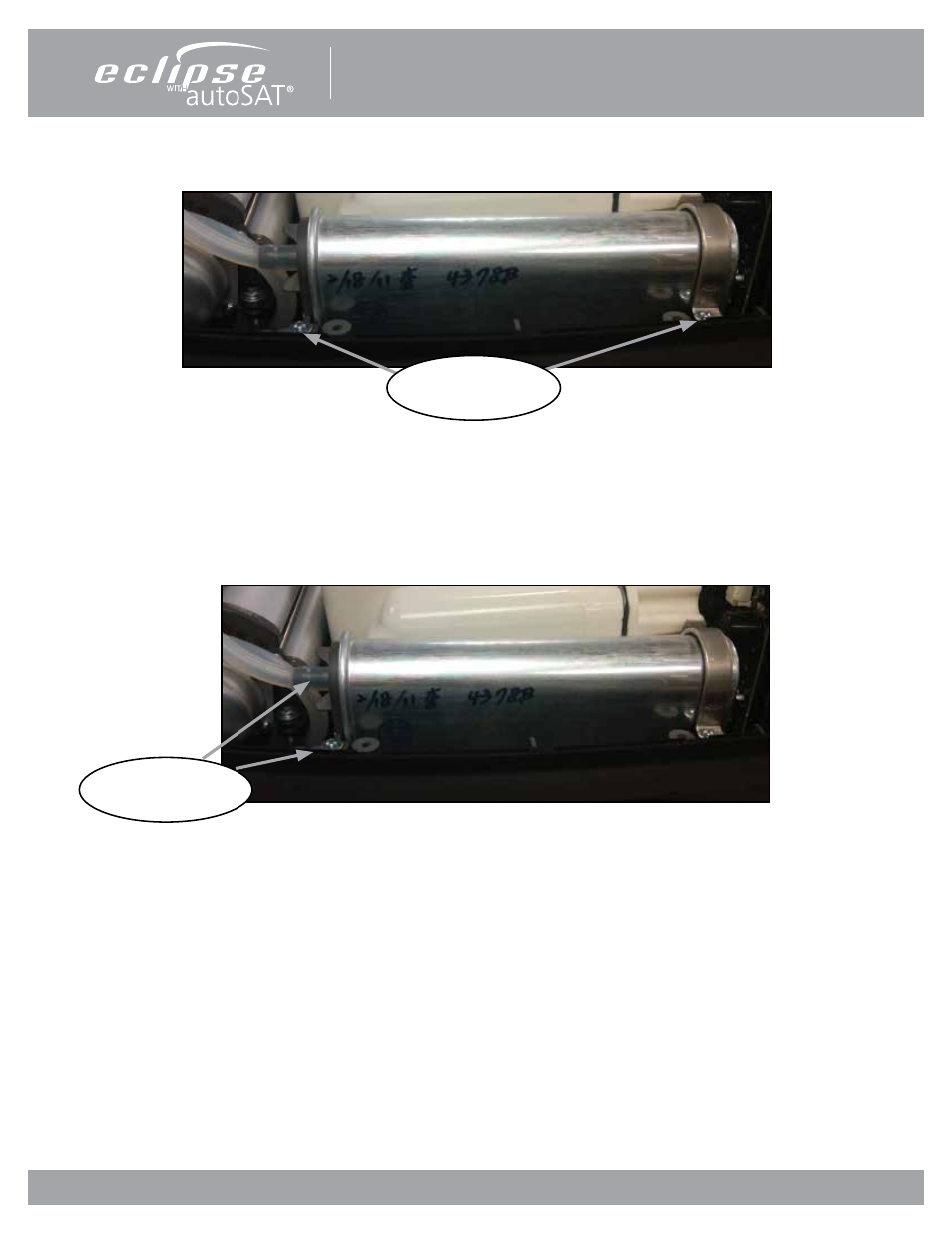

Figure 40: Install securing arms
4) Locate the correct Product Tube - remove black ATF outlet barb cap, and attach the Product Tube Assy to the ATF output
barb, secure with a cable tie. Attach the other end of the Product Tube to the Bottom port on the Product Tank. See Figure
39.
5) Connect the Output tubing to the Top port on the Product Tank and secure with cable ties. See Figure 41.
Figure 41: Connect output tubing
Add cable tie to both
top and bottom parts
Install securing arm
and install two screws
