OmniSTAR Demodulator Kit Installation Instructions 9
LED Diagnostics
The OmniSTAR Demodulator Kit has an onboard LED light that can assist with troubleshooting in the event of a malfunction.

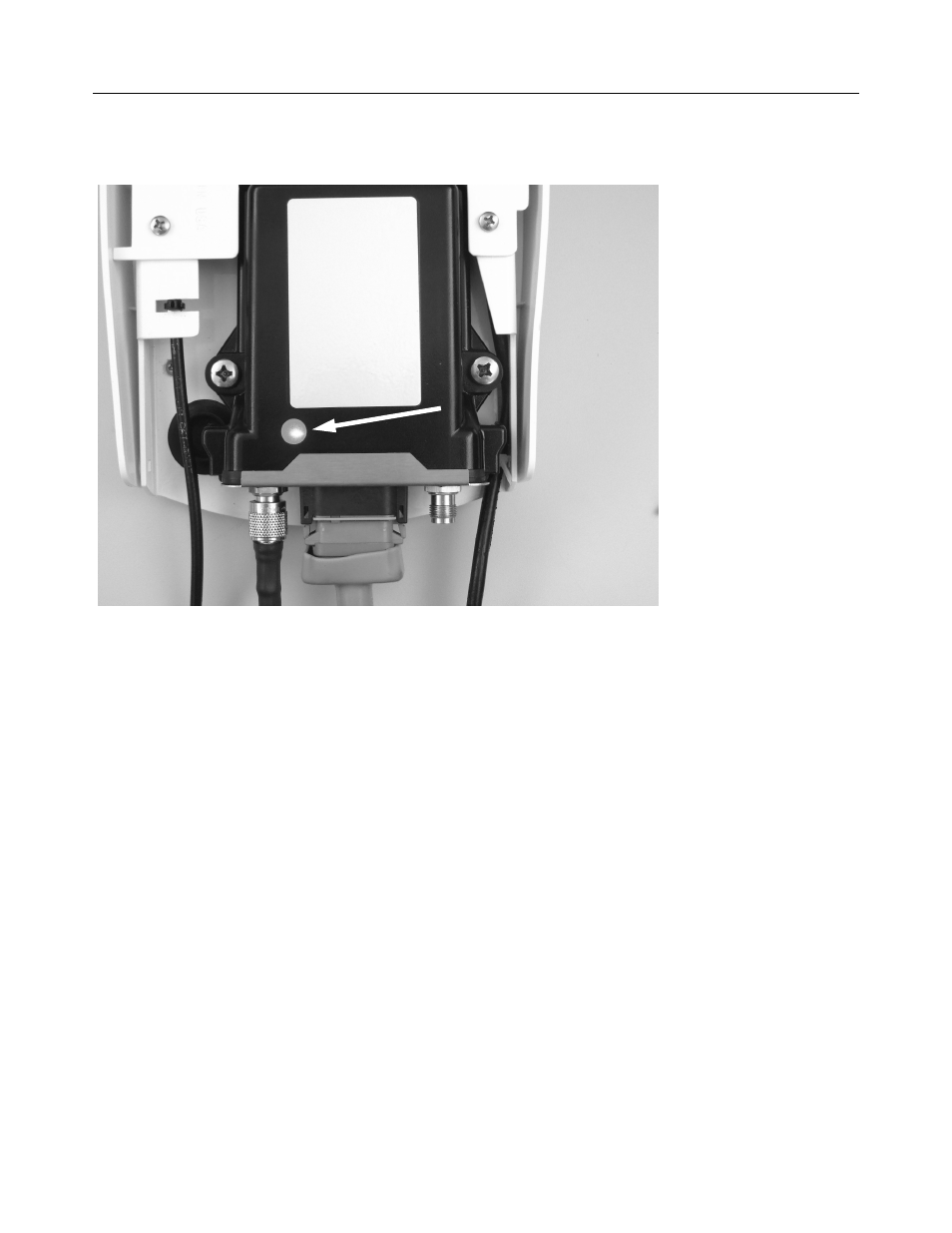

Figure 1 OmniSTAR Demodulator Diagnostic LEDs
Normal Operation
During normal operation, the LED will be illuminated green with an orange LED blinking rapidly (1-2 times/second). If the
LED is steady green with only one blink every 4-5 seconds, it means the unit is powered up but is not receiving data from the
OmniSTAR satellite. If the unit is not receiving data, verify the OmniSTAR Demodulator is set to the proper frequency for the
region of operation. Refer to your GeoSteer user manual for instructions on how to change the frequency as well as Table 1 in
this manual and the OmniSTAR website for regional frequencies.
