8 GS-450 Radio Kit Installation Instructions
19. Attach the Power and Data Extension Cable to the
EXPANSION connector of the GeoSteer Main Cable
Harness.
Note: In order for the GS-450 Radio to receive a correction signal, it must be set to the matching frequency of its intended base
station. Refer to the GeoSteer User Manual for instructions on setting the radio channel.

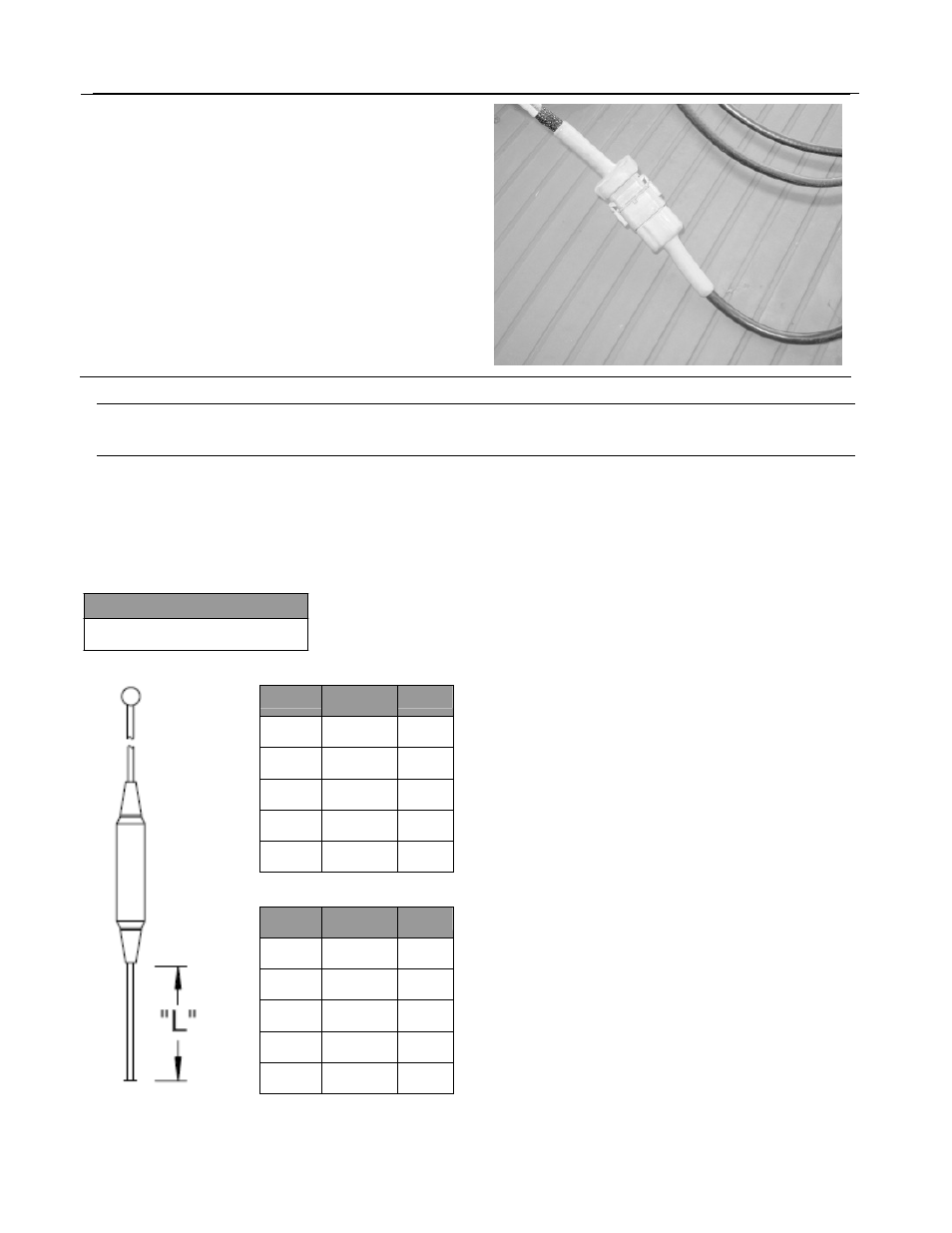

Antenna Sizing Information
Before use, the antenna may need to be cut to the proper size for the intended operation frequency. Refer to the table below for
proper antenna sizes.
Table 1-1 UHF 406-430 MHz Antennas (500-0093-02)
406-430 MHz
No Cutting Necessary
Table 1-2UHF 430-450 MHz Antennas (500-0094-02)
MHz Inches mm
430 12.750 324
435 12.188 310
440 11.625 295
445 11.000 279
450 10.563 268
Table 1-3UHF 450-470 MHz Antennas (500-0095-02)
MHz Inches mm
450 10.000 254
455 9.625 244
460 9.188 233
465 8.938 227
470 8.563 217
