GS-450 Radio Kit Installation Instructions 7

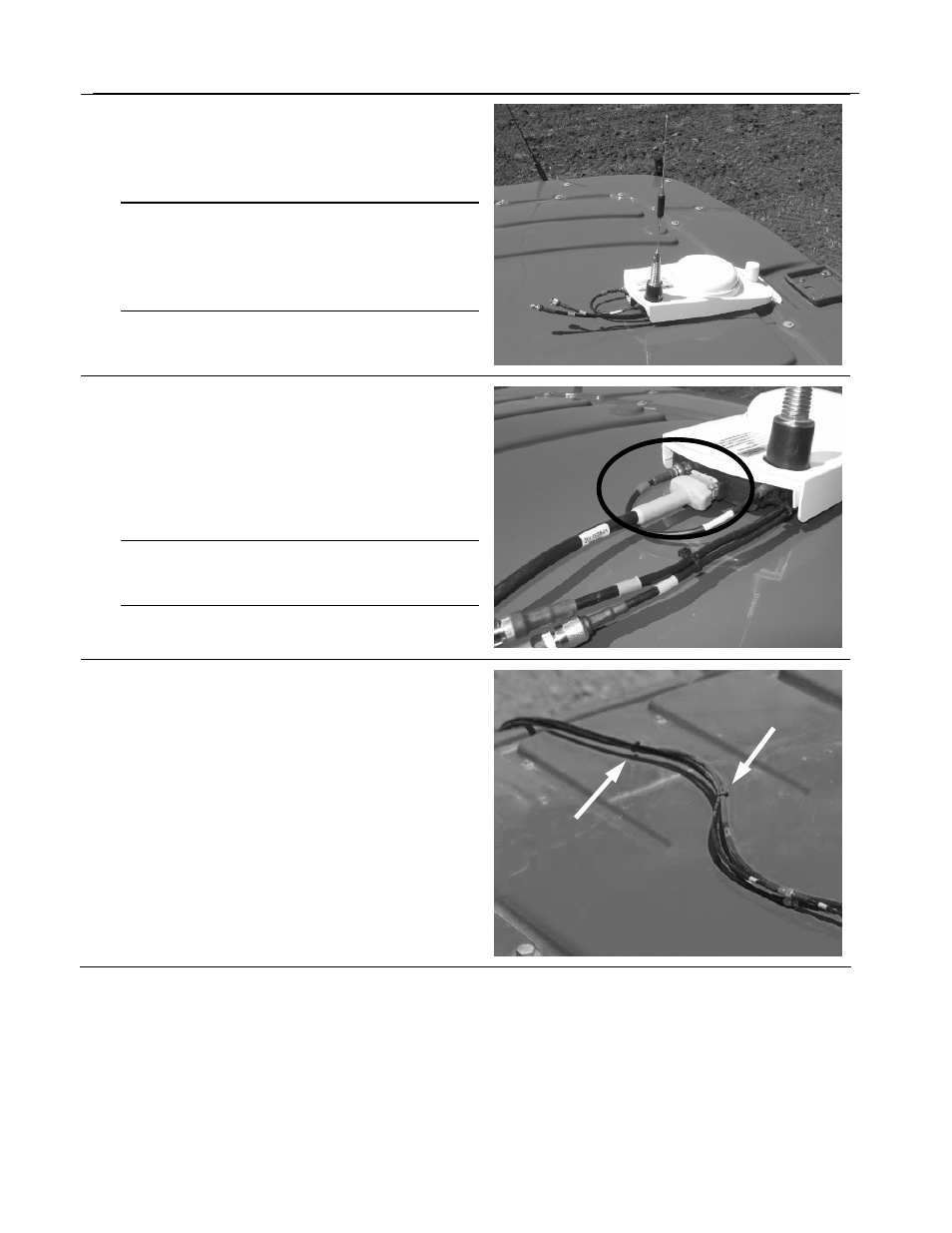

15. Attach the GeoDock assembly to the GeoDock Mounting
Plate on top of the vehicle.
Note: The GeoSteer system must always be turned off
before connecting or disconnecting cables.
Note: If this is the initial GeoSteer install, refer to the
GeoSteer installation manual for proper installation
procedures.
16. Attach the Power and Data Extension Cable (PN 201-0535-
01) to the rear of the GS-450 radio assembly. The
connectors have keys and will only engage in the correct
orientation. If the connector does not engage, check the
orientation. To avoid possible damage, never force the
connector.
Note: To disconnect the cable from the radio, press the two
side latches on the cable connector and pull away from the
radio.
17. Route Power and Data Extension Cable with the GeoSteer
coaxial cables running to the GeoSteer Control Unit.
18. Bundle the cables together every 12” (30cm) using the
cable ties provided. Use a wire cutter to trim.
