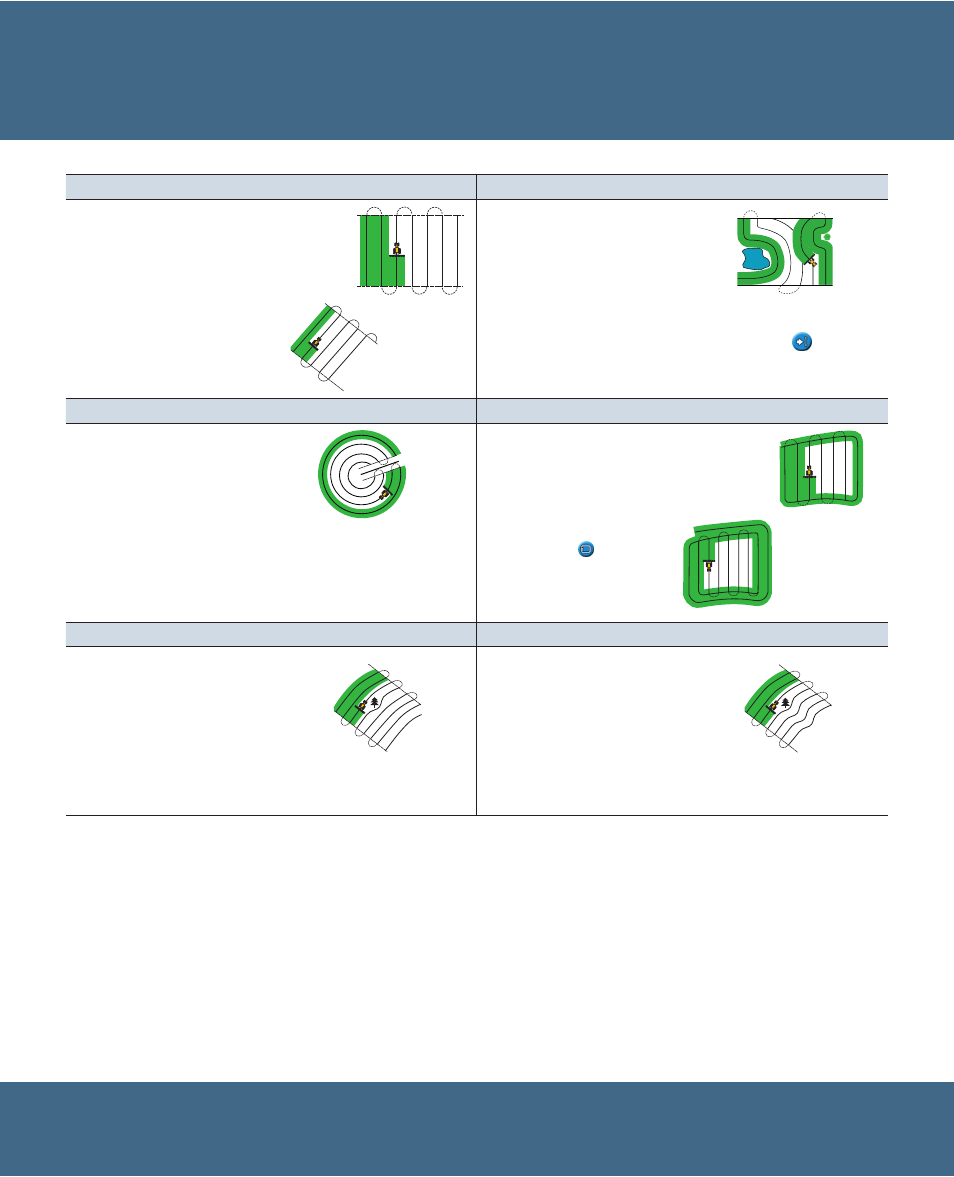

GUidAnCE pAttERnS
AB Line / A+ Line FreeForm ™
Map a straight line for guidance.
For an AB line, set the A point at the
start of the line and the B point at
the end.
For an A+ line, specify the heading
direction of the line (it defaults to the
heading of the previous AB line).
A
A
B Creates curved and straight lines for
guidance in fields of any shape by
recording the exact path you have
driven, to generate the next pass.
Ensure that you keep recording your
path, to continue receiving guidance.
You can record your path manually or let the system record it automatically
(when coverage is enabled).
When more than one path is in the area, use the Next AB icon
to toggle
between them.
Center-pivot Headland
Set the A point, drive the pivot, and
then set the B point.
For best results, follow the outermost
wheeltrack of the pivot arm.
Note - To work from the
center of the field outwards,
the initial pivot must have a
radius of at least two swath
widths and an arc length of at
least four swath widths.
A
B
Straight swaths automatically fill the
headland boundary.
Enter the number of headland circuits
you want before you start defining
the field.
Start the headland, define the
guidance line, and then return to the
start circle or press to complete
the headland.
Note - Additional headlands
are based on the first
headland circuit.
B
B
A
A
Single
headland
Multiple
headland
Identical curve Adaptive curve
Guidance is based on the initial curve.
Any deviations are ignored.
Set the A point, drive the curve, and
then set the B point.
A
B Guidance is always based on the last
pass.
Auto U-turn detection = On
Each new swath is automatically
generated when you turn.
Auto U-turn detection = Off
Set the B point at the end of each pass
to create the next swath.
B
A
For more information on how to use this product, refer to the EZ-Guide 500 Lightbar Documentation CD.
