AdVAnCEd ModE AppliCAtion USE

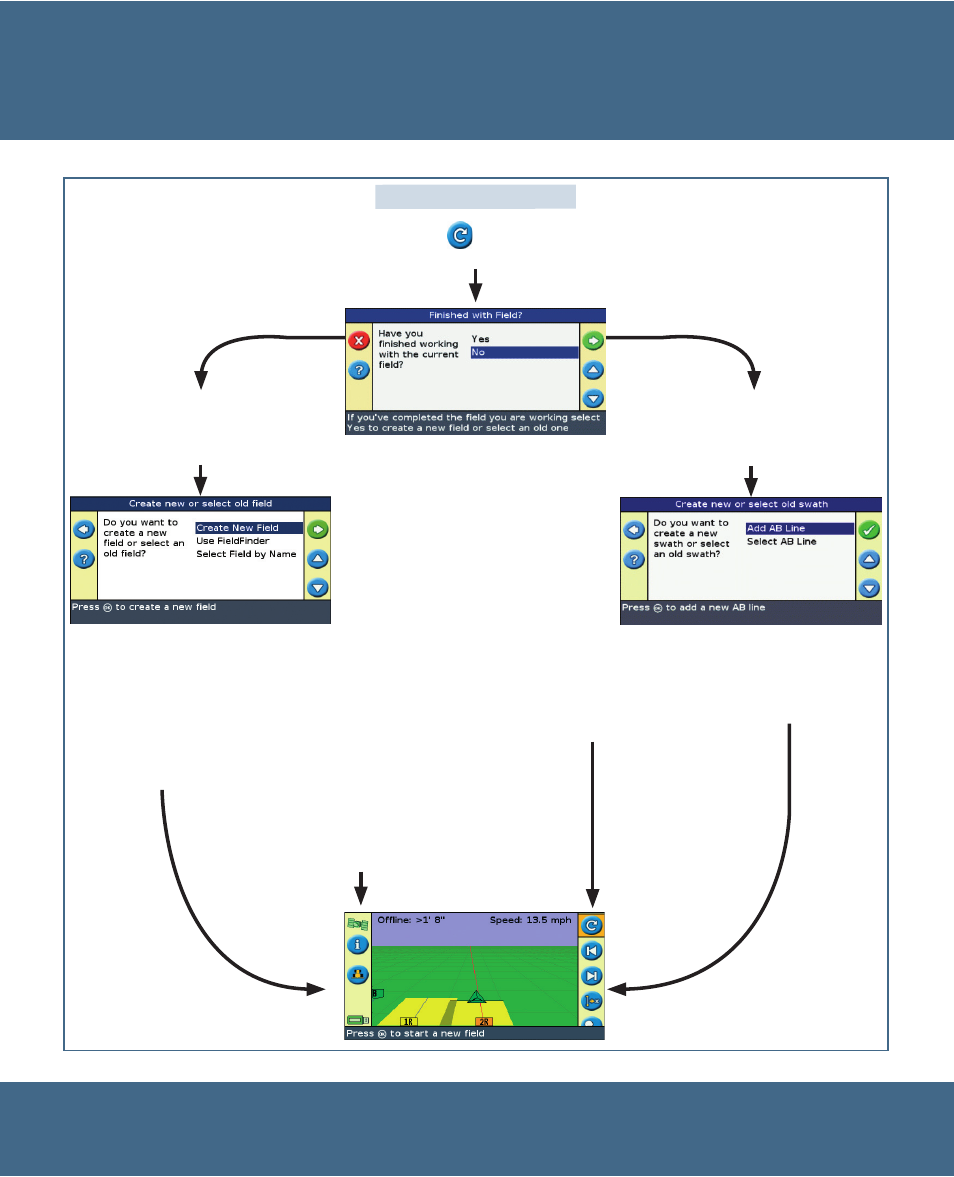

Reset guidance
Select the icon and then
press o.
Get guidance
no
(Choosing No leaves the current field
open and allows you to Add an AB line
or switch AB lines.)
YES
(Choosing Yes closes the current field
and allows you to Create a new field
or Open a stored field and add to it.)
Create New Field
• Confirm pattern &
implement setup
• Confirm or change field
name
• Enter event information
(Record keeping)
Select a Field
• Select a field from a
map (FieldFinder) or list
of names (Select field by
name)
• Choose to start a new
event (& name it) or
continue old event
• Confirm implement
setup (width)
• Enter event information
(Record keeping)
Add AB Line
• Select AB Line from
a map
• Confirm implement
setup (width)
Select AB Line
• Confirm the pattern &
the implement setup
(width)
