GPS 1000 Installing Antenna/Receiver
Ag Leader Technology
April 2001 3000021 9
Other Cable
Connections Refer to Figures 6 through 8 for some of the possible configurations to
attach the GPS 1000.
If you are not using an Ag Leader product refer to that product's Operator's
Manual to see how you verify GPS differential.
Step Action
Cable Attachment
1 Connect the GPS 1000 cable to the GPS 1000 receiver.
2 Attach Auxiliary Power Data cable to the GPS 1000 cable
3 Connect the GPS Power Supply to the male connector of the
pigtail on the Auxiliary Power Cable.
4 Connect the remaining single 9-pin connector from the Auxiliary
Power Data Cable to an open COM Port on the PC.

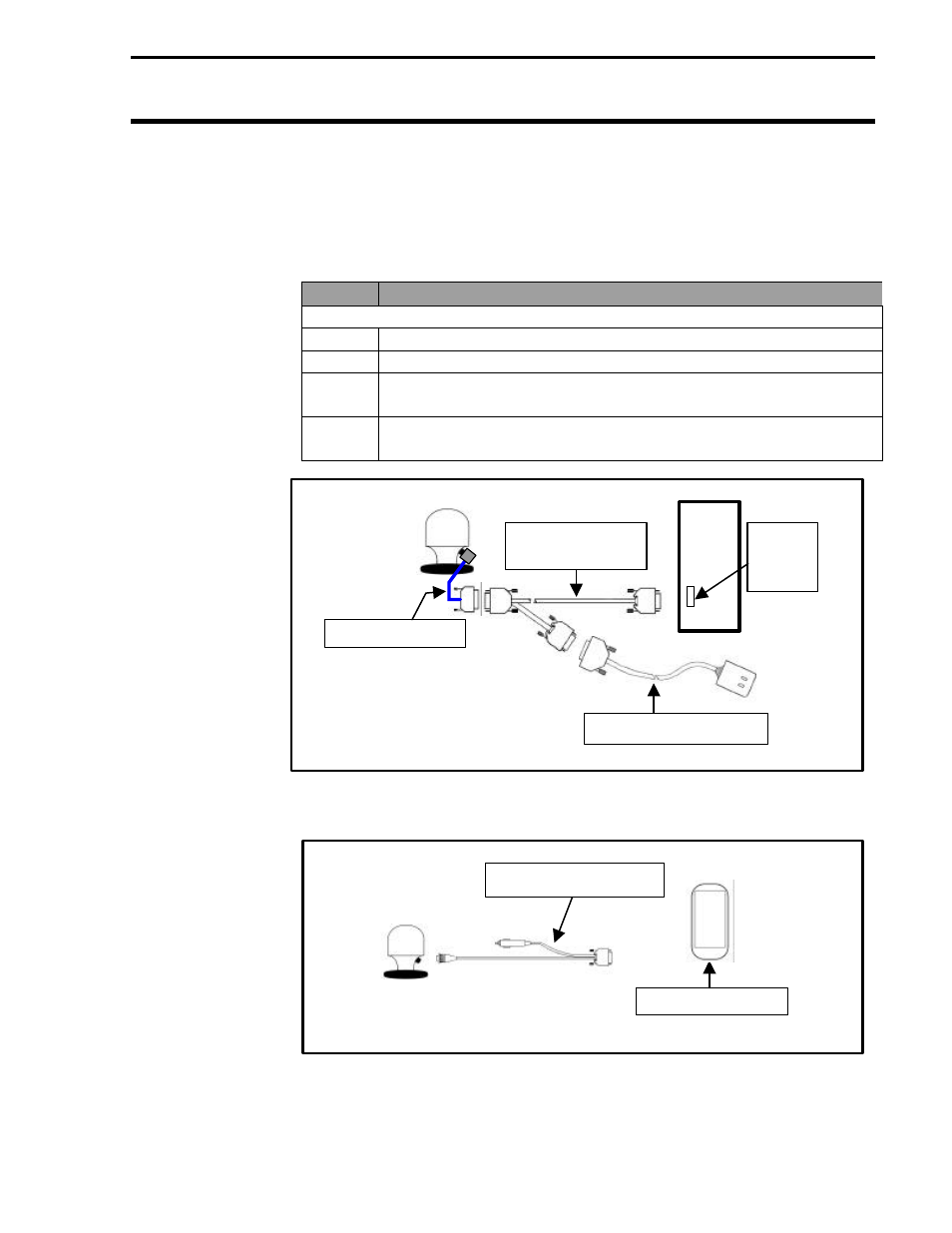

Figure 6. Antenna to PC cable connection
Figure 7. Cable attachment for Handheld GPS device
Mobile Logging Cable
Hand Held Device
PC
Comm
Port
Auxiliary Power
Data Cable
GPS Power Supply
GPS 1000 Cable
