Installing Antenna/Receiver GPS 1000
Ag Leader Technology
April 2001 3000021 8
Step Action
2 Attach the GPS cable from the antenna to Port 1 of the
PF3000 or Port 1 on the YM 2000. See Figures 4 and 5.
NOTE: If you are attaching the GPS 1000 to a PF
3000 Pro without GPS, attach the GPS cable to
AUX. 1 Port.
NOTE: If you are connecting your GPS 1000 to an
alternative logging or mapping device (i.e.
handheld or laptop computer), refer to your
Operator's Manual for that particular unit for
correct cable connection.

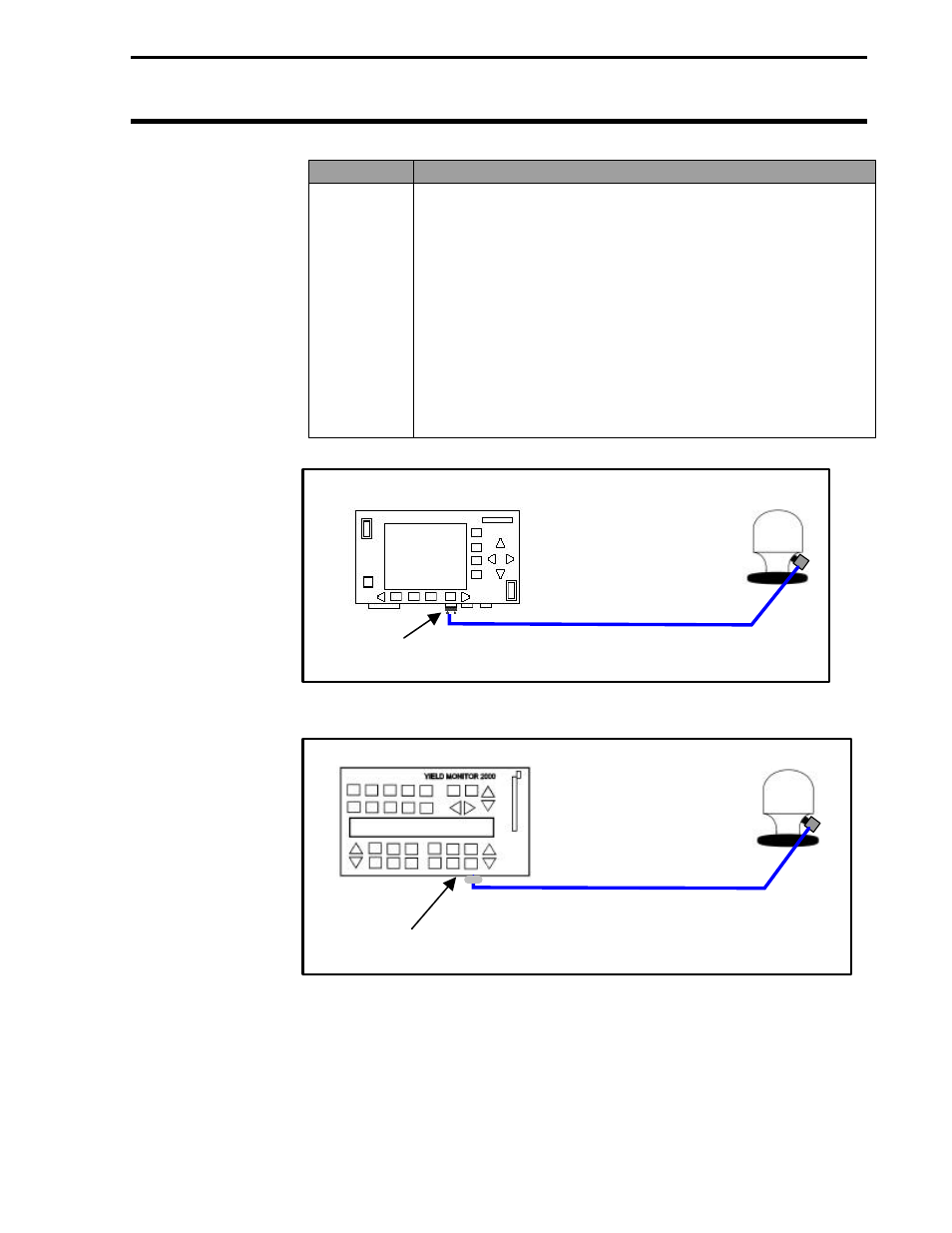

Figure 4. Cable attachment for PF3000 and GPS 1000
Figure 5. Cable attachment for YM 2000 and GPS 1000
Port 1
Port 1
