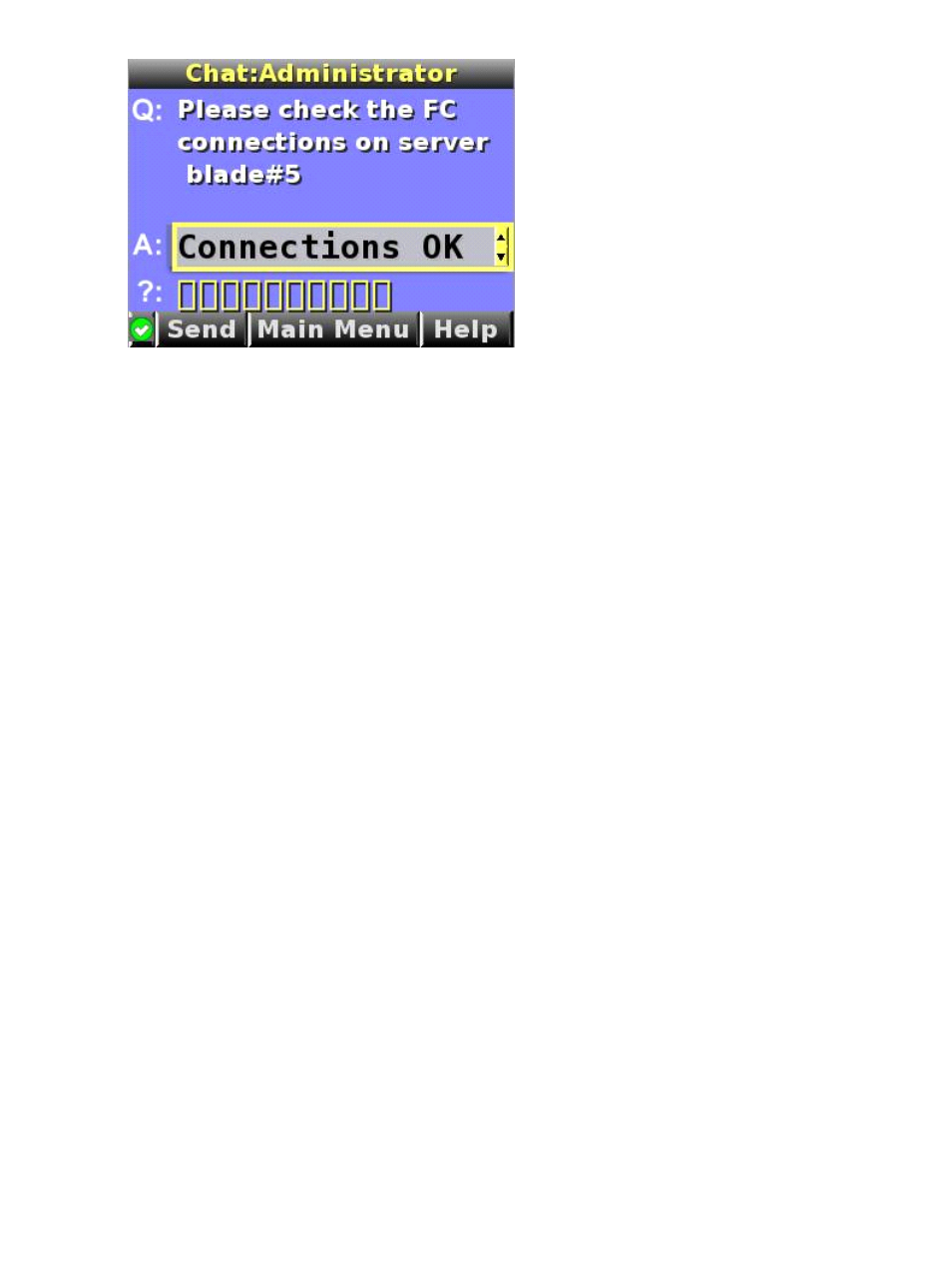

Insight Display errors

The enclosure installation is successful when all errors are corrected. The errors in the following
sections are specific to installation and initial configuration of the enclosure.

The following types of errors might occur when installing and configuring the enclosure:

Power errors

Cooling errors

Location errors

Configuration errors

Device failure errors

When the enclosure UID LED is off, the Insight Display is illuminated amber when any error condition
exists. The navigation bar displays the following selections when an error condition exists:

Health summary icon— Displays the Health Summary screen

Fix This— Suggests corrective action to clear the current error

Next Alert— Displays the next alert, or if none exist, displays the Health Summary screen

Previous Alert— Displays the previous alert

Power errors

Power errors can occur because of insufficient power to bring up an enclosure. Power errors can
occur on server blades, storage blades, or interconnect modules.

To correct a power error:

1.

Use the arrow buttons to navigate to Fix This, and then press OK.

2.

Review and complete the corrective action suggested by the Insight Display. In most cases,
you must either add power supplies to the enclosure or remove the indicated components.

Cooling errors

Cooling errors occur when too few fans are installed in the enclosure or when the existing fans
are not installed in an effective configuration. Cooling errors can occur on server blades, storage
blades, or interconnect modules.

To correct a cooling error:
