Page 23
10.
Navigate to Help, and then press OK to view the Help: DVD Connection screen.
•
An exclamation icon indicates no DVD drive and disk is detected or firmware upgrade
is needed for this feature.
•
A bright green DVD icon indicates the Enclosure DVD media is connected to the blade.
•
A gray DVD icon indicates no DVD connection to that blade.

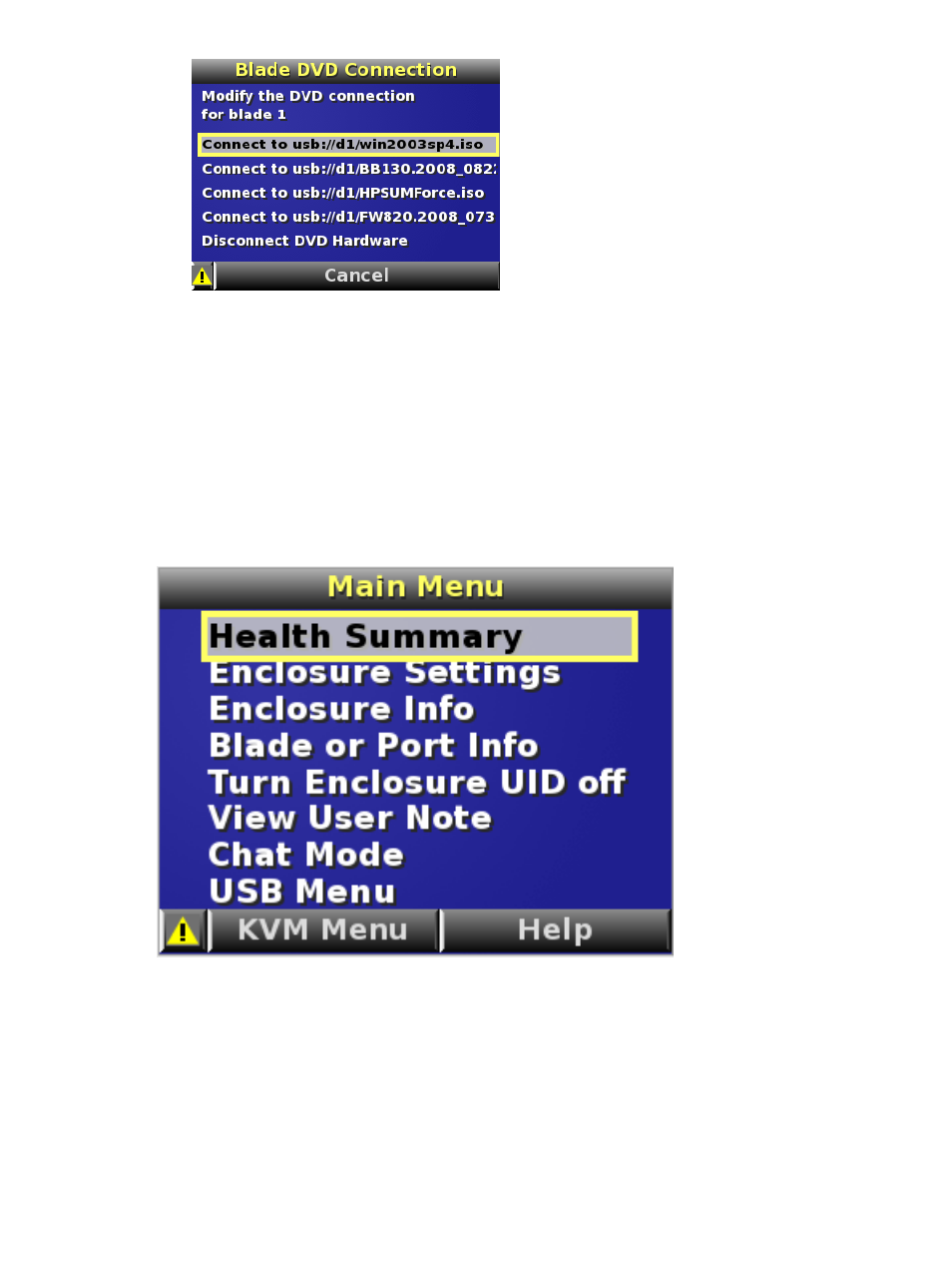

Navigating the Insight Display
Navigate the menus and selections by using the arrow buttons on the Insight Display panel.
The first menu that appears is the Main Menu.
The Main Menu of the Insight Display has the following options:
•
Health Summary
•
Enclosure Settings
•
Enclosure Info
•
Blade or Port Info
•
Turn Enclosure UID on/off
Navigating the Insight Display
23
