The Operation list shows the following information:
Description Item
The path group ID. The icon indicates the status of the path: Path Gr. ID
• The logical path is in normal status.
• A failure occurred at the logical path.
The channel type of the logical paths between the local
storage system and the remote storage system. This column
always indicates Fiber. M-R Path
Indicates whether the logical path is in normal status: Status
•
Normal: The logical path is in normal status. No failure
occurs at the logical path.
• Failed: A failure occurs at the logical path.
The port number of the local storage system Port
The port number of the remote storage system Pair-Port
Viewing Information about Ports on the Local Storage System
To view information in the DKC Operation window on the local storage system:
1. In the Display box, select Port.
The tree shows a list of channel adapters and port attributes ( Figure 61 (page 133) ).
2. Do one of the following in the tree:
•
Select Subsystem. The list shows all the ports on the local storage system.
•
Select a channel adapter. The list shows ports on the channel adapter.
•
Select a port attribute. The list shows ports that have the selected port attribute.

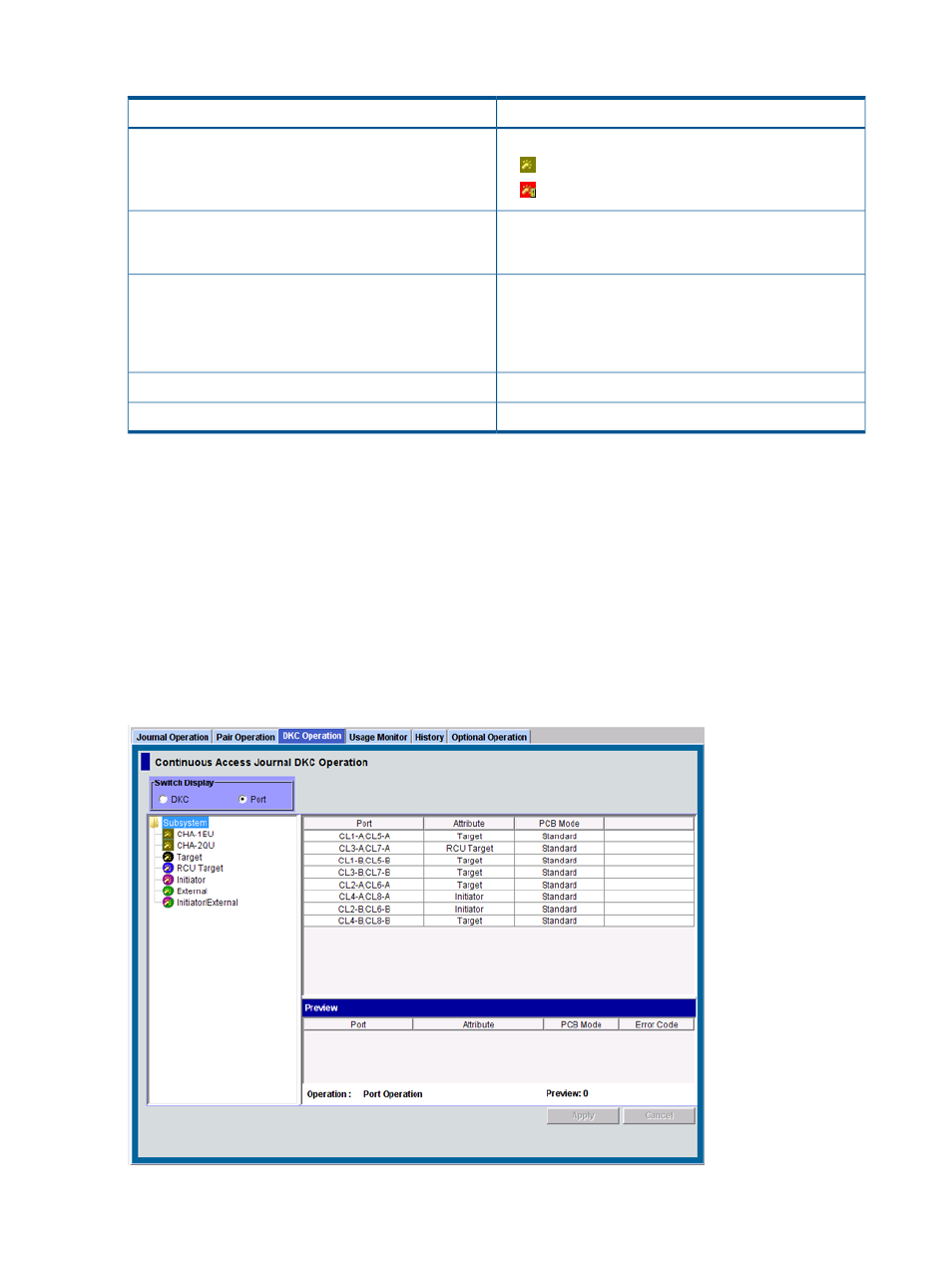

Figure 62 Port Information in the DKC Operation Window
