Step 5: Set the SCSI Interface Mode Switch
Do not connect any cables yet.
The SCSI interface mode switch, shown below, is on the rear panel between
the bus 1 and bus 2 SCSI ports.

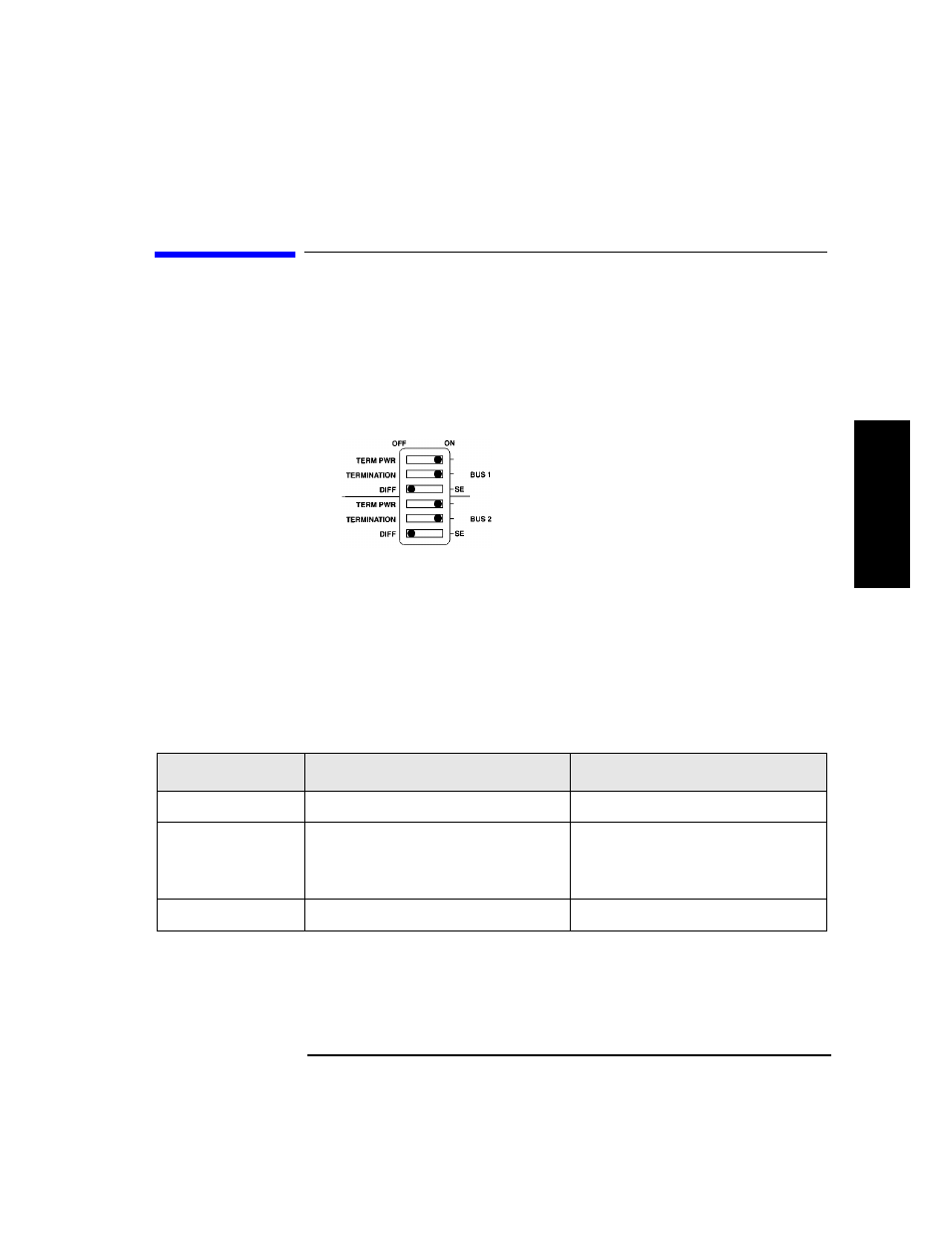

Figure 2-1 SCSI Interface Mode Switch
To set the SCSI interface mode switch:
1. Determine how to connect the library according to:
• Number of drives in the library and drive type (only DLT4000 drives
are supported as daisy-chained)
• Number of SCSI cards
2. Set the SCSI interface mode switch.
Table 2-3 SCSI Interface Mode Switch Settings
Setting Purpose Set to
Term Pwr Sends power to the terminator ON in most installations
Termination Terminates the SCSI bus; functions
the same as a physical terminator ON if one port on the bus is open
OFF if both ports on the bus are
connected to a cable
DIFF/SE Specifies interface mode DIFF for differential
