• Type: P-VOL's emulation type.
• Capacity(MB): P-VOL's capacity. The unit is megabyte (MB).
• Blocks: Number of blocks the P-VOL uses.
• CLPR(P): P-VOL's cache logical partition (CLPR).
• Pool ID: Pool ID of the pool in which the P-VOL is registered.
• Amount of pool use by P-Vol(GB): Amount of pool capacity the P-VOL used.
• Pool usage rate by P-Vol: P-VOL's pool usage rate.
• Snapshot pair detail list: Displays the following snapshot data items:
• MU: Snapshot ID
• S-Vol: S-VOL's CU and LDEV numbers
• Status: XP Snapshot pair status
• Time: Time when snapshot data is stored in the pool
• Pool used(GB): Pool capacity the S-VOL uses
• Sync.: Consistency rate of the P-VOL and S-VOL data
• CLPR(S): S-VOL's cache logical partition (CLPR)
• Refresh button: Updates information in the Detail pane.
• OK button: Closes the Detail pane.
S-Vol Path Information pane
1. Display the XP Business Copy main pane.
2. Select and right-click a XP Snapshot pair in the volume list, and select S-Vol Path. The S-Vol Path
pane appears.

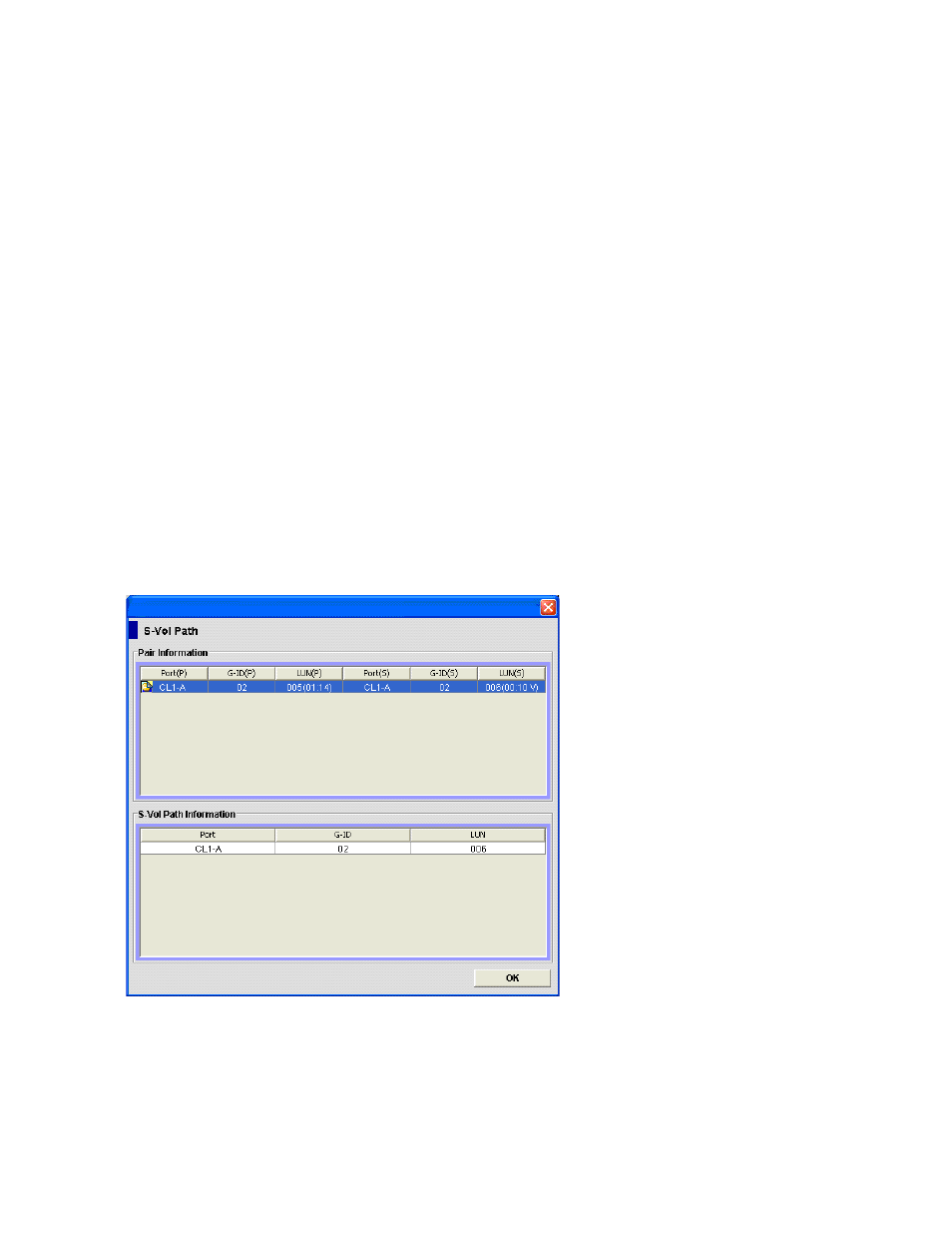

Figure 20 S-Vol Path pane
• Pair Information: The following information appears:
• Port(P): P-VOL's port ID
XP Snapshot operations 70
