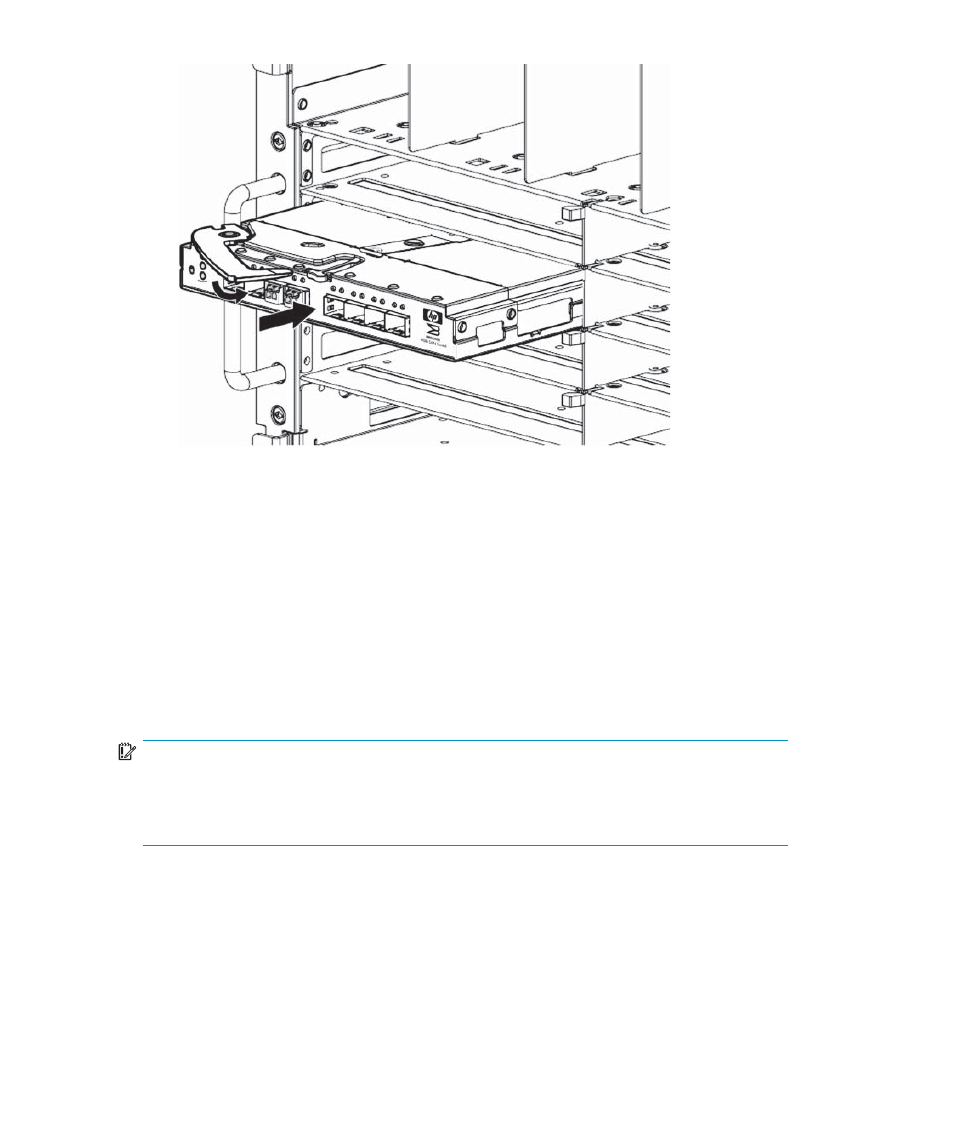

Figure 5 Installing the Brocade 4Gb SAN Switch into an interconnect

bay

4.

Press the installation handle into the latch to lock the Brocade 4Gb SAN Switch

in place.

OA verifies power

As defined earlier, the HP BladeSystem Onboard Administrator (OA) is the enclosure

management processor that manages the devices contained within the enclosure. The

OA provides a single point from which to perform basic management tasks on switches

or server blades installed in the enclosure.

IMPORTANT:

HP recommends reading the appropriate

HP BladeSystem Enclosure User Guide

and the

HP

BladeSystem Onboard Administrator User Guide

. Reading these guides in sequence will

promote an overall understanding of your specific enclosure model.

Once the switch is installed in the interconnect bay, the OA verifies that the switch

type matches the mezzanine cards present on the servers. If there is no mismatch, the

OA powers up the switch.
If the switch does not power up, check the enclosure and switch status via the OA web

interface. Refer to the HP BladeSystem Onboard Administrator User Guide.

26

Setup
