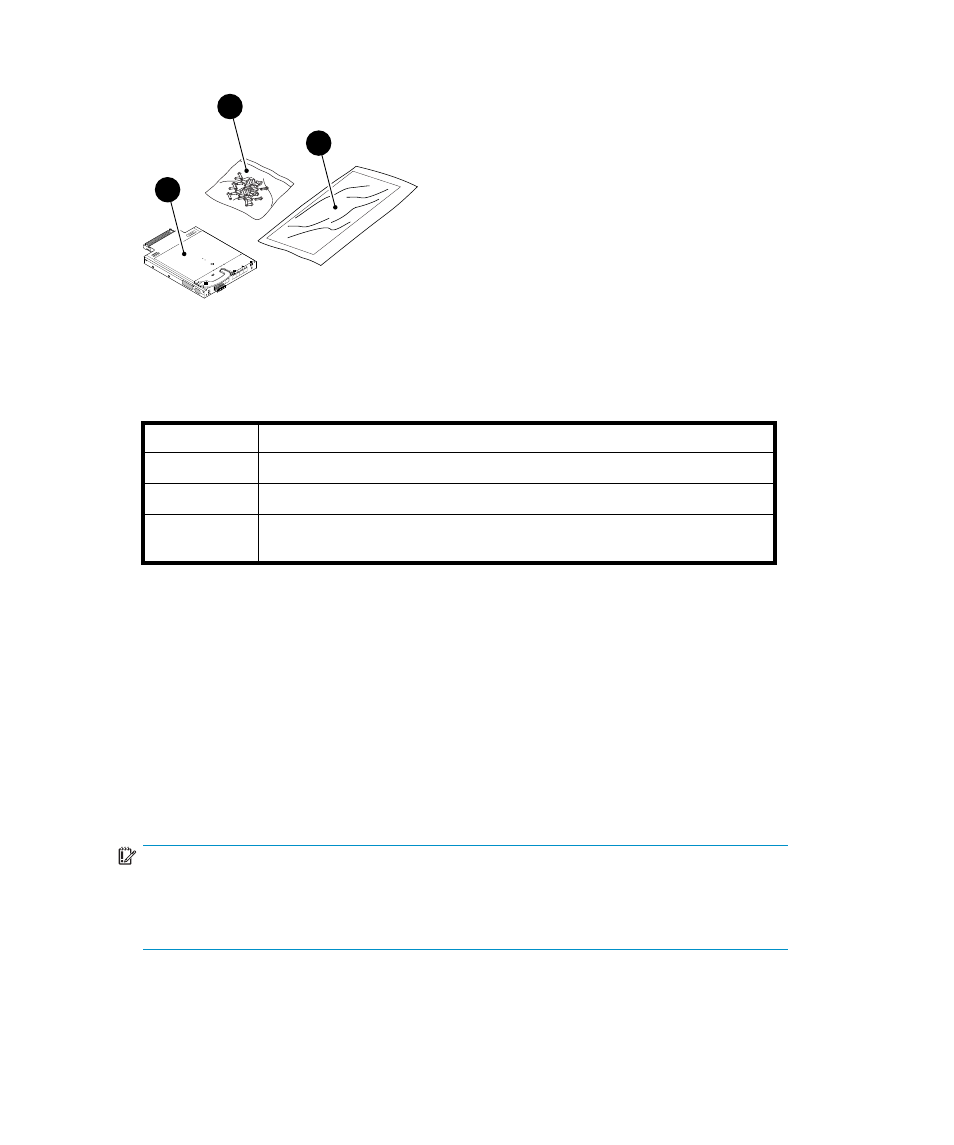

Figure 3 Carton contents
Table 5 identifies 4Gb SAN switch components.
Table 5 Brocade 4Gb SAN Switch components
Item Description
1 Brocade 4Gb SAN Switch
2 Dust covers for empty SFP ports
3 Brocade 4Gb SAN Switch for HP c-Class BladeSystem installation
instructions
Installation and safety considerations
The 4Gb SAN Switch installs in the I/O bays in the rear of the HP c-Class BladeSystem
enclosure. Refer to the appropriate BladeSystem Enclosure Setup and Installation Guide
for specific enclosure requirements.
Installing multiple switches
Install and configure one 4Gb SAN Switch at a time. This is required so that Ethernet IP
address conflicts do not occur with duplicate default Ethernet IP addresses.
IMPORTANT:
DHCP is enabled by default for switches running Fabric OS 5.2.1b (switch rev 0C) or later.
In cases where DHCP is available, IP address conflicts will not occur, simplifying multiple
switch installations. See Using External DHCP .
22 Setup
