Map Information Screen
Map Information Screen
When you select Map Info, a screen similar to
appears. The location
of the element being reported appears on line 1.
Lines 1, 2, 3, and 4 on this screen are scrollable in unison. For each scroll
position, line 1 displays one of the following locations:
•
LTO1
•
slot 1 through slot 11
Depending on the presence or absence of a tape cartridge in the element being
reported, line 2 displays either “Empty” or “Occupied.”
Depending on the report for each location, line 3 displays either “Label Valid” or
“Label Not Present.”
For each location reported, line 4 displays the actual bar code on the label, with
up to 8 characters. If there is no label or if no bar code reader is installed, line 4
is blank.

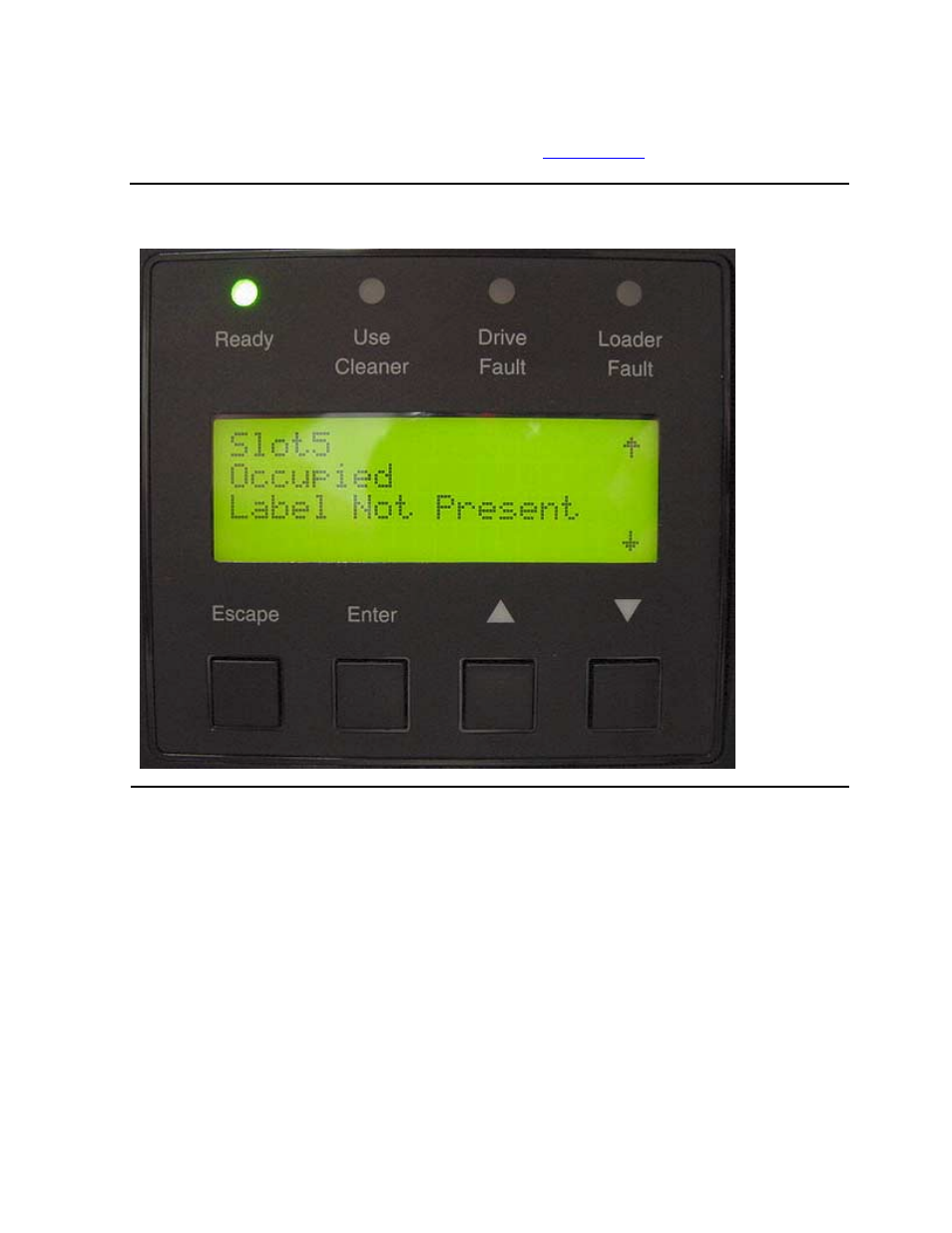

Figure 4-11. Map Information Menu
