Component identification 9

4

Slot 1 PCIe2x16 (16, 8, 4, 1)

5

Slot 2 PCIe2x8 (4, 1)

6

Slot 3 PCIe2x8 (4, 1)

7

Slot 4 PCIe2x4 (1)

8

USB connectors (4)

9

HP dedicated iLO management port (option)

10

UID button/LED

11

10/100/1000 NIC1 connector/shared iLO management port

12

10/100/1000 NIC2 connector

13

Video connector

14

Serial connector

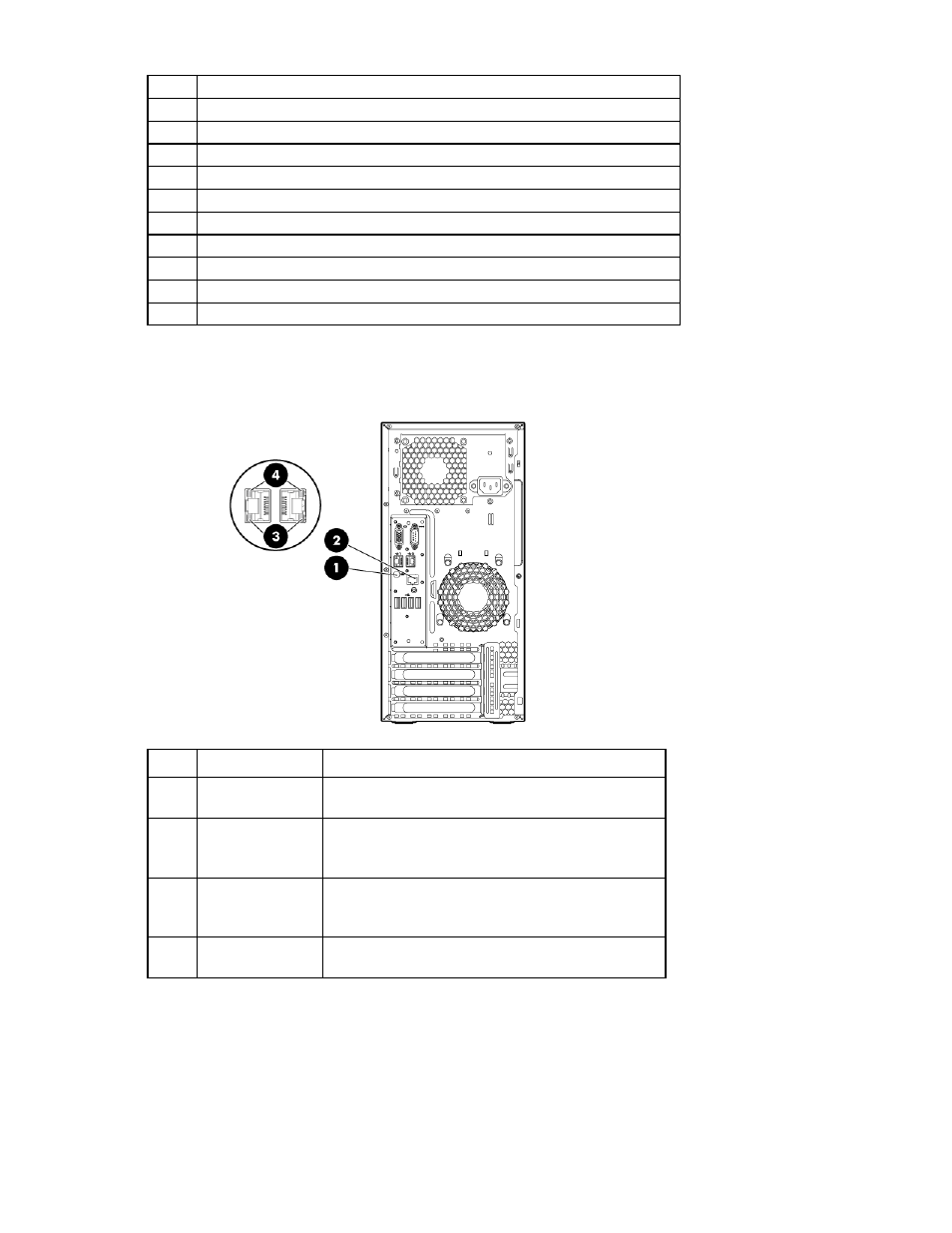

Rear panel LEDs and buttons

Item Description

Status

1

UID LED/button

Flashing blue = Activated

Off = System being managed remotely/deactivated

2

HP dedicated iLO
management port

option LEDs

Green = Network link
Flashing green = Network link and activity

Off = No link to network

3

NIC activity LED

Green = Network activity
Flashing green = Network activity

Off = No network activity

4

NIC link LED

Green = Network link

Off = No network link
