Component identification 10

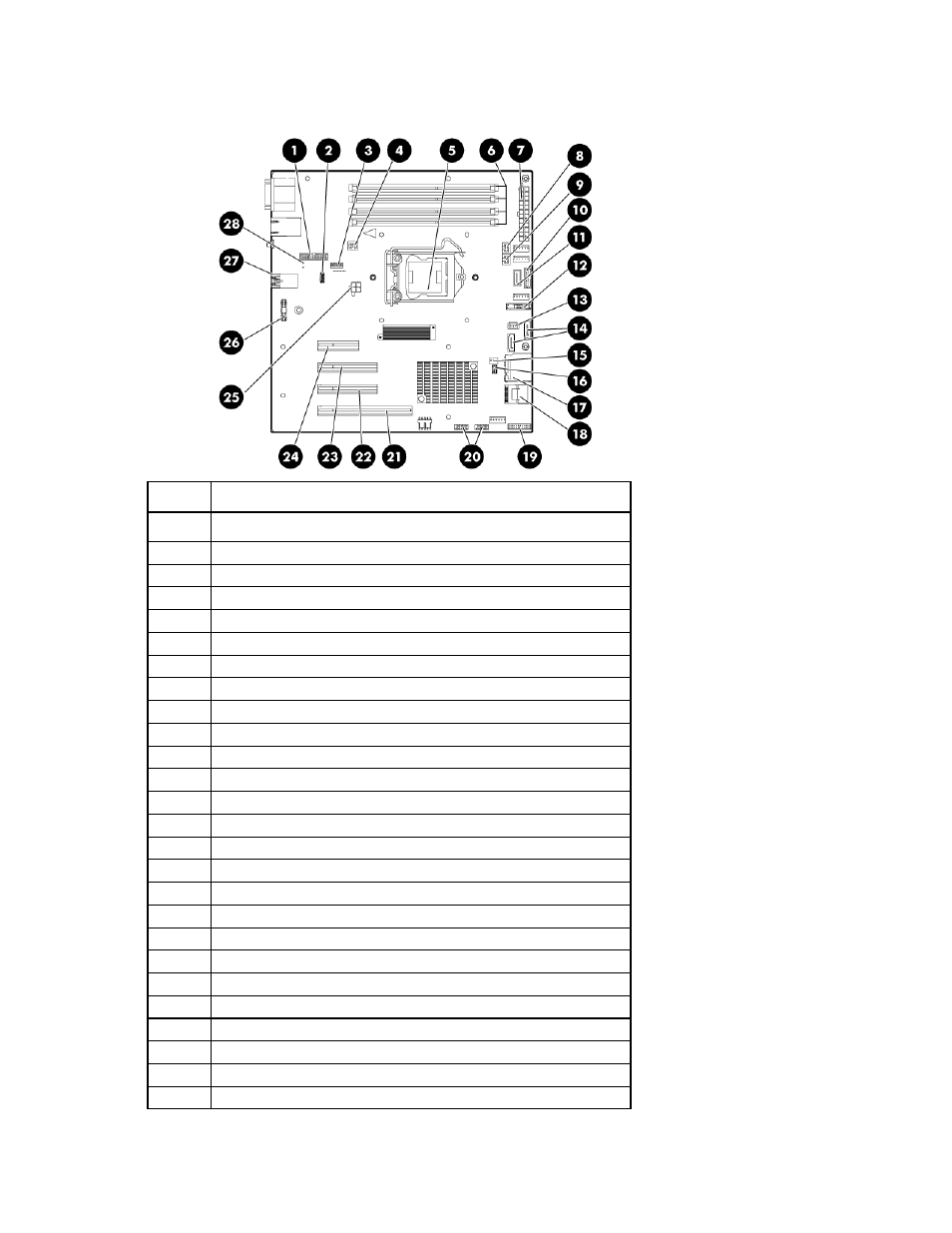

System board components
Item Description
1
Dedicated iLO management module connector
2 System maintenance switch
3 RPS connector (1x5 pin)
4 Front system fan connector (2x3 pin)
5 Processor socket
6 DIMM slots (4)
7 24-pin power supply connector
8 Processor-heatsink fan assembly connector (2x3 pin)
9 Rear system fan connector (2x3 pin)
10 RPS connector (2x8 pin)
11 Internal USB connector
12 System battery
13 I 2 C cable connector
14 SATA connectors (2)
15 SMB bus connector
16
Temperature sensor connector
17 SD card connector
18 Mini-SAS connector
19 Front I/O connector
20 Front USB connectors (2)
21 Slot 1 PCIe2x16 (16, 8, 4, 1)
22 Slot 2 PCIe2x8 (4, 1)
23 Slot 3 PCIe2x8 (4, 1)
24 Slot 1 PCIe2x4 (1)
25 4-pin power supply connector
26 TPM connector
