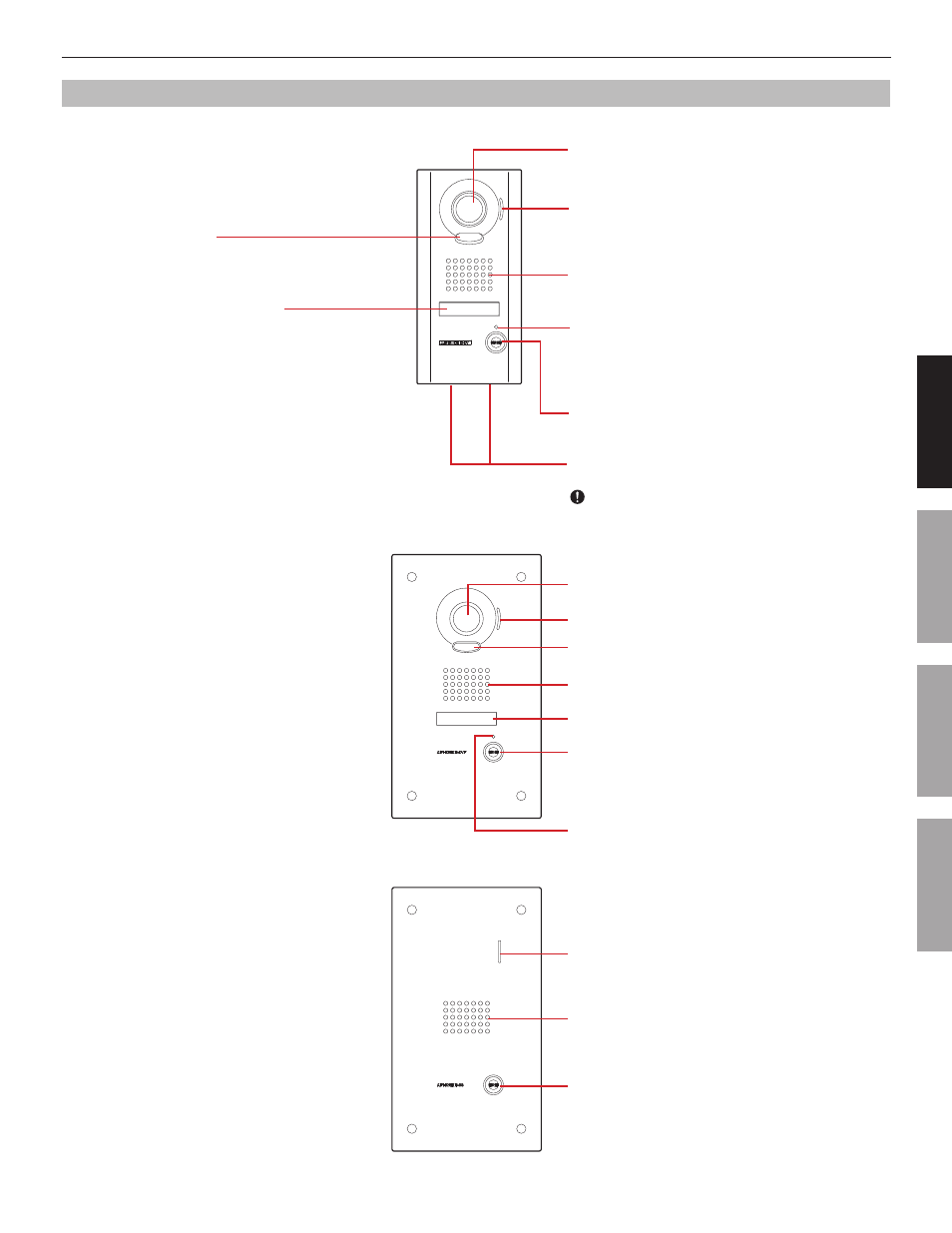

Vandal-resistant door station
Vandal-resistant video door station (IS-DV)
IP vandal-resistant video door station (IS-IPDV)
(surface-mount)
Vandal-resistant video door station (IS-DVF)
IP vandal-resistant video door station (IS-IPDVF)
(fl ush-mount)
Vandal-resistant audio door
station (fl ush-mount) (IS-SS)
Name plate (with backlight)
Write down a name on the plate. The backlight is
always lit while the power is on to make a visitor
confi rm the name even at night.
Name plate (with backlight)
Call button (→P. 21)
Calls the preset master stations.
Call button
Call button
Status LED (red/orange/green)
Indicates the current status (calling, talking, etc.) of this
station by color.
e.g.) Lights up in orange in the standby mode.
Water escape holes
These are for discharging rain water inside the unit.
Do not obstruct these holes.
Status LED (red/orange/green)
Camera (→P. 24)
Captures images to display on the monitor of the master
station.
Camera
Microphone
Sends sounds from the door station to the master station.
Microphone
Microphone
White light LED
Lights up automatically when a call
operation is made on this unit at night.
White light LED
Speaker
Outputs sounds from the master station.
Speaker
Speaker
