Specifications and Dimensions
21 F8138601
PHM632N

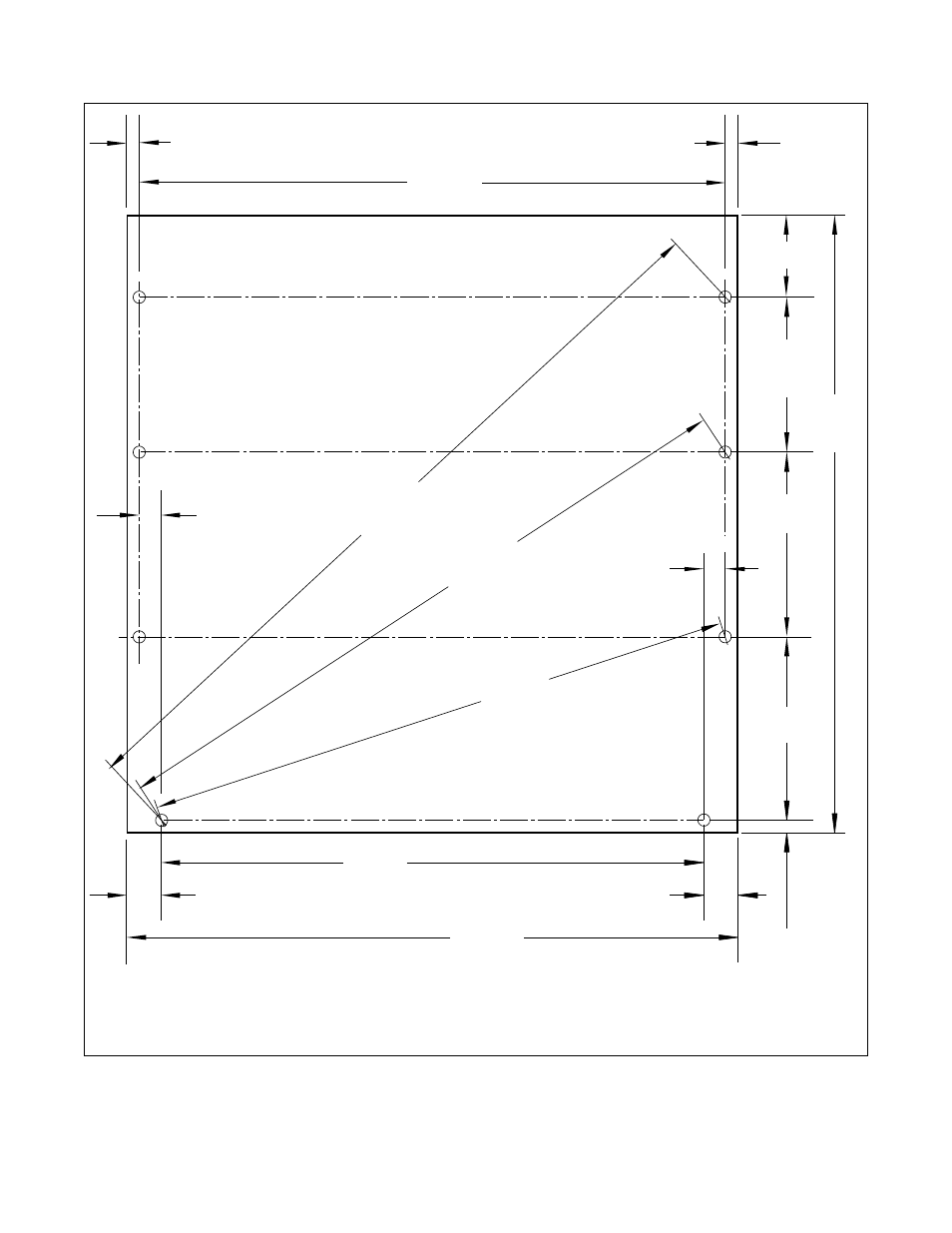

Figure 10
0.75 in.
(19 mm)
39.625 in.
(1008 mm)
0.75 in.
(19 mm)
6.75 in.
(171 mm)
9 in.
(229 mm)
13.625 in.
(346 mm)
13.625 in.
(346 mm)
43
.75
i
n
.
(1
11
1 mm)
0.75 in.
(19 mm)
3 in.
(76 mm)
3 in.
(76 mm)
41.125 in.
(1045 mm)
35.125 in.
(892 mm)
52.1875 in.
(1326 mm)
46.3125 in.
(1176 mm)
39.75 in.
(1010 mm)
2.25 in.
(57 mm)
2.25 in.
(57 mm)
80 / 100 MODELS
FRONT OF MACHINE
