Mounting Bolt Installation
Requirements
Approved Foundations Only
NOTE: If installing expansion bolts into an
elevated concrete foundation pad, the concrete
foundation pad should extend a minimum of 9
inches (229 mm) for 35 machines or 12 inches (305
mm) for 60 - 150 machines out from the machine
base on all sides. Refer to Figure 5.
A bolt kit consisting of eight bolts is available as an
option. 35 machines use 5/8-11 x 8 inch bolts.
60 – 125 machines use 3/4-10 x 8 inch bolts. 150
machines use 3/4-10 x 10 inch grade 5 bolts. The bolts
should be embedded in a 3500 psi (241 bar) minimum
reinforced concrete floor that is a minimum of 6 inches
(153 mm) (for 35 and 60 2-speed, L-speed, and
M-speed models) or a 12 inch (305 mm) (for all other
models) thick. Use the mounting bolt layouts in
Mounting Bolt Hole Locations section.
On 35 – 125 machines, the threaded end of the bolts
should extend 2 inches (5.08 cm) above the mounting
surface. On 150 machines, the threaded end of the
bolts should extend 3 inches above the mounting
surface.

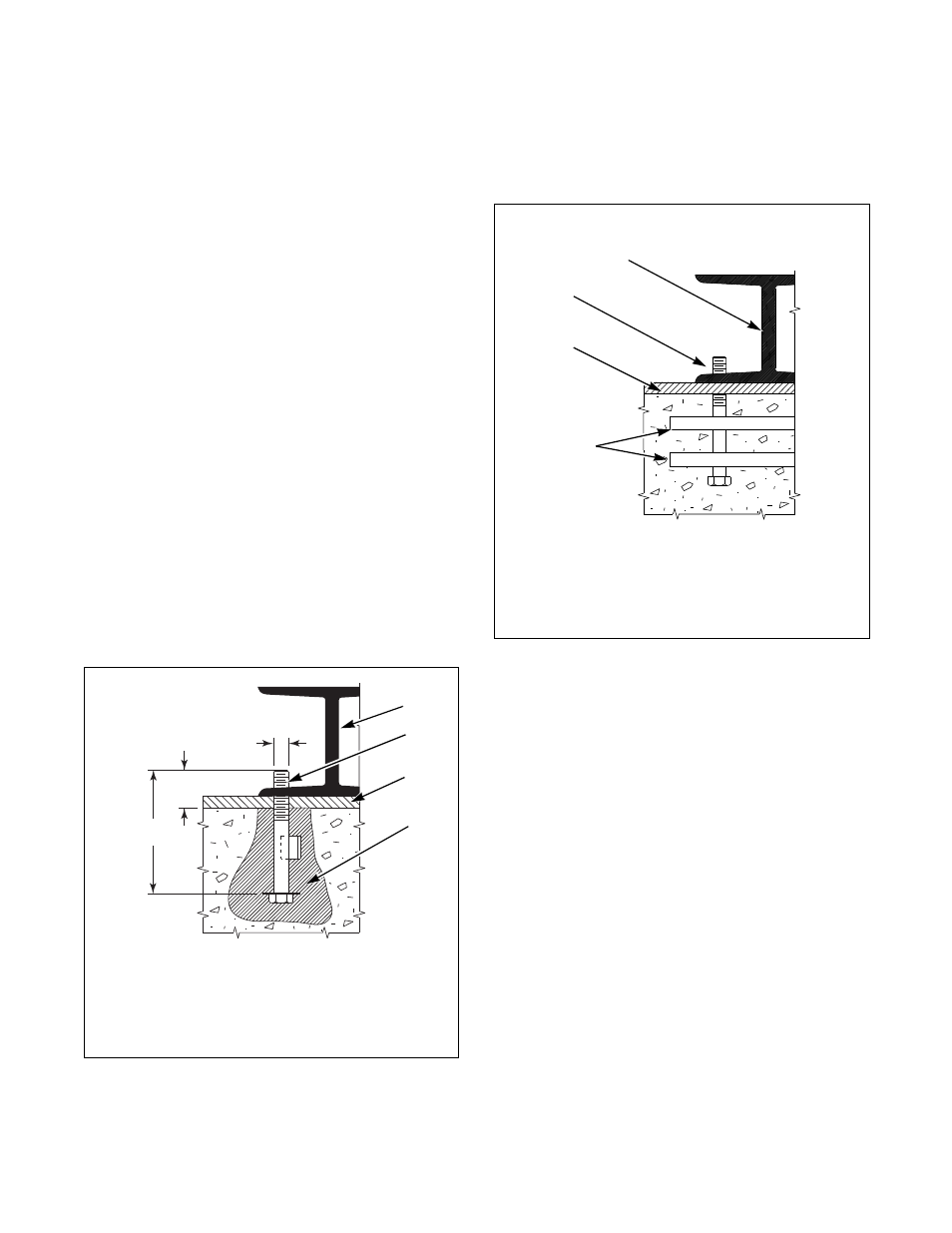

Refer to Figure 6 for a typical installation of
individual mounting bolts.
Figure 6
For new foundations a bolt-locator fixture or rebar
frame is available and a preferred option. This rigid
welded assembly made of reinforcing rod and
mounting bolts is designed to be embedded in
concrete. Refer to Figure 7.
Figure 7
PHM722N
1 Machine Frame Base
2 Mounting Bolt Threads
3 Grouting
4 Cement or Structural Epoxy
PHM722N
1
3
2 in.
(51 mm)
8 in.
(203 mm)
0.75 in.
(19 mm)
4
2
PHM179N
1 Machine Frame Base
2 Mounting Bolt Threads
3 Grouting
4 Reinforcing Rod
PHM179N
1
2
3
4
