Printer parts Printer parts
Front ........................................................................................................................................................................................... 658
Back ............................................................................................................................................................................................ 660
Top Cover (Inside) ................................................................................................................................................................. 661
Carriage ..................................................................................................................................................................................... 662
Ink Tank Cover (Inside) ....................................................................................................................................................... 663
Stand .......................................................................................................................................................................................... 664
Parts of the Output Stacker ............................................................................................................................................. 541
Media Take-up Unit(Optional) .......................................................................................................................................... 665
Control Panel ........................................................................................................................................................................... 622

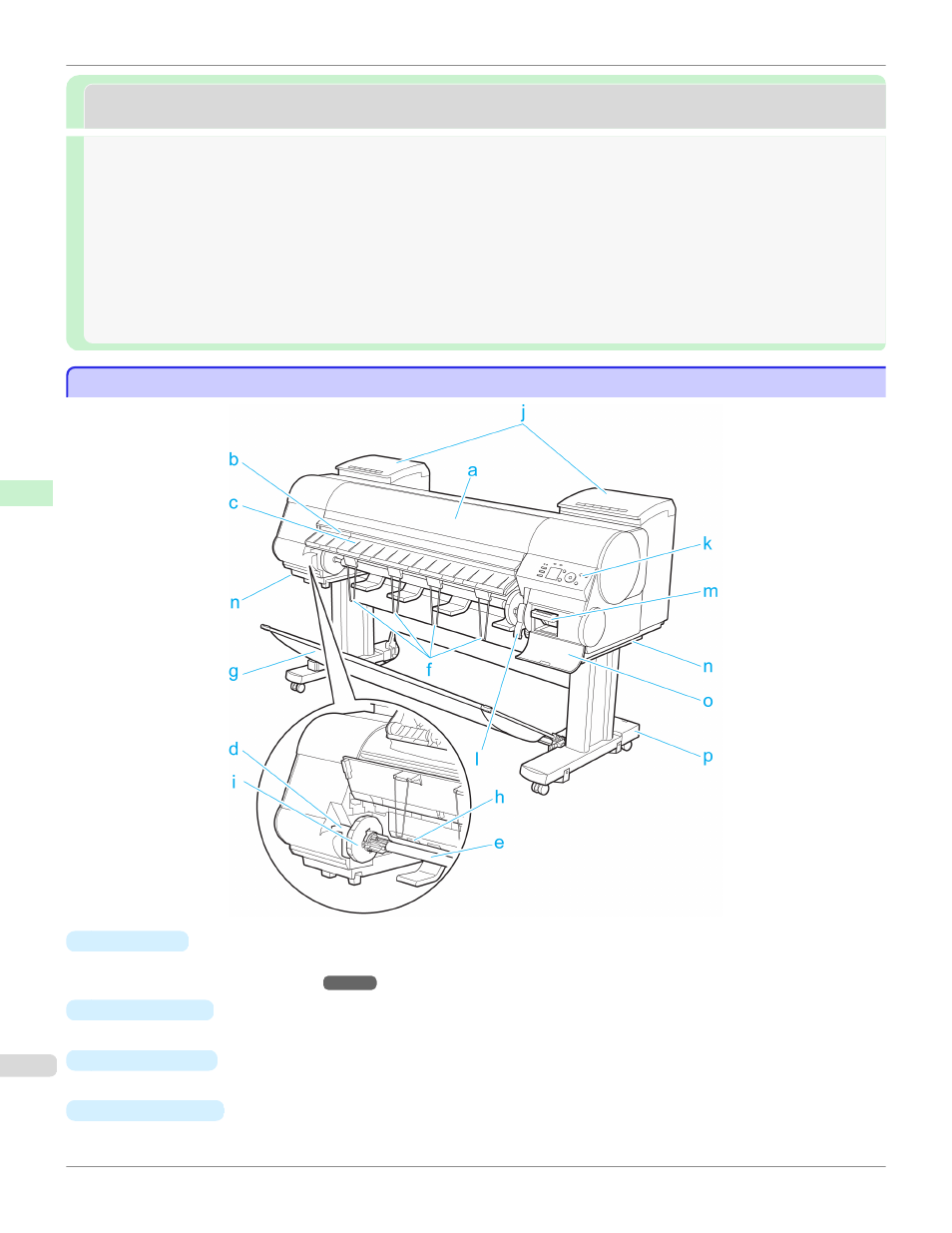

Front Front
a Top Cover
Open this cover to install the Printhead, load paper, and remove any jammed paper from inside the printer as nee-
ded. (See "Top Cover (Inside).")
➔ P.661
b Cutter Groove
Paper is cut (using the cutter or manually with scissors) over this groove.
c Ejection Guide
Guides printed documents as they are ejected. Raise the guide when loading a roll.
d Roll Holder Slot
Slide the Roll Holder into this slot.
Front iPF8400S
User's Guide
Printer Parts
Printer parts
658
