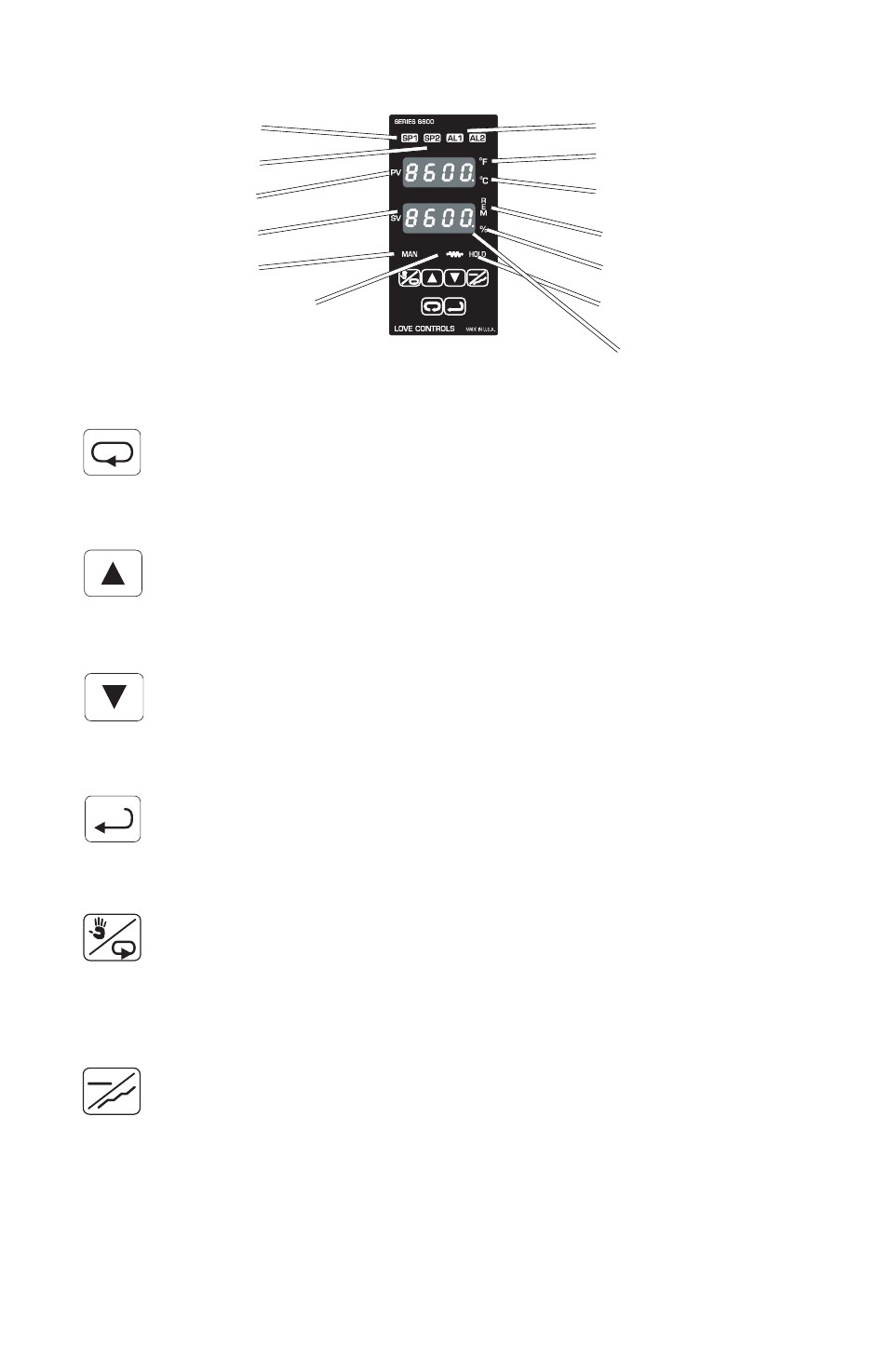

FRONT PANEL KEY FUNCTIONS

Set Point 1 Lamp

Alarm Lamps

Set Point 2 Lamp

°F Indicator

Process Display

°C Indicator

Set Point Display

Remote Set Lamp

Manual Indicator

Per Cent Lamp

Heater Break Indicator

Hold Lamp

The decimal point flashes when Self-Tune is operating.

Key functions are as follows:

INDEX:

Pressing the INDEX key advances the display to the next

menu item. May also be used in conjunction with other keys as noted
below.

UP ARROW:

Increments a value, changes a menu item, or

selects the item to ON. The maximum value obtainable is 9999
regardless of decimal point placement.

DOWN ARROW:

Decrements a value, changes a menu item, or

selects the item to OFF. The minimum value obtainable is -1999
regardless of decimal point placement.

ENTER:

Pressing ENTER stores the value or the item changed. If

not pressed, the previously stored value or item will be retained. The
display will flash once when ENTER is pressed.

AUTO/MANUAL: This key toggles the control output between
Automatic mode and Manual mode. Press and hold key for three
seconds to activate. See section on AUTO/MANUAL operation on
Page 13.

RUN/HOLD: This key toggles the Ramp/Soak programmer functions
between Run mode (program runs as set up), and Hold mode (program
functions are suspended). Press and hold key for three seconds to
activate. See section on Programmer Functions (Page 10) for further
details.
