All components which are connected to the SRD in an explosion hazardous area, require an Ex-Approval The applicable
limit values must not be exceeded in any event These limit values also have to be adhered to when connecting additional
capacitances, inductances, voltages and currents The FISCO model is thereby used as a basis
Further information for observance:
“Wiring and Installation 31 25 kBit/s, Voltage Mode, Wire Medium Application Guide” by FOUNDATION fieldbus
System Configuration
Electrical connection
Connection compartment see “ELECTRICAL CONNECTION”

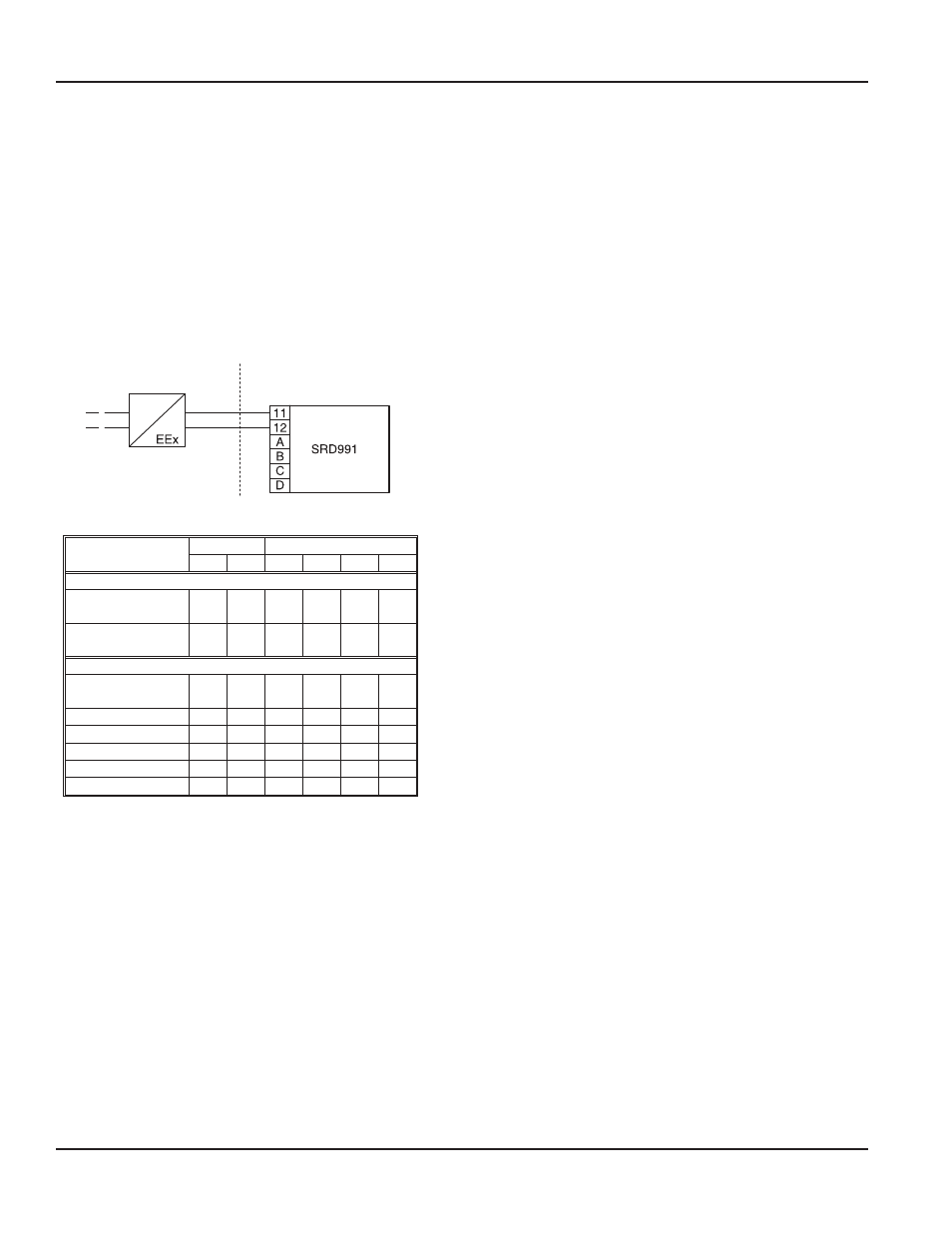

Electrical connection for SRD991
in intrinsic safe (EEx i) version
Non hazardous
Hazardous
)i
x
E
E
(
n
o
it
a
c
o
l
a
e
r
a
Terminals:
Input
Options
11
12
A
B
C
D
Input signal / Setpoint value
HART/FoxCom/
4-20mA
11+ 12–
Fieldbus
acc. to IEC 1158-2
11** 12**
Options / Additonal In-/Outputs
Position
feedback
81+ 82– 31+ 32–
Binary output
81+ 82– 83+ 84–
Binary input
13+ 14– 15+ 16–
Limit signal switch
41+ 42– 51+ 52–
Potentiometer
Sensor
** any Polarity
Connection values
HART / 4-20 mA
Terminals. . . . . . . . . . . . . . . 11+ / 12-
Signal range . . . . . . . . . . . . 4 ... 20 mA
Input voltage . . . . . . . . . . . . DC 12 ... 36 V (non loaded)
FOUNDATION Fieldbus
Terminals. . . . . . . . . . . . . . . 11 / 12
Bus connection . . . . . . . . . . Fieldbus interface acc. to
IEC 1158-2
Supply voltage . . . . . . . . . . . DC 9 ... 32 V
2)
max. Supply voltage. . . . . . . DC 36 V
Operating current . . . . . . . . . 10.5 mA ± 0.5 mA
PROFIBUS-PA
Terminals. . . . . . . . . . . . . . . 11 / 12
Bus connection . . . . . . . . . . Fieldbus interface acc. to
IEC 1158-2
Supply voltage . . . . . . . . . . . DC 9 ... 32 V
2)
max. Supply voltage. . . . . . . DC 36 V
Operating current . . . . . . . . . 10.5 mA ± 0.5 mA
FoxCom - digital (IT2)
Terminals. . . . . . . . . . . . . . . 11+ / 12–
Supply voltage . . . . . . . . . . . DC 13 ... 36 V
2)
max. Supply voltage. . . . . . . DC 36 V
Operating current . . . . . . . . . ~ 9 mA at DC 24 V
FoxCom - analog (IT1)
Terminals. . . . . . . . . . . . . . . 11+ / 12–
Signal range . . . . . . . . . . . . 4 ... 20 mA
Supply voltage . . . . . . . . . . . DC 13 ... 36 V
2)
*)
In preparation
2)
When used in Ex-hazardous areas, the max. supply voltages, etc.
on nameplate resp. certificate of conformity, have to be observed!
