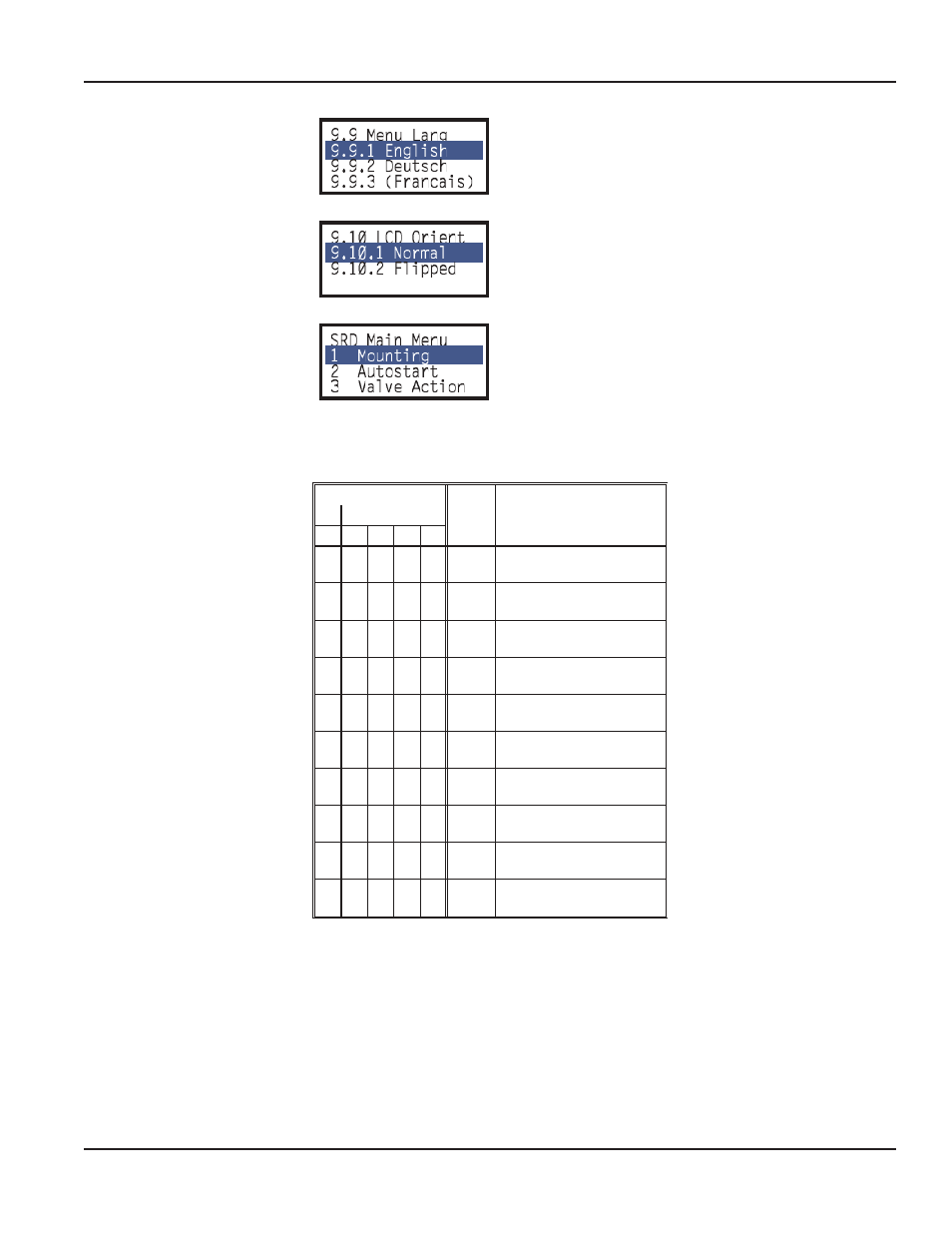

... and the display orientation is selected ...
... then automatically continued to configuration:
Select with keys
UP or DOWN and confirm
with UP+DOWN (together)
Configuration
MENU: The various specifications for configuration are arranged in menus:
LEDs flash
Menu Description
red green
M 1 2 3 4
½ ½ 1
Actuator system,
mounting side
½ ½ 2
Autostart,
Short Autostart
½ ½ 3 Valve function
½ ½ 4 Characteristic of setpoint
½ ½ ½ 5 Limits and Alarms 1)
½ ½ ½ 6
Parameter for
position controller
½ ½ ½ 7
Manual setting of
pneumatic output
½ ½ ½ 8
Manual setting of
valve position
½ ½ ½ 9
Calibration functions
for workshop
½ ½ ½ 10
PROFIBUS-PA:Bus Address
FOUNDATION F.:Simulate
½ = ON and OFF flashing same duration
1) Versions without LCD: This menu can be configured only with version HART or version “without communication”
In Operation
After an autostart, the SRD automatically goes IN OPERATION (Additional parameters can be configured by pressing the
menu key M )
Operation
