Mounting the Positioner
SRD and actuator are in failsafe position
Attach the SRD on the console in such a way that the catch of coupling 3 is guided into the groove of shaft 1 Use bolt 2 to
center and align the positioner to the actuator Be careful not to shift shafts 1 and 9 and that both shafts are exactly flush
Fasten the positioner to the bracket by means of 4 lock washers and 4 screws M6 x 12
SRD
Rotary actuator

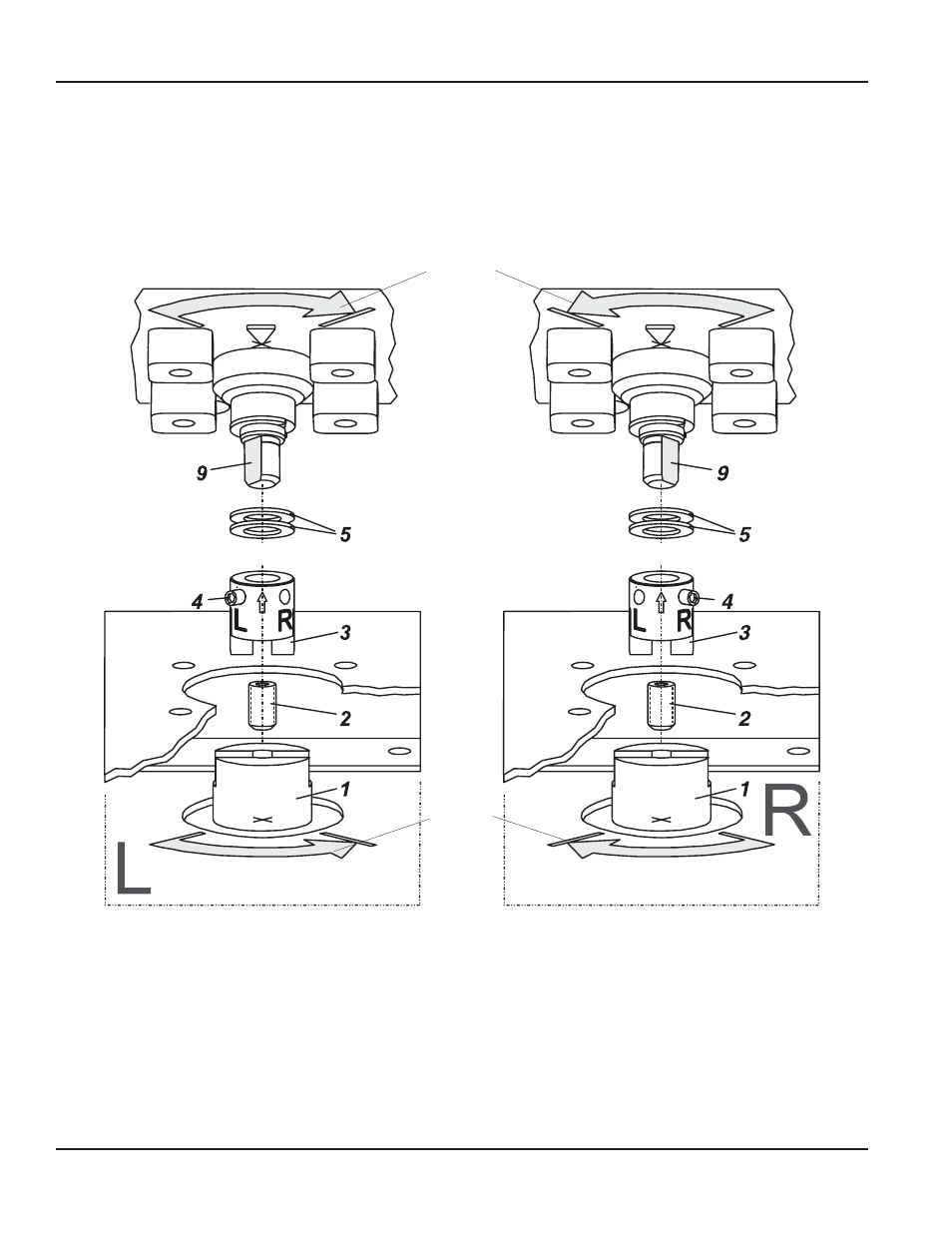

Figure 27: Mounting if actuator is left-rotating
SRD
Rotary actuator
Figure 28: Mounting if actuator is right-rotating
Direction
of rotation
0 → 100 %
of actuator
shaft 1
Direction
of rotation
0 → 100 %
of feedback
shaft 9
Mounting to Actuators
