87.5 %

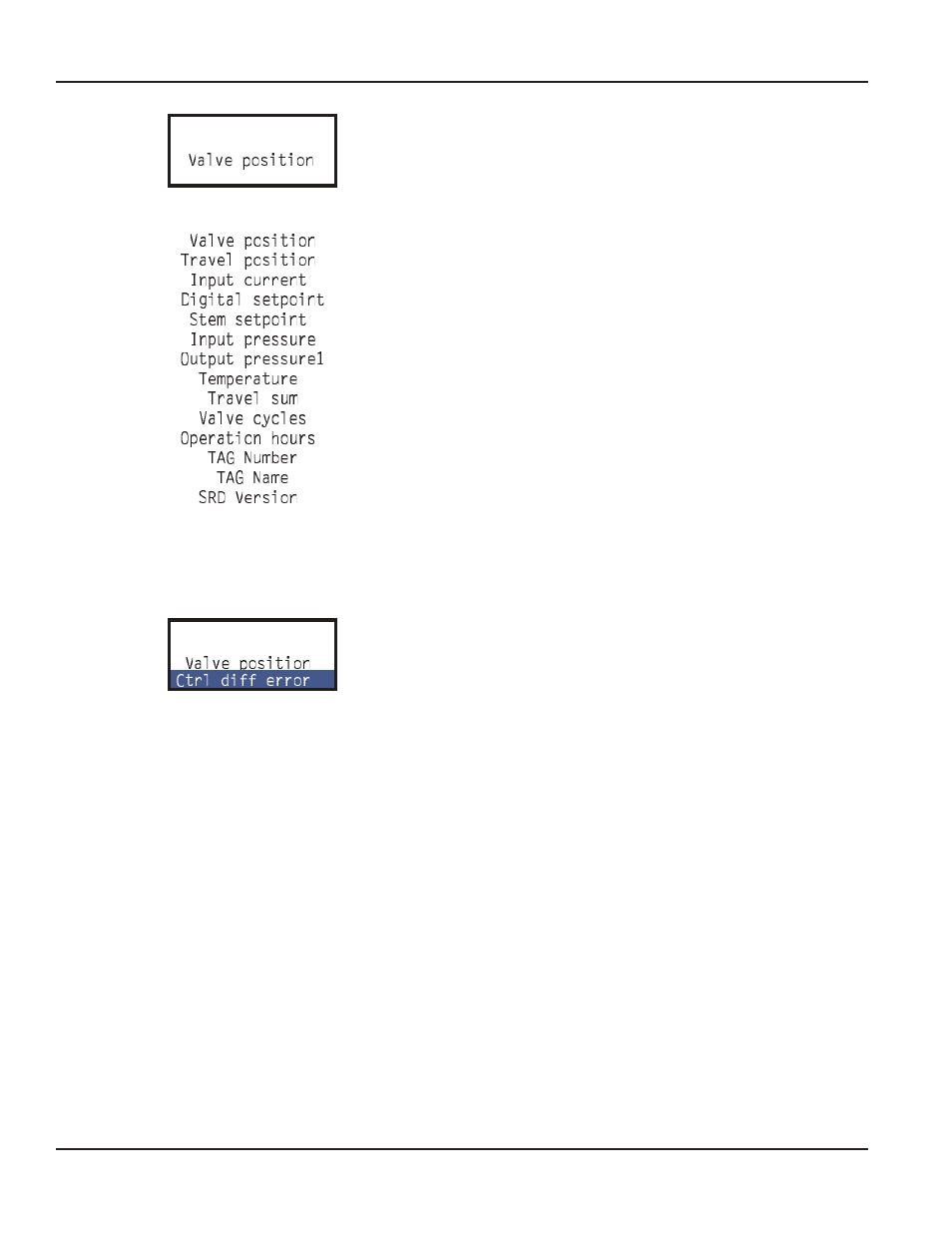

On the LCD display the process variable is indicated
(With LED version, all LEDs are off during operation )
Through pressing of keys UP or DOWN, additional information
can be retrieved from the SRD:
(Certain data is available only with the corresponding options )
Manual Operation
Press UP+DOWN together to put the SRD into manual operation mode, where the valve position can be set manually Press M
twice to exit the menu
Diagnostics During Operation
87.5 %
If the diagnostics determines an occurrence, this is indicated in
the bottom line: (resp blinking code with LEDs)
MESSAGE: The SRD recognizes an occurrence which the user must eliminate by taking suitable steps in order to continue
with operation This can be e g a wrong configuration or missing supply air
ERROR: During self-testing the SRD recognized an error and is no longer operable
Operation
