25
You only need to do this if the function of output one (1) is
to be Fwd Pulse or AMR (50ms pulse.) Refer to page 35,
"Digital Output #1."

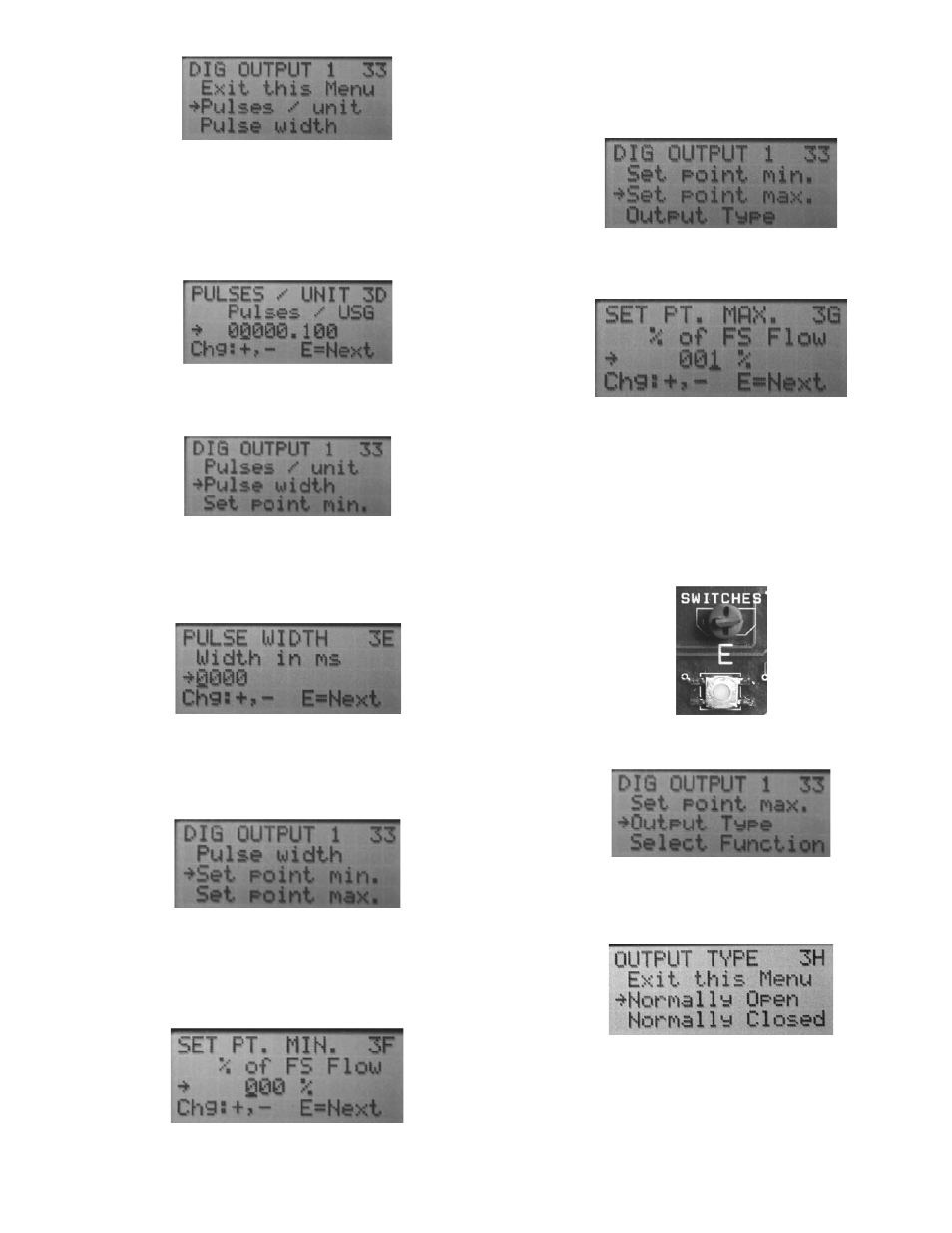

5. In PULSES/UNIT 3D input a proper number as
described earlier. Press E.
6. The screen returns to DIG OUTPUT 1 33. Press or
activate + twice, then press E.
This is only for Fwd Pulse. (Refer to page 35, "Digital Output
#1.")
7. Into screen PULSE WIDTH 3E enter a number. Press E.
8. The screen returns to DIG OUTPUT 1 33. Press + three
times, then press E.
SET POINT
This is only for Flow Set Point. (Refer to page 35, "Digital
Output #1.")
1. Into screen SET PT. MIN 3F enter a number as
described earlier. Press E.
NOTE: When the fl ow rate falls below the minimum setpoint
valvue (entered as a percentage of full scale), the output
will activate.
2. The Screen returns to DIG OUTPUT 1 33. Press + four
times, then press E.
3. In SET PT. MAX 3G enter a number as described earlier.
NOTE: When the fl ow rate exceeds the set point value
(entered as a percentage of full scale), the output will
activate.
This is only for Flow Set Point. (Refer to page 35 "Digital
Output #1.)
OUTPUT TYPE
1. Press or activate the letter E to return to screen DIG
OUTPUT 1 33.
2. In DIG OUTPUT 1 33 press + fi ve times, to Output Type.
3. In OUTPUT TYPE 3H press Normally Open or Normally
Closed.
• Select N.O. or N.C. for any output. Refer to page 35,
"Digital Output #1.
• Normally Opened or Closed **Selected** shows
for two seconds.
