14

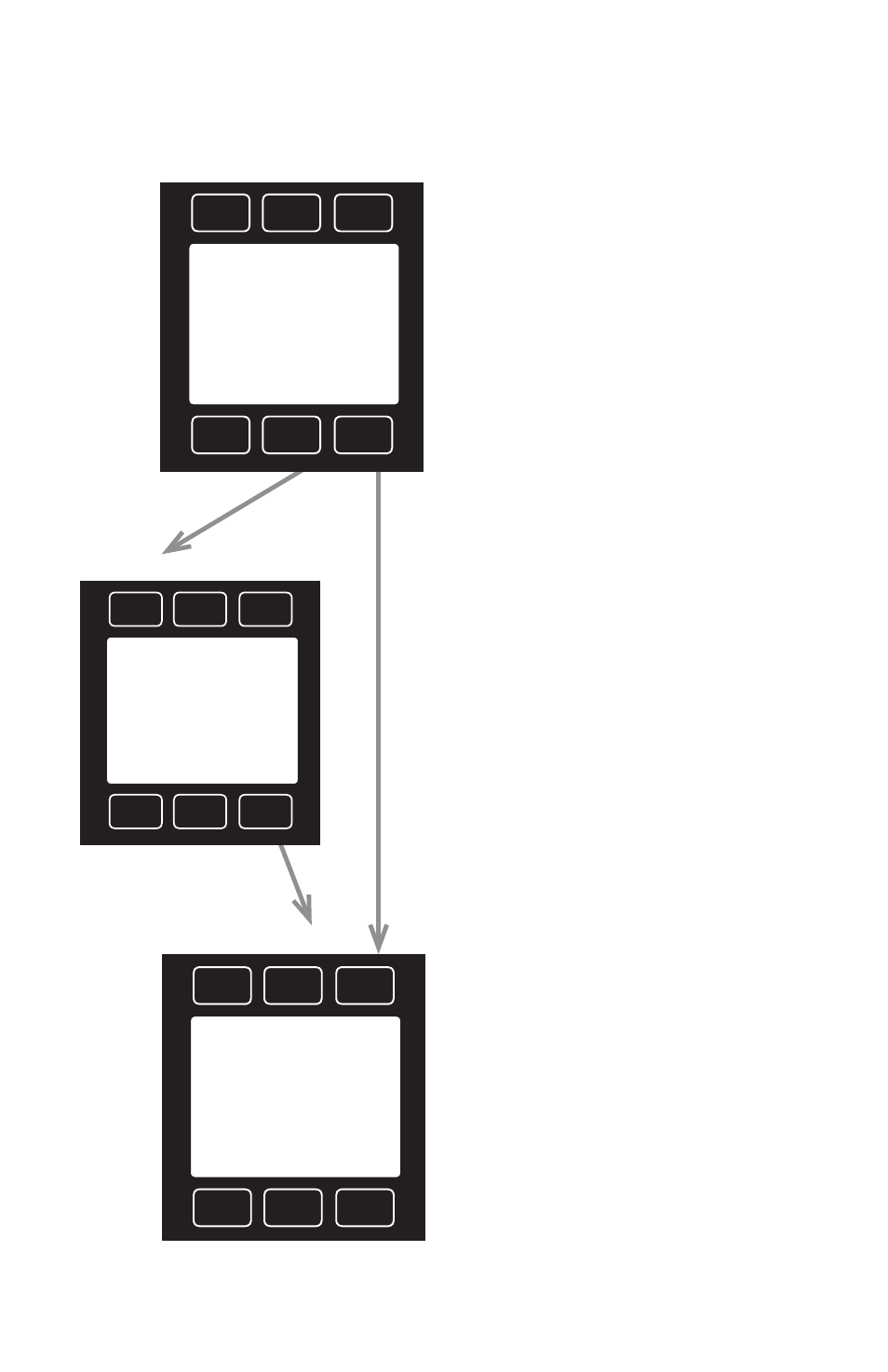

The Main display shows pressure,
temperature, volumetric flow and mass
flow.
Pressing the button adjacent to a
parameter will make that parameter
the primary display unit.
By hitting the MENU button at the
bottom right of the screen you will
enter the Select Menu display.
If your meter was ordered with the
Totalizer option (page 35), pushing the
TOTAL button once will bring up the
Totalizing Mode display. Pushing MENU
will bring up the Select Menu display.
DISPLAYS AND MENUS
The device screen defaults to Main display as soon as power is applied to the meter.
Select Menu
From Select Menu you can change
the selected gas, interact with your
RS-232 / RS-485 settings or read
manufacturer’s data.
Push MAIN to return to the Main display.
RS232
COMM
MFG
DATA
MAIN
MISC
GAS
SELECT
