C ONTROL
SETUP
RS232
COMM
MFG
DATA
MAIN
MISC
GAS
SELECT
SELECT MENU

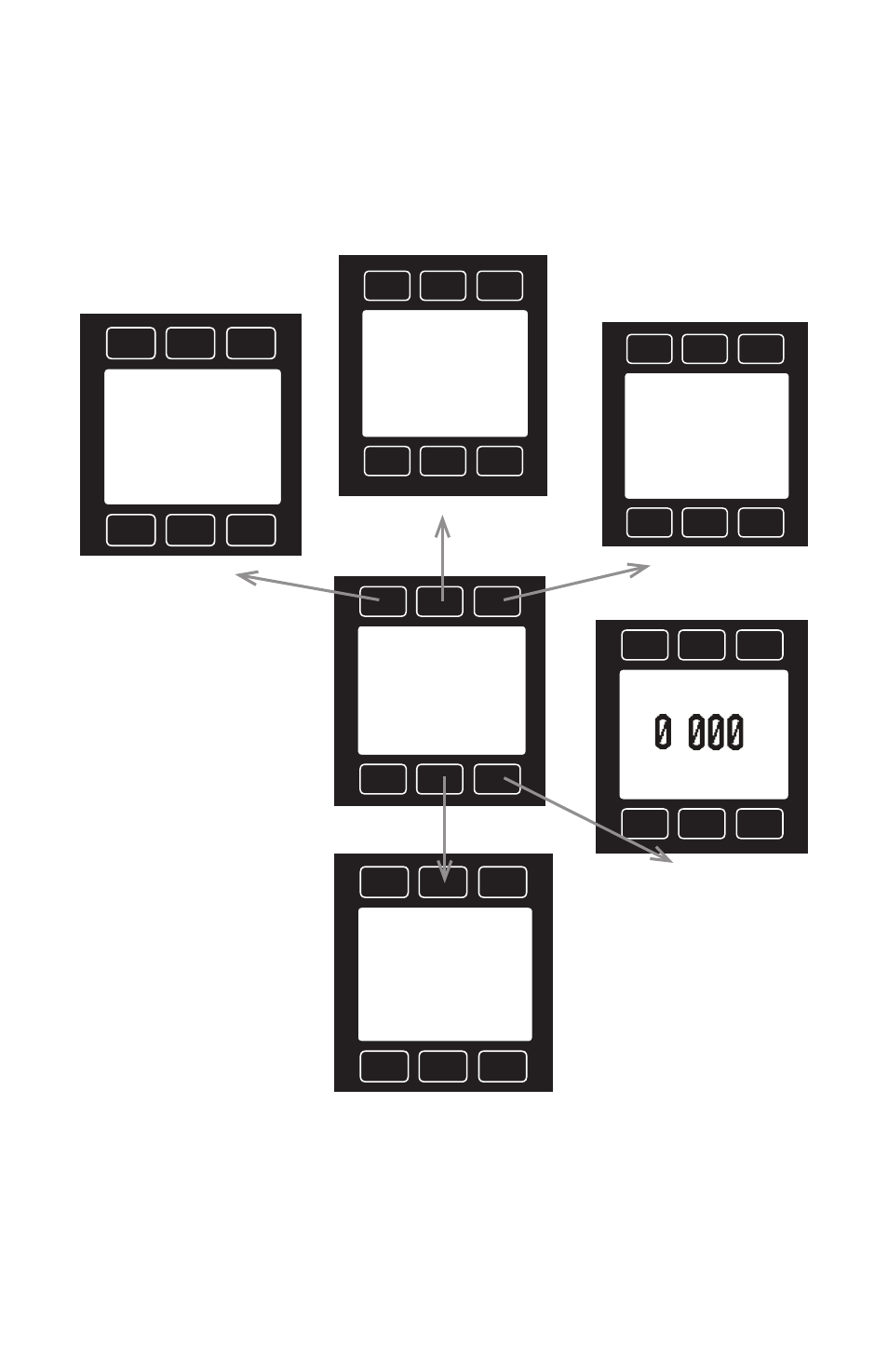

From Select Menu you can change the selected gas, interact with your
RS-232 / RS-485 settings, read manufacturer’s data and access the control
setup screen.
Press the button next to the desired operation to bring that function to the screen.
Miscellaneous
Communication Select
Control Setup
Main
Manufacturer Data
An explanation for each screen can be found on the following pages:
Control Setup: Please see page 28.
Communication Select: Please see page 21.
Miscellaneous: Please see page 22.
Manufacturer Data: Please see page 24.
