25
The Main display shows, temperature
and volume flow. Line pressure will be
also be displayed if the meter was order
with this option.
Pressing the button adjacent to a
parameter will make that parameter
the primary display unit.
By hitting the MENU button at the
bottom right of the screen you will
enter the Select Menu display.
If your controller was ordered with the
Totalizer option (page 43), pushing the
TOTAL button once will bring up the
Totalizing Mode display. Pushing MENU
will bring up the Select Menu display.

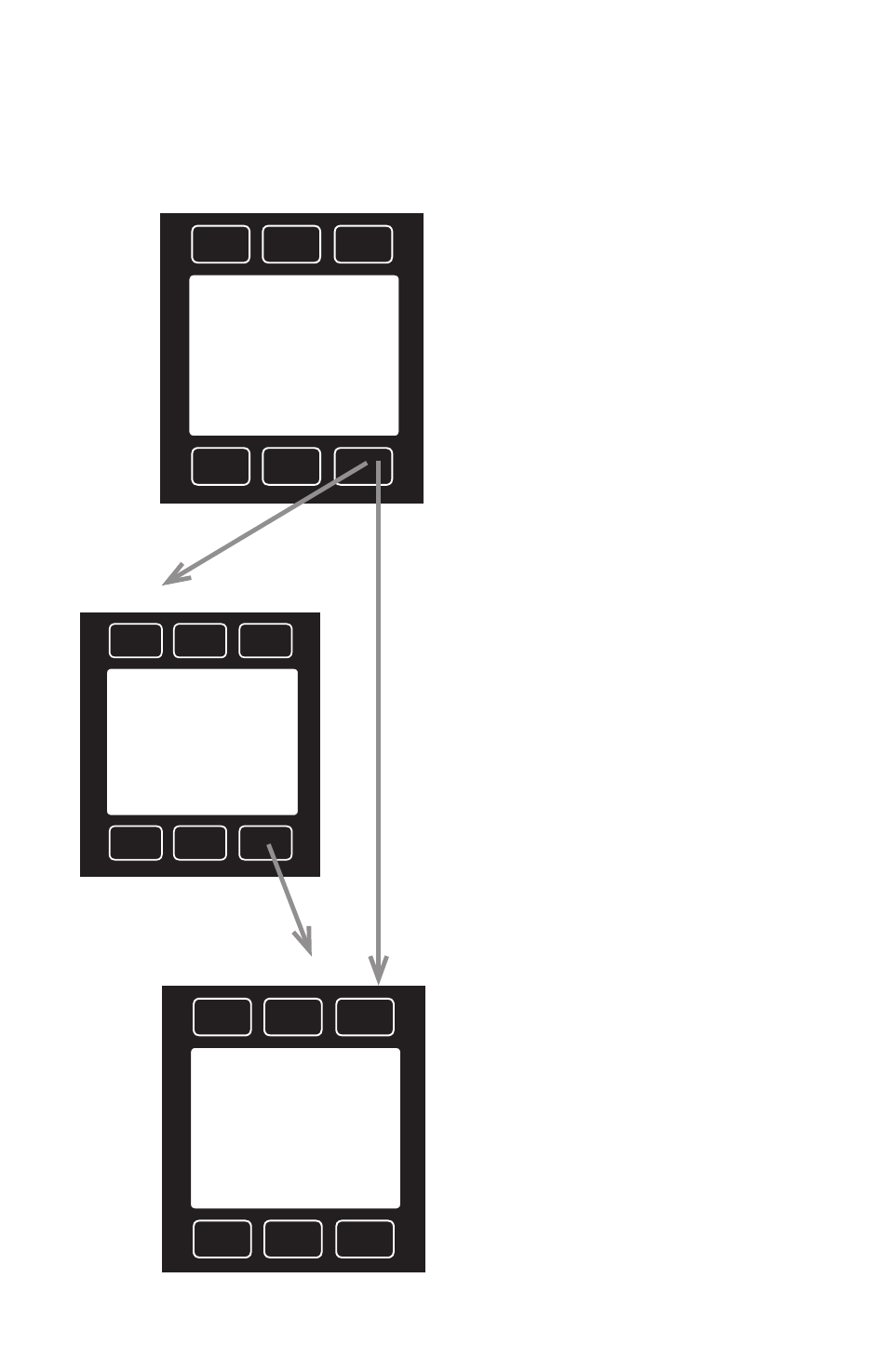

DISPLAYS AND MENUS LC AND LCR CONTROLLERS
(Displays and Menus for L Meters are shown beginning page 18.)
The device screen defaults to Main display as soon as power is applied to the controller.
Select Menu
From Select Menu you can interact
with your RS-232 / RS-485 settings,
read manufacturer’s data or access
the control set-up display.
Push MAIN to return to the Main display.
SETPT
MENU
CCM
+0.0
CCM
TOTAL/
TIMER
Totalizer (option only)
C ONTROL
SETUP
RS232
COMM
MFG
DATA
MAIN
MISC
Select Menu
#C
+21.50
+0.00
CCM MENU
SETPT
0.00
PSIA
+13.60
Main
BACK RESET
0000:00:00
CCM
+0.00
000.00
