Airedale SmartCool 11-233kW - Manual (Page 199)

Precision Air Conditioning SmartCool
TM
– D
Precision Air Conditioning
199
Installation, Maintenance and Commissioning Manual :6877419 02/2013
Unit Lifting
General Employ lifting specialists
Local codes and regulations relating to the lifting of this type of equipment should
be observed
Each chain/sling must be capable of lifting the whole unit
Lift the unit slowly and evenly
IMPORTANT Only use lifting points provided.
Do not use 1 chain between 2 lifting points to avoid load shift.
Ensure that chains/slings DO NOT crush the casework, coil or fan assemblies.
If the unit is dropped it should immediately be checked for damage and reported
to Airedale.
Airedale will accept no responsibility for mishandling during the positioning of
the equipment.
CAUTION Check the unit is as ordered, discrepancies or transit damage should be reported
to Airedale immediately.

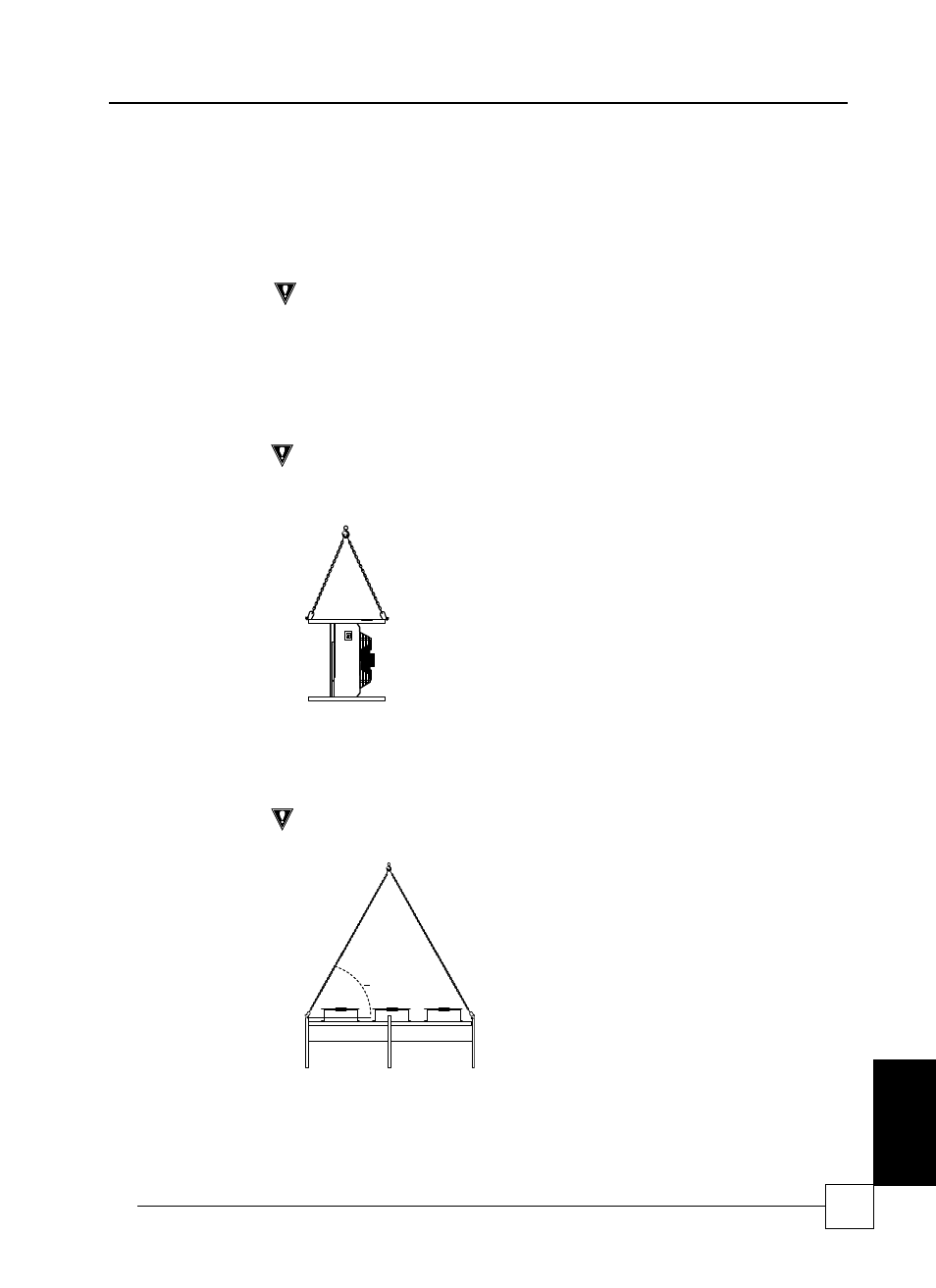

Horizontal Air Discharge The unit is delivered in horizontal air discharge configuration secured to a pallet. Where
possible the unit should be moved with the pallet in place.
Use 4 lifting eyes attached to 4 individual slings/chains
(supplied by others) and attach 2 to each top leg using
the holes provided as illustrated.
Vertical Air Discharge The unit is delivered in horizontal air discharge configuration (with the mains isolator and
fan speed controller already configured for vertical air discharge) secured to a pallet.
Where possible the unit should be moved with the pallet in place.
Before lifting into final position, the unit legs should be re-orientated, refer to instructions
provided at delivery.
CAUTION Care should be taken to ensure the unit does not sustain damage before it is lifted
into final position.
> 60°
Use 4 lifting eyes attached to 4 individual slings/chains
(supplied by others) and attach 1 to the top of each of the
4 corner legs using the holes provided as illustrated.
O
U
T
D
OOR
