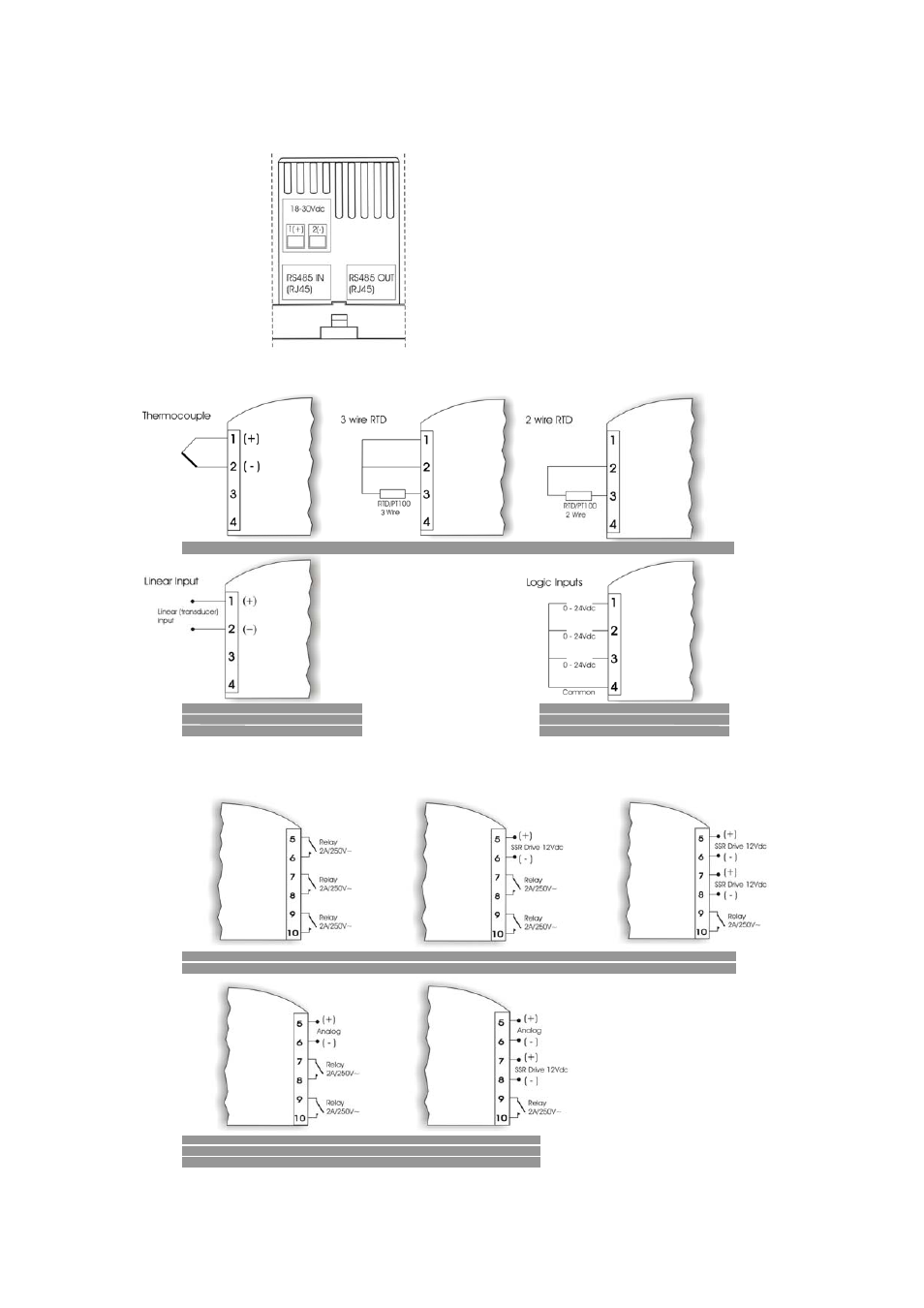

SUPPLY AND RS485 COMMUNICATIONS CONNECTIONS (BASE-UNIT)
INPUT OPTIONS (MODULE)
7P---0A000 7P---0A000 7P---0A000
7P---0B000 = 4-20mA
7P---0C000 = 0-5V
7P---0D000 = 0-10V
7L---0E000
OUTPUT OPTIONS (MODULE)
7P111-----
7L111----- 7P211-----
7L211----- 7P221-----
7L221-----
7PB11----- = 4-20mA
7PC11----- = 0-5V
7PD11----- = 0-10V
7PB21 = 4-20mA
7PC21 = 0-5V
7PD21 = 0-10V
