KEW6310 Demand measurement
KEW6310 − 22 −

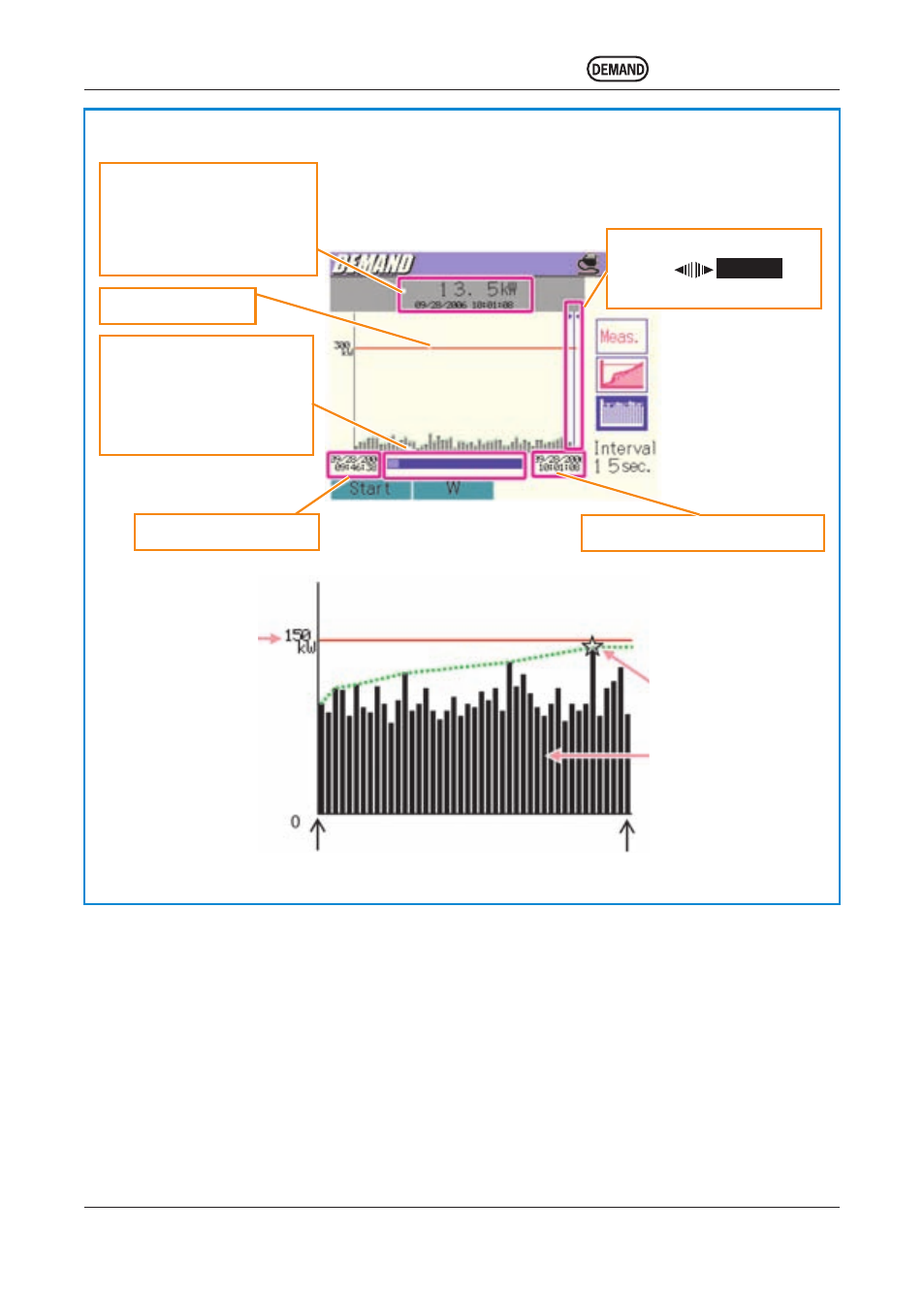

Demand change
Demand start
Target
value
Demand value
Demand termination
Max demand value
( d i s p l a y e d o n t h e
measurement screen)
(Elapsed time)
Cursor
Use the
Cursor Key
to move the cursors.
Most recent recorded time
Measured max demand with
time & date information
Demand value is displayed
with recorded time & date info
where cursor is placed.
Bar graph
White bar : Percentage of
hidden area
Blue bar: Percentage of the
present displayed area
Target demand
Recording start time
