Header of the saved data
A V G _ A 1 [ A ] _ 1
︸ ︸ ︸ ︸ ︸
① ② ③ ④ ⑤
* Saved data with no number at this space contains the sum of the measured values.

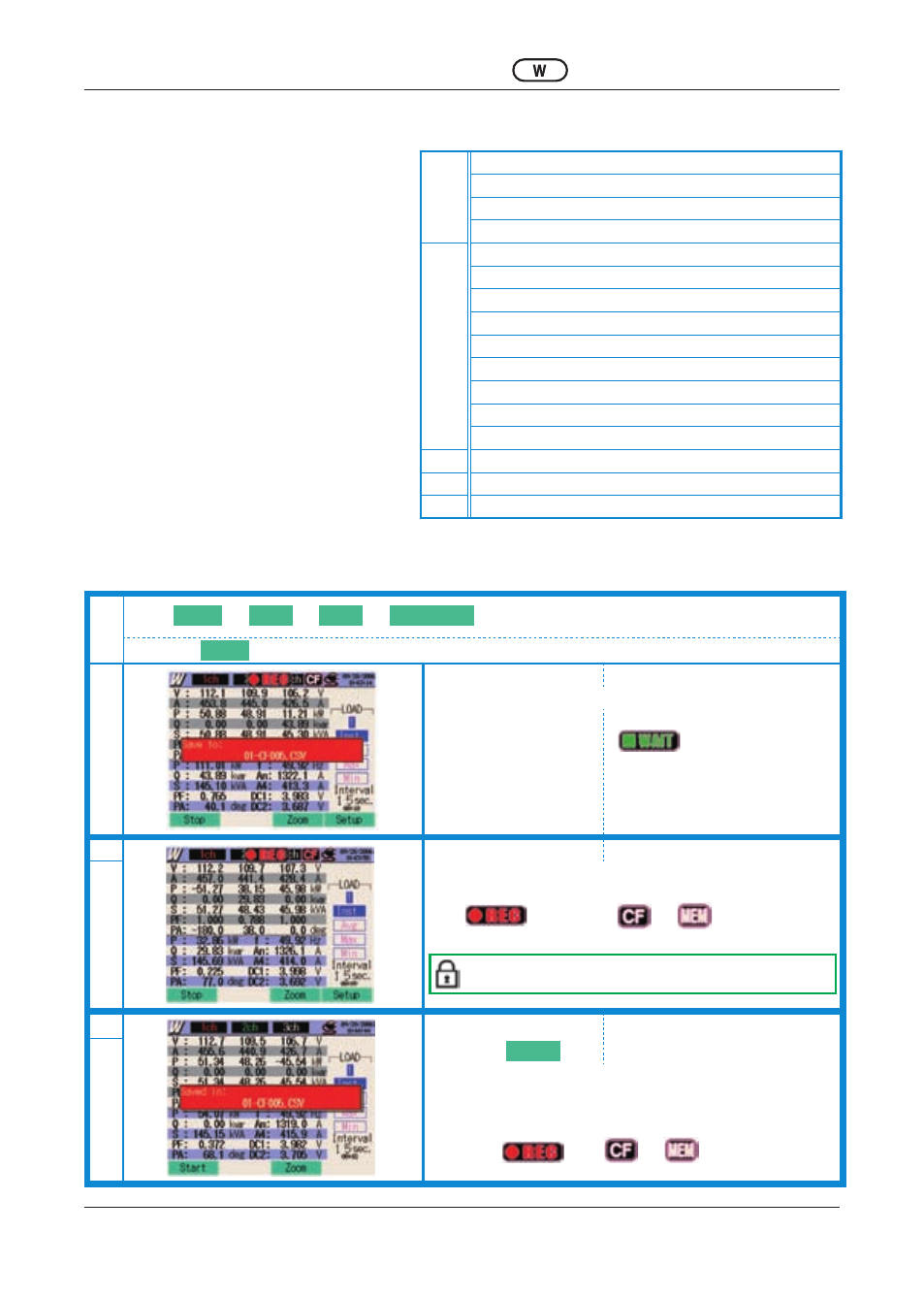

Saving instantaneous values
１
Press Start → Next → Next → Complete
to start recording after checking the
settings.
Press the Start Button at least 2 sec to start recording immediately.
Star
t
≪ Manual≫ ≪ Timer≫
File name for saving data is displayed.
▼
Data saving starts.
▼
appears and flashes
Status indicator LED flashes.
▼
Stand-by until preset time comes.
▼
２ Preset start time comes.
Saving
▼
Status indicator LED is ON.
flashes and or is displayed.
(flashes in red according to the preset interval)
No setting change can be made during data saving.
３ ▼ ▼
Stop
Press Stop . Preset termination time comes.
▼
File name for saving data is displayed.
Status indicator LED goes off.
and or goes off.
KEW6310
KEW6310 Instantaneous value measurement
− 16 −
①
INST ： Instantaneous value
AVG ： Average value
MAX ： Max value
MIN ： Min value
②
V ： Voltage per phase
A ： Current per phase
f ： Frequency
P ： Active power
Q ： Reactive power
S ： Apparent power
PF ： Power factor
PA ： Phase angle
DC ： Analogue input voltage
③ CH number ： * 1 ∼ 4
④ Unit
⑤ System
