Chapter 12. ADTRAN Utilities

12-2

ATLAS 810

PLUS

User Manual

61200266L1-1

SysLog GUI

Figure 12-1 on page 12-2 shows the SysLog Host GUI. The conventional
Menu Bar is described below beginning on page 12-3 (see also Figure 12-2).
Other features are described here.

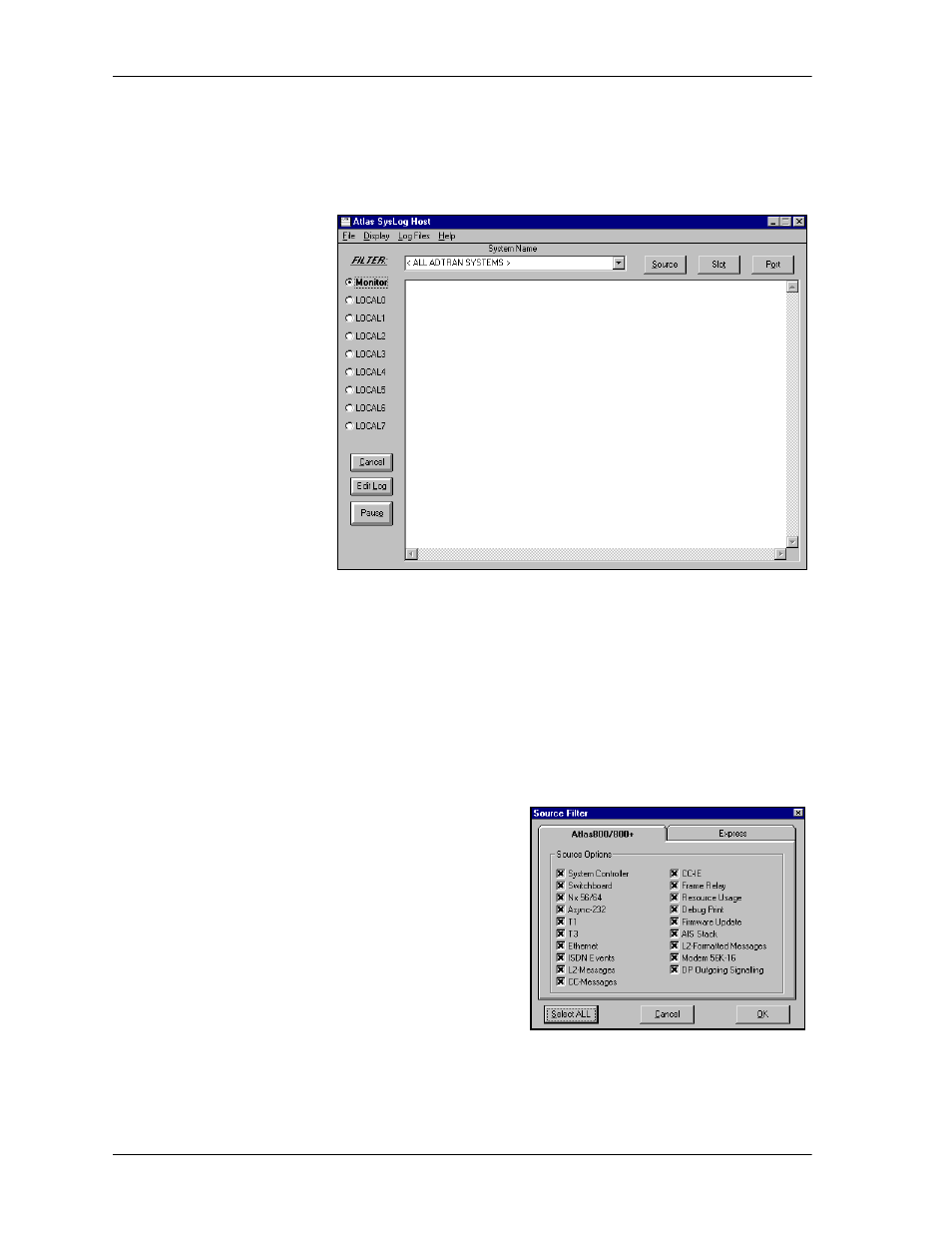

Figure 12-1. ATLAS SysLog Host GUI

Monitor

The

Monitor

feature allows all SysLog messages to be pre-filtered by

Sys-

tem Name, Source, Slot

and

Port

before displaying these messages to the

user and logging the message to the pre-designated monitor log file.

System Name

Select from pull-down menu.

Source

Provides var-
ious filter op-
tions for the
ATLAS.

Slot

Select applicable slots (0—8).

Port

Select applicable port range.
