Chapter 9. Dial Plan Terminal Menu
9-28 ATLAS 810 PLUS User Manual 61200266L1-1

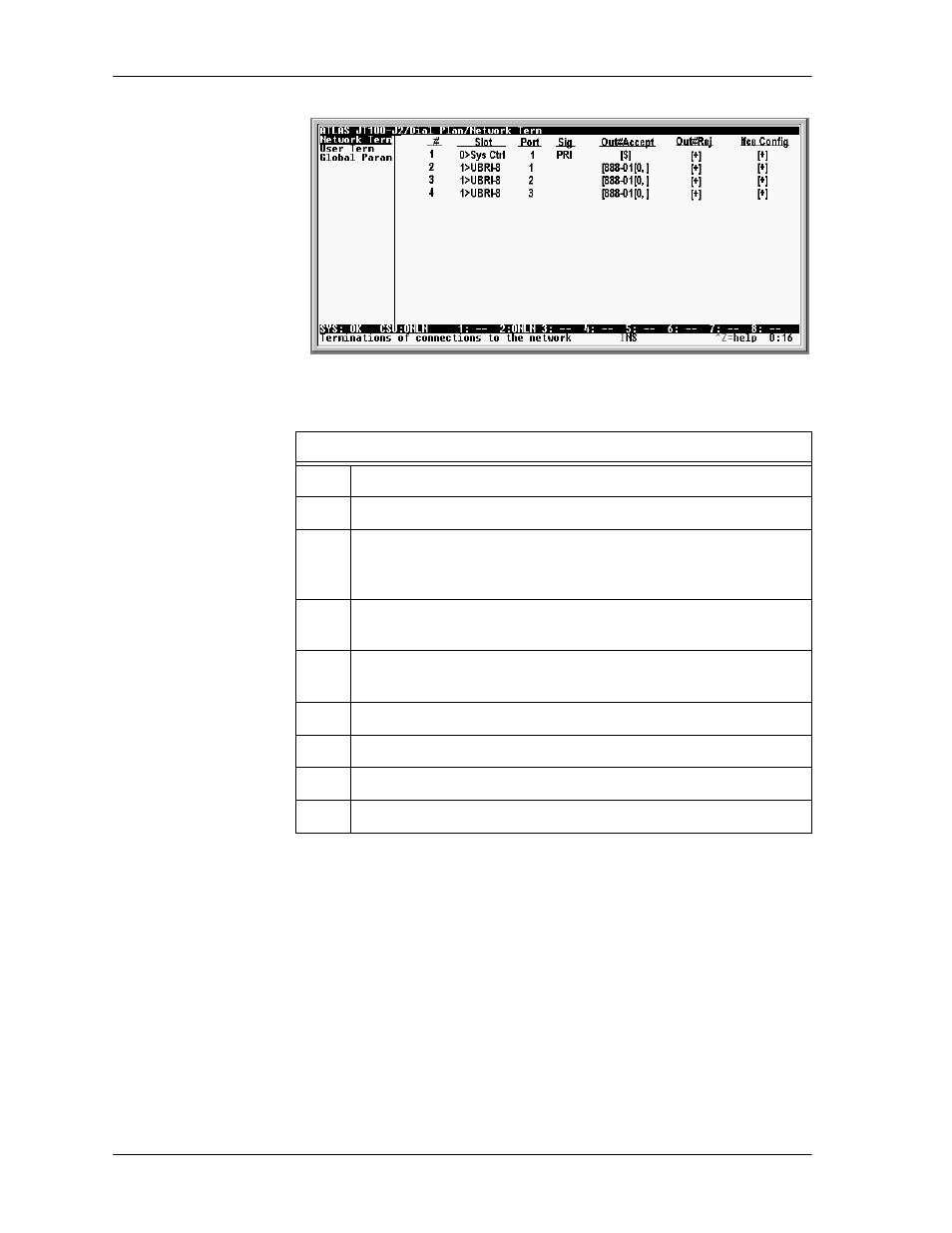

Figure 9-6. Completed Network Map
When you complete the User Term Dial Plan, it appears as shown in Figure
9-7.
Setting User Term Connections
Step Action
1 Navigate to User Term.
2
Enter connections for BRI D,E, and F in the same manner as BRI
A, B, and C: use the copy (C) and paste (P) commands to enter
the appropriate Out#Accept and Out#Reject numbers.
3
Ensure that the SPID and Phone entries under Ifce Config match
the SPID and phone numbers of the attached equipment.
4
Enter the connection for T1-A: select RBS under Sig, and enter
1-900-$ under Out#Reject.
5 Set Trunk Type (under Ifce Config) to Analog.
6 Set Signaling Method to E&M Wink .
7 Set DID (under Ifce Config) to enabled .
8 Set the DID Digits Transferred to 4 .
