2.7.7

LOAD CONNECTION USING REMOTE SENSING

Figure 2-6 shows a typical configuration using remote sensing and a grounded load; Figure 2-7
shows a typical configuration using remote sensing with an isolated (“floating”) load.

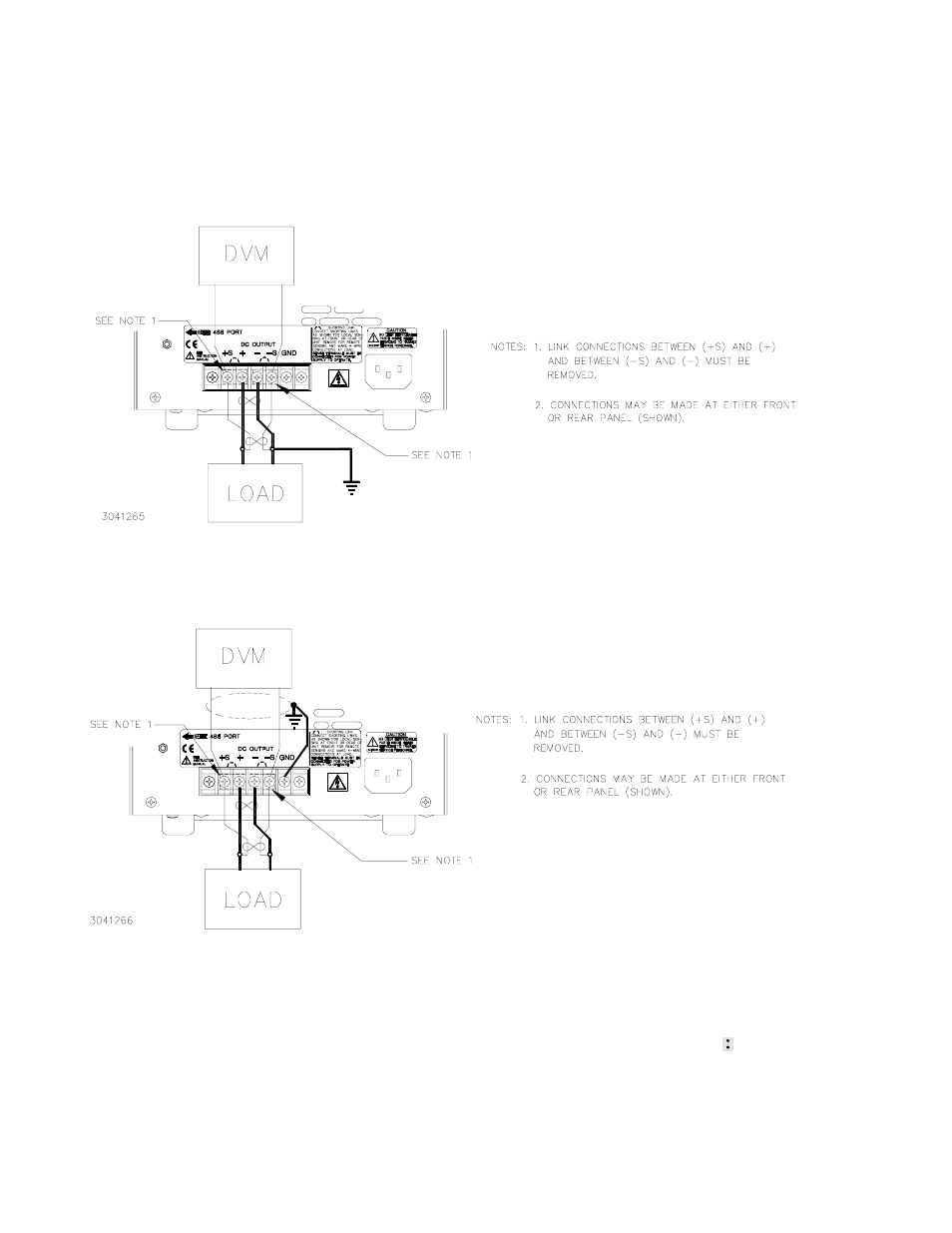

FIGURE 2-6. GROUNDED LOAD CONNECTIONS, REMOTE SENSING

FIGURE 2-7. ISOLATED LOAD CONNECTIONS, REMOTE SENSING

2.8

OPERATING CONFIGURATION

The operating configuration can be determined by pressing MENU (with the unit in command
entry status) until the LCD reads

ABC-XXXX yymmdd-nnn, Vz.z

(XXXX indicates the model,

e.g., for the ABC 125-1DM, top line reads 1251).The calibration date (yy = year, mm = month,
dd = day) is followed by a 3-digit number (nnn), followed by the firmware version number (Vz.z).
