4

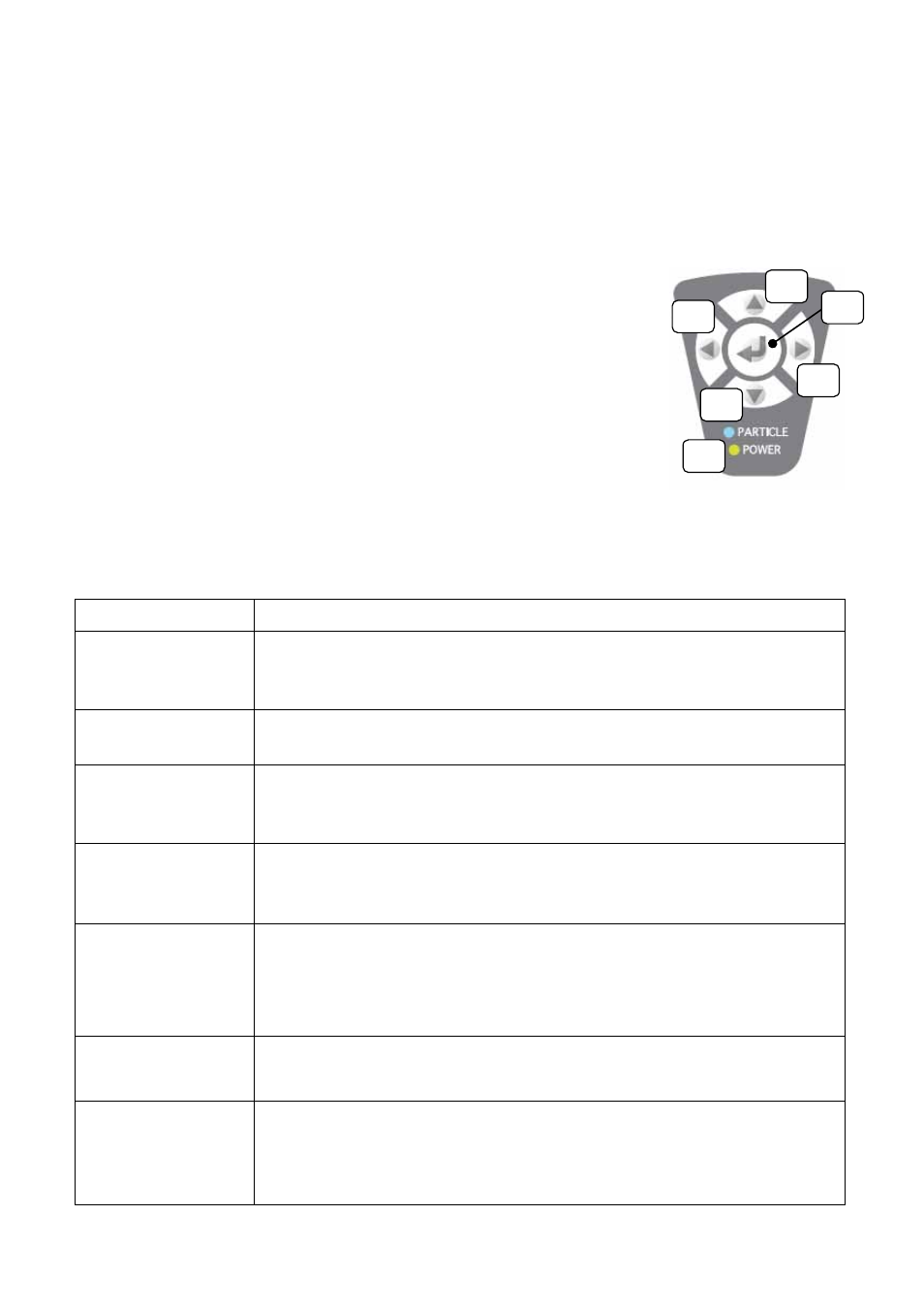

The CPC can be operated by using the keypad provided on the grip at the center of the CPC.
1. [UP] key
Used for operations such as; canceling warm-up, selecting/setting items, and changing values.
2. [LEFT] key
Used for operations such as; selecting the 【PRINT】 mode, returning to the previous screen, and
returning to the previous digit when setting values.
3. [RIGHT] key
Used for operations such as; selecting the 【PRINT】 mode, and
proceeding to the next digit when setting values.
4. [DOWN] key
Used for operations such as; selecting/setting items, and changing values.
5. [ENTER] key
Used for operations such as; entering a setting, and
starting the
6. LED
POWER---Green light is turned on while power is on.
PARTICLE---Red light blinks on detecting particles.
Name Function
Inlet
Inlet for the sample air.
For cleaning the optical system, operatate the instrument with the filter
attached to the inlet.
Keypad
Used for performing various operations.
Power Switch
Turns ON/OFF the power.
The power will be turned ON/OFF by pressing the switch.
The switch cannot be operated during a measurement in each mode.
AC Adapter Jack
The supplied AC adapter (MODEL S-8458) must be used.
When the AC adapter is connected, even if the batteries are installed, the
power will be supplied from the AC adapter.
USB Port
Used when connecting the CPC with the PC to perform operations such as
data transfer and program writing. After the supplied software is installed
on the PC, connect the CPC and the PC with the supplied communication
cable.
* A printer cannot be connected to this port.
Printer Output Port
Used when outputting stored data from an optional printer.
Alcohol Cartridge
Insertion Opening
Before performing a measurement, insert the alcohol-filled cartridge into
this insertion opening. When the instrument is not used (or stored), the
opening must be covered with a storage cap to prevent dust or dirt from
getting into the optical system.
2
3
1
4
5
6
