MACROTESTG3 - COMBIG3
EN - 17
1.

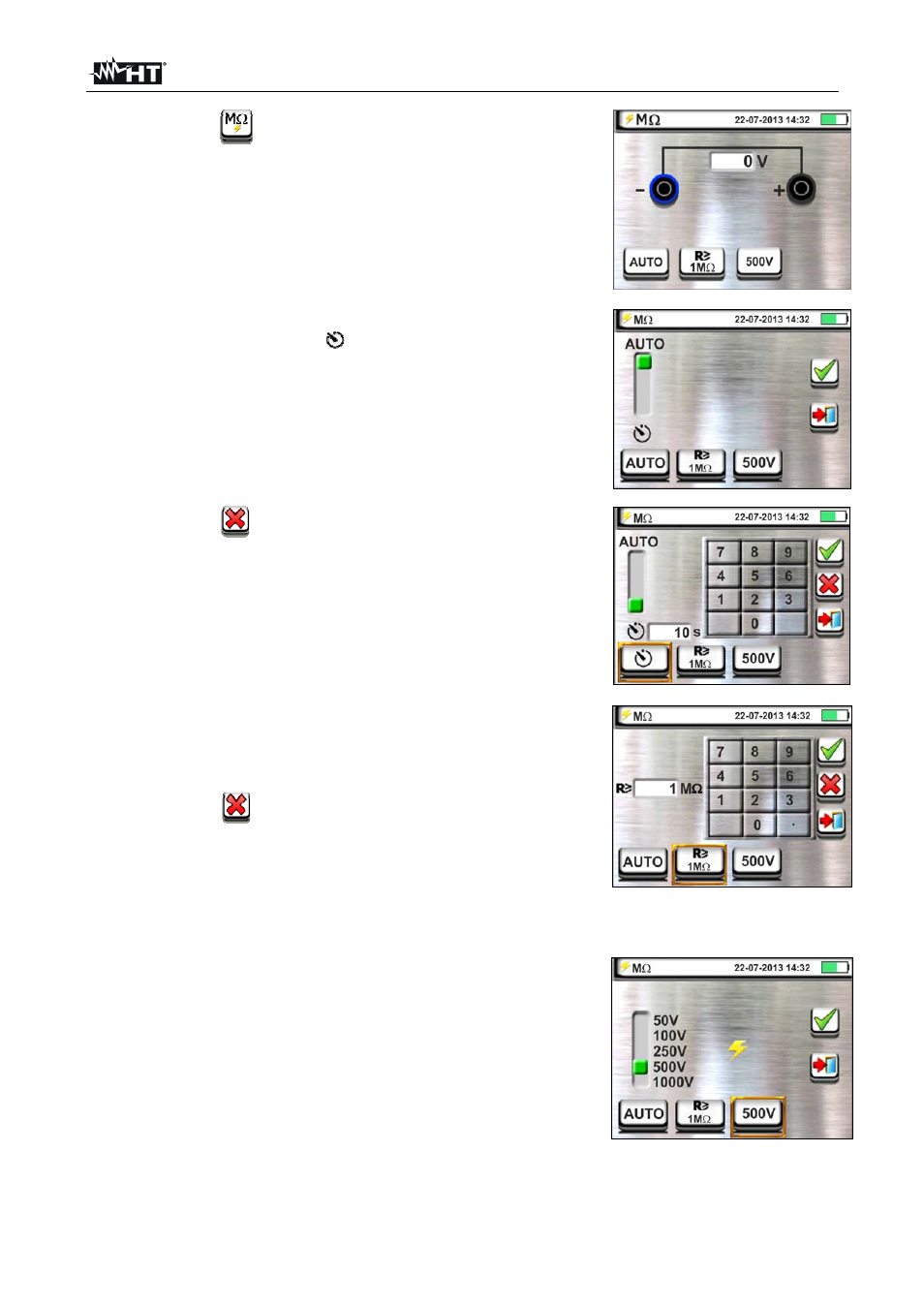

Touch the icon. The screen to the side appears on
the display. The instrument automatically carries out the
test for the presence of voltage between the inputs
(shown on the display) and blocks the test in case of
voltage higher than 10V
Touch the “AUTO” icon to set the measuring mode. The
following screen appears on the display:
2. Move the slide bar reference in the positions "AUTO"
(Automatic mode) or " " (Timer mode). Confirm the
choice by going back to the previous screen.
If Timer mode is selected, the following screen is
shown:
3.
Touch the icon to zero the value in the Timer field
and use the virtual keyboard to set the value in seconds
between 1s and 999s. Confirm the choice by going
back to the initial measurement screen.
4. Touch the icon "R xx" to set the minimum limit value
of the insulation resistance on which the instrument
makes the comparison with the measured value. The
screen to the side appears on the display.
Touch the icon to zero the value in the “R ” field.
Use the virtual keyboard to set the value between
0.01M
 and 999M.
Confirm the choice by going back to the initial
measurement screen. Note the presence of the set limit
value.
5. Touch the "xxxxV" icon to set the test DC voltage in the
insulation measurement. The screen to the side
appears on the display.
Move the slide bar reference to the desired value for
test voltage by choosing among 50, 100, 250, 500,
1000VDC.
Confirm the choice by going back to the initial
measurement screen. Note the presence of the set limit
value.
