Long Memory Data Capture (GDS-1000A-U Only)

47

L

ONG

M

EMORY

D

ATA

C

APTURE

(GDS-1000A-U

O

NLY

)

The Long Memory Data Capture function in Freewave directly
transfers long memory digital waveform data (up to 2M) from the
oscilloscope to the PC. Captured digital waveform data is stored in
CSV format. CSV is compatible with most spreadsheet applications.
The Data Capture function is used to:

View oscilloscope waveforms

Save waveform data

Viewing Long Memory Oscilloscope
Waveforms

1. Activate Freewave and connect the oscilloscope to the PC. For

details, see page19.

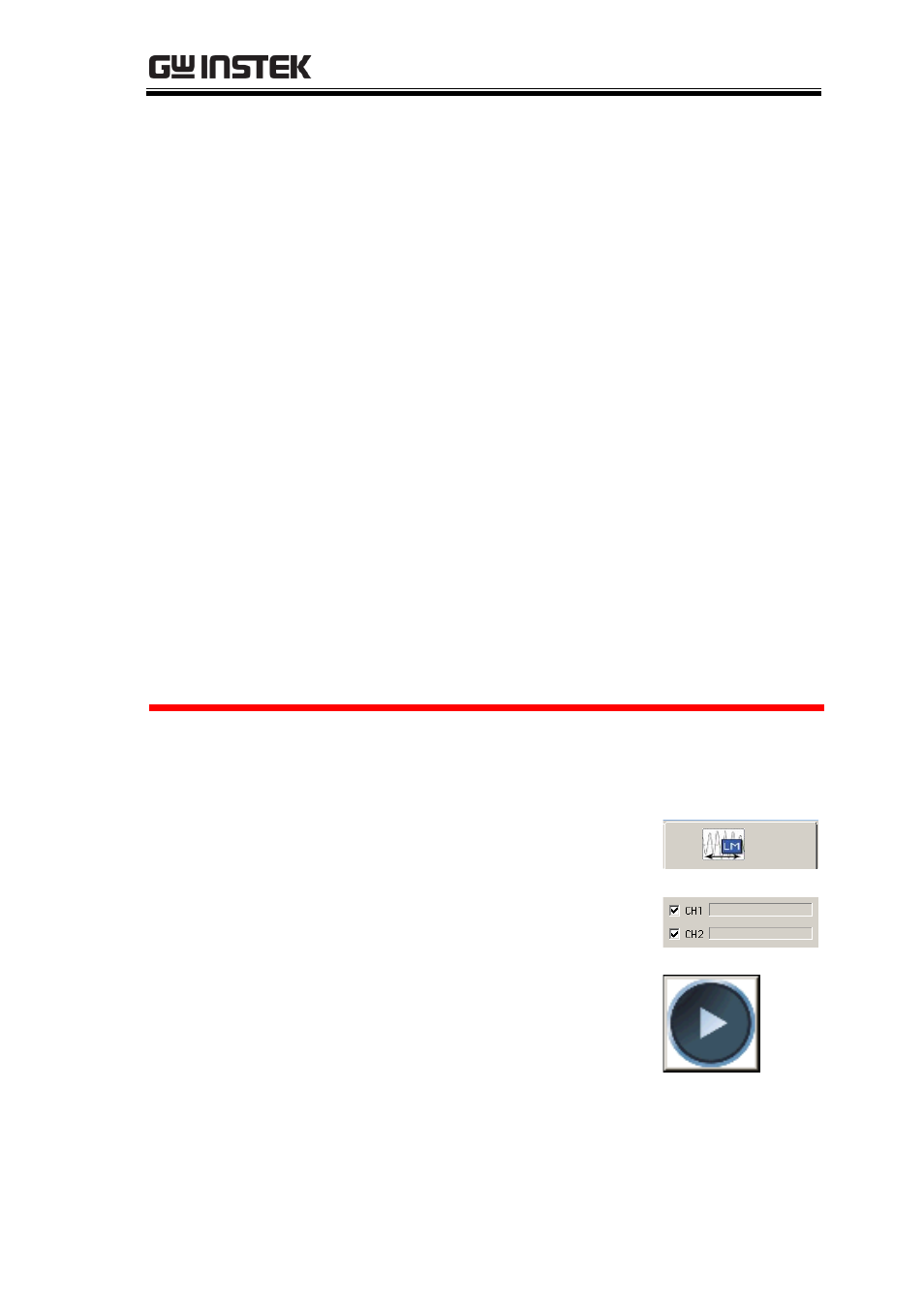

2. Select the Long Memory Data tab (last tab).

3. Choose the input channel(s).

4. Press the play icon at the bottom of the screen.

5. Freewave will start capturing data as soon as a waveform is

triggered. A dialog box will ask to input a signal to CH1/CH2.
