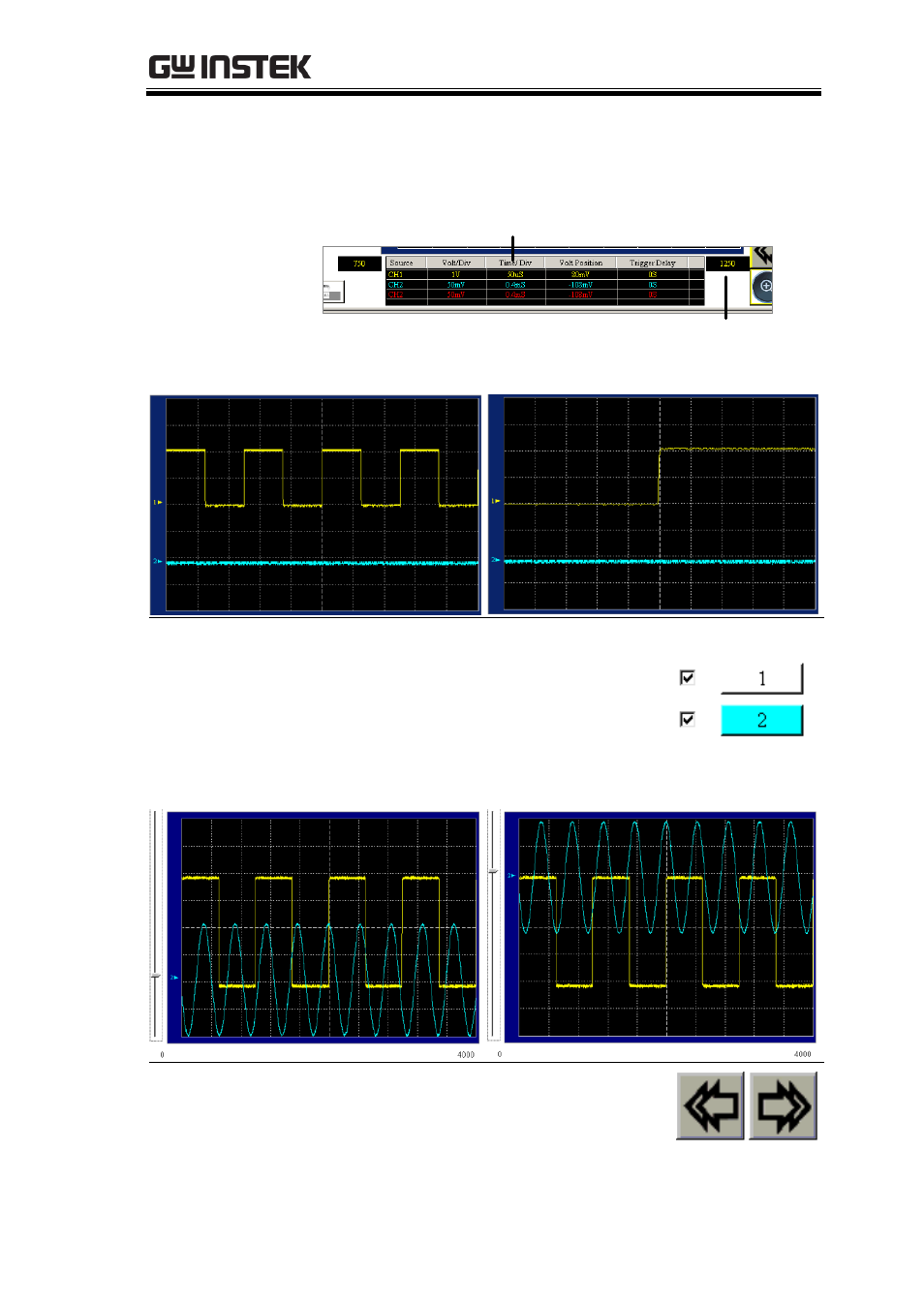

Short Memory Data Capture

37

The on-screen waveform data points will be shown
under the oscilloscope display. Likewise the
Time/Division rate will also be updated.

Waveform Data points

Time/Div

Default (4,000 memory points)

Zoomed (1,250 memory points)

Vertically moving
a waveform

Click on the waveform ID and then
grab the short bar on the left side of
the display. Move the bar up or
down to change the waveform
position vertically.

(No.2 selected)

No.2 waveform moving down

No.2 waveform moving up

Horizontally
moving a
waveform

(This operation is available only
when the waveform is zoomed in.)
Click on the Left or Right icon to
move the waveform horizontally.
