Monitoring the Oscilloscope

27

Viewing the Oscilloscope Display Contents

1. Connect the oscilloscope to the PC and activate Freewave. For

details, see page19.

2. Select the Image tab (second from the left).

3. Click on the Play button in the control panel.

The oscilloscope’s display contents will appear
on-screen.

Note

The GDS-1000-U/1000A-U will continually send a
screen shot to the PC, while the GDS-3000 will only
send an initial screen shot once when the PLAY button
is clicked.

Pausing the
display

To stop updating the display, click
on the Pause button in the control
panel.

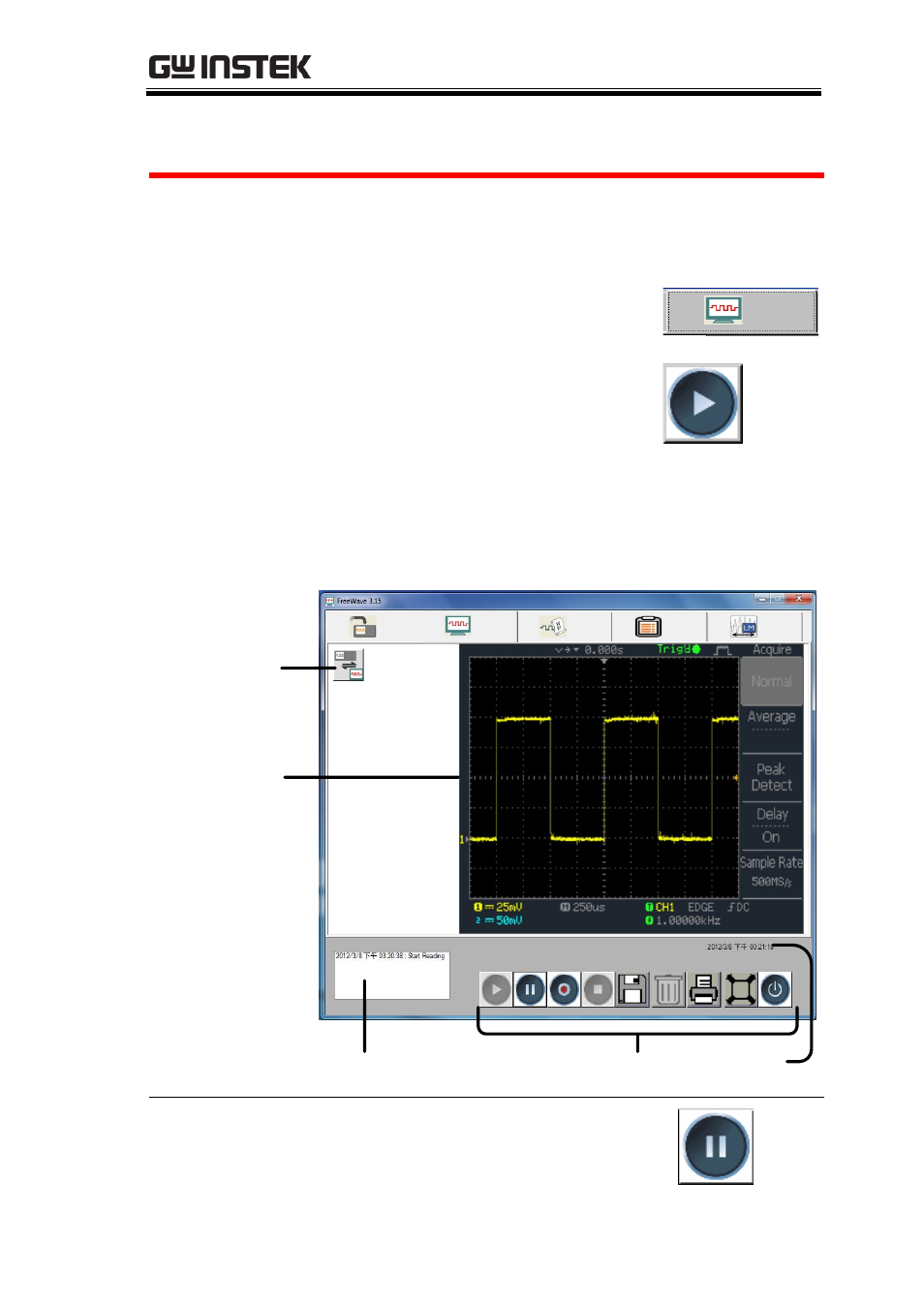

Operation log

Control panel

Date

Oscilloscope

display

View button
