Short Memory Data Capture

35

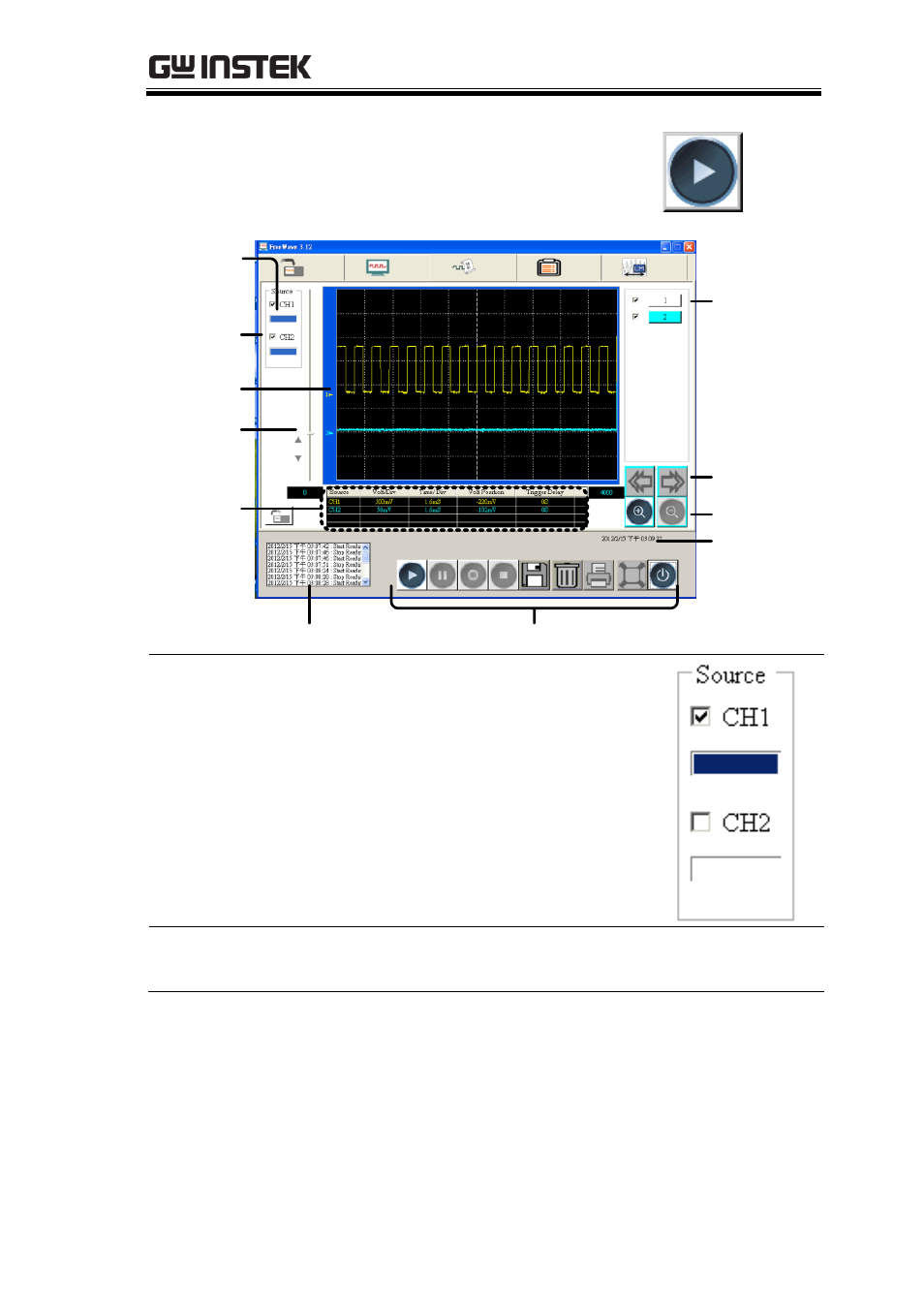

4. Click on the Play button in the control panel.

Freewave captures the waveform data for a
single period and shows them in the screen.

Operation log

Control panel

Date

Waveforms

Vertical

position bar

Zoom icon

Horizontal

position icon

Channel

Progress

bar

Waveform
identification

Waveform

data points

Source

channels

Adding a new
waveform

Select a new channel (if necessary)
and click on the Play button again.
Each time the Play button is
pressed a new waveform is
captured and placed in the
Waveform Identification list.

Note:

A maximum of only 10 waveforms can be added to the
waveform identification list.
