MEASUREMENT

33

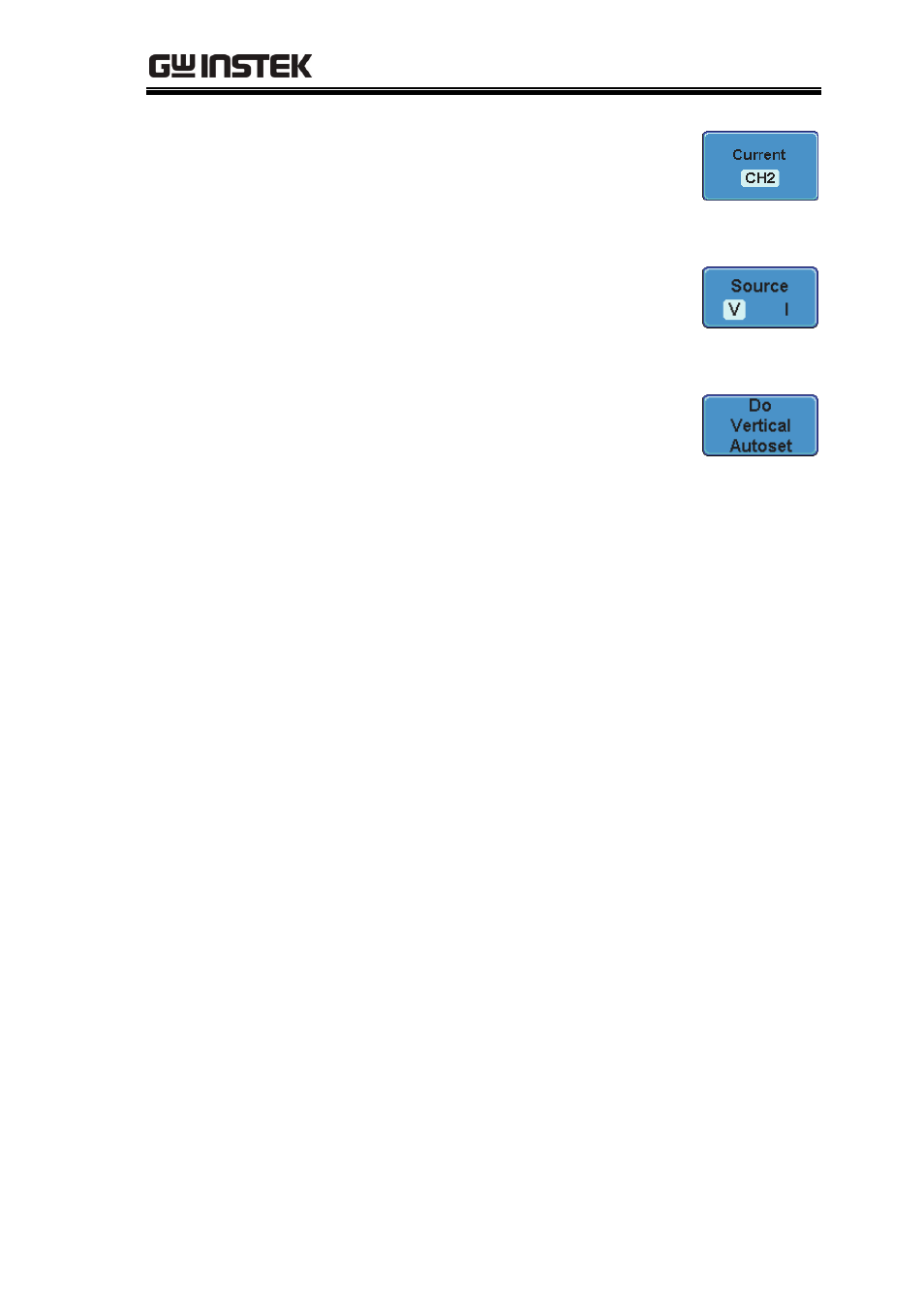

7. Choose the Current input (source)

from the side menu.

Range

CH1~4

8. Press Source from the bottom menu

to toggle the ripple source type.

Source

V, I

9. To automatically set the vertical

scale, press Do Vertical Autoset.
This will offset the DC component
to maximize the accuracy of the
ripple measurement.
