Harmonics Display options
Background Harmonic measurements can be displayed on-
screen in graph or table format. When in graph
format, a harmonic must be chosen for individual
measurements.

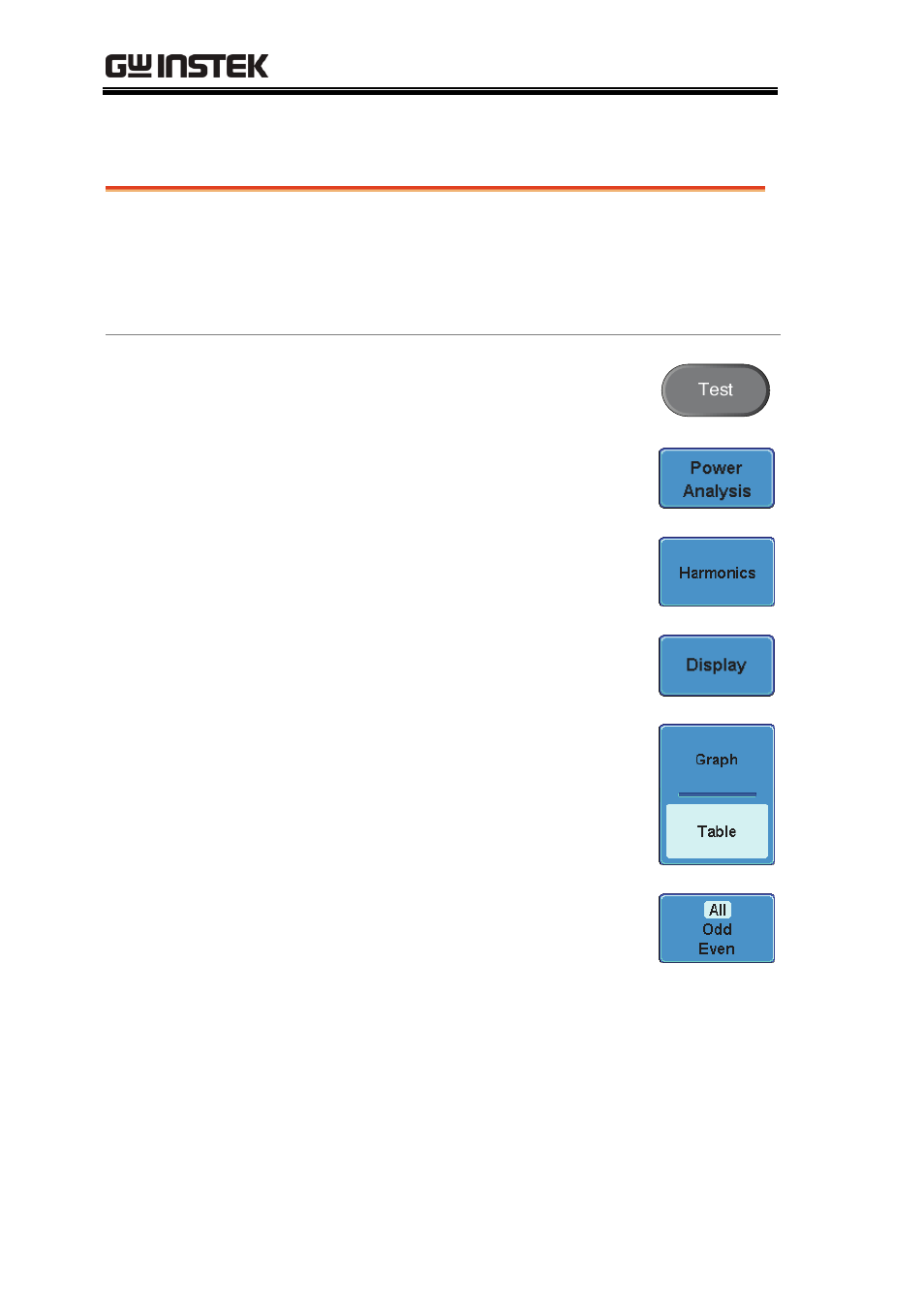

Panel operation 1. Press the Test key.
2. Press Power Analysis from the
bottom menu.
3. Press Harmonics from the side
menu.
4. Press Display from the lower menu.
5. Choose to display harmonic
measurements as a graph or as a
table.
Range Table, Graph
6. Toggle between viewing All, Odd
or Even harmonics.
Harmonic All, Odd, Even
