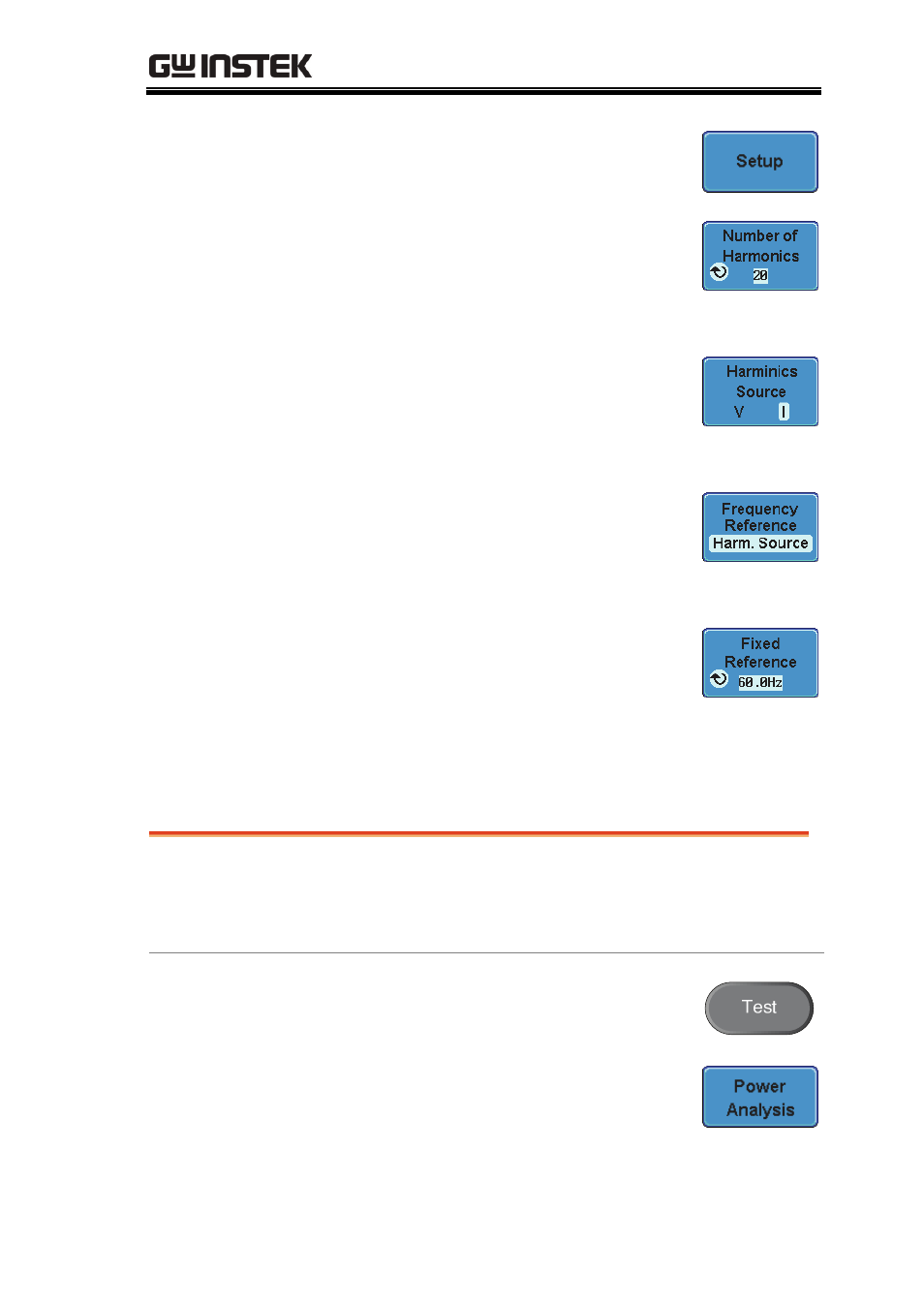

background image

MEASUREMENT

25

4. Press Setup from the lower menu.

5. Set the Number of Harmonics from

the side menu.

Range

20-~400

6. Choose the Harmonics Source.

Source

V, I

7. Set the Frequency Reference.

Reference

V, I, Harmonics source, Fixed

8. If Fixed was set as the frequency

reference, set the Fixed Reference
frequency.

Reference

10Hz~400Hz

Harmonics Setup – IEC

Background

The following Setup menu is only applicable when
IEC is chosen as the testing standard. See page 24
for details.

Panel operation

1. Press the Test key.

2. Press Power Analysis from the

bottom menu.
