Impedance Matching the probe output
(typically 1MΩ)
4. Connect and turn on the power source when all
the connections have been made and
configured.

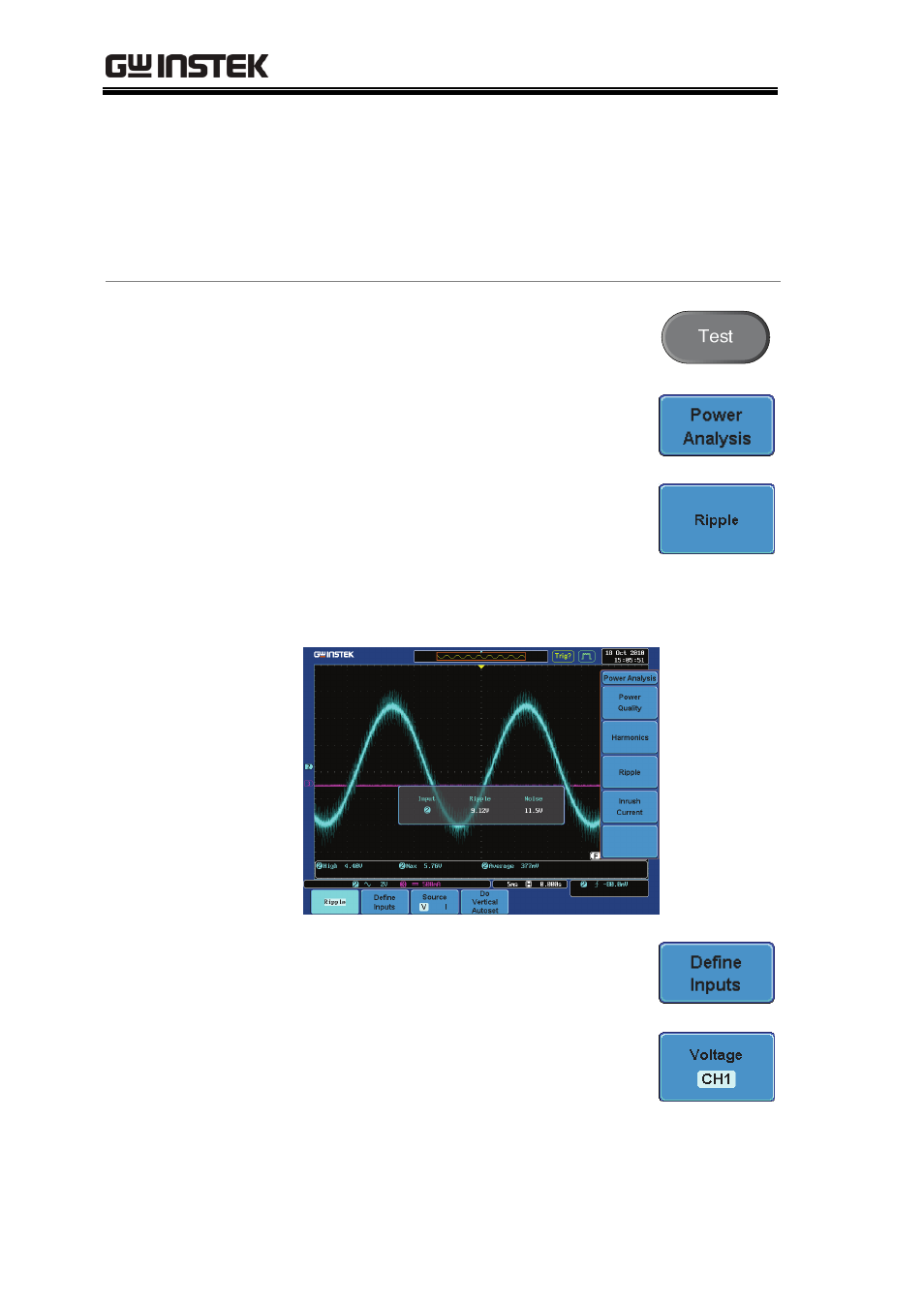

Panel operation 1. Press the Test key.
2. Press Power Analysis from the
bottom menu.
3. Press Ripple from the side menu.
4. The automatic measurements for Ripple appear
(when using default settings).
Example
5. Press Define Inputs from the lower
menu.
6. Choose the Voltage input (source)
from the side menu.
Range CH1~4
