GOS-6112 OSCILLOSCOPE

USER MANUAL

 29 

(38)EXT—This BNC socket is the external trigger signal input.

In dual X-Y mode, signals at this input are used for the X deflection.

Pressing the TRIG. SOURCE (29) pushbutton until the information of

“EXT, slope, coupling” is shown up in the readout and the TRIG.

SOURCE “EXT” LED is lighted, switches the input on.

The outer (ground) connection is galvanically connected to the

instrument ground and consequently to the safety earth contact of the

line/mains plug.

The maximum input voltages of the instrument input terminals and probe

input terminals are listed in the section of 3-6.Withstanding voltage of

Input terminals”. Do not apply voltage higher than the limit.

GOS-6112 OSCILLOSCOPE

USER MANUAL

 30 

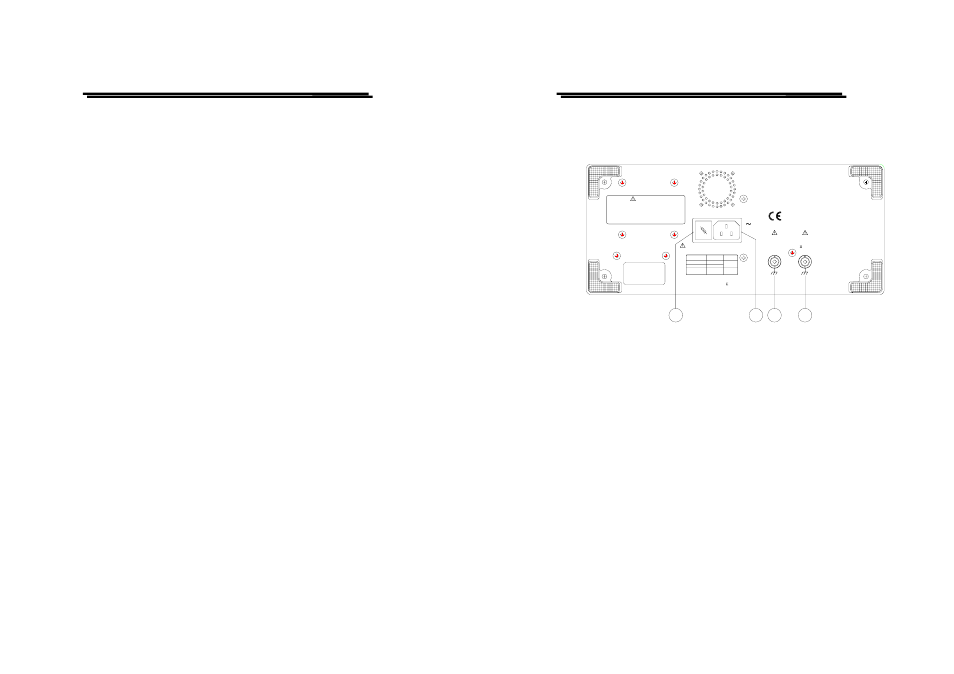

4-2.Rear Panel

The rear panel provides input power and additional signal connections.

30Vpk MAX.

LINE VOLTAGE

POWER MAX. 70 WATTS, 90VA

IEC1010 250V CAT

ENSURE THE POWER IS REMOVED FROM

THE INSTRUMENT BEFORE REPLACING THE FUSE

39

120V

230V

110V

SELECTION

25mV/DIV

40

250V

T 1A

FUSE

250V

T 0.4A

108~132V

207~250V

90~110V

RANGE

(50/60Hz)

41

42

INTO 50

OUTPUT

CAT

W

INPUT

120

230

TO AVOID ELECTRIC SHOCK THE POWER CORD PROTECTIVE GROUNDING

QUALIFIED PERSONNEL.

NO OPERATOR SERVICEABLE COMPONENTS INSIDE. DO NOT REMOVE

FOR CONTINUED FIRE PROTECTION. REPLACE ONLY WITH SPECIFIED

CONDUCTOR MUST BE CONNECTED TO GROUND.

WARNING

COVERS. REFER SERVICING TO

TYPE AND RATED FUSE.

100

AC

TRIGGER SIGNAL

Z-AXIS

(39)Line voltage selector and input fuse holder—Select power source

and contain the primary power fuse

The fuse rating is shown in the section of 3-2 Checking the line

voltage.

(40)AC power input connector

Connect the AC power cord to the power supply of instrument, the

power cord protective-ground connection is connected to the exposed

metal part of the instrument. The power cord must be connected to a

proper grounded source for electrical-shock protection.

(41)TRIGGER SIGNAL Output—BNC socket

The signal selected by the TRIG. SOURCE (29) is available. This

output may be used to connect to a frequency counter or other

instrument.
